Description
Overview

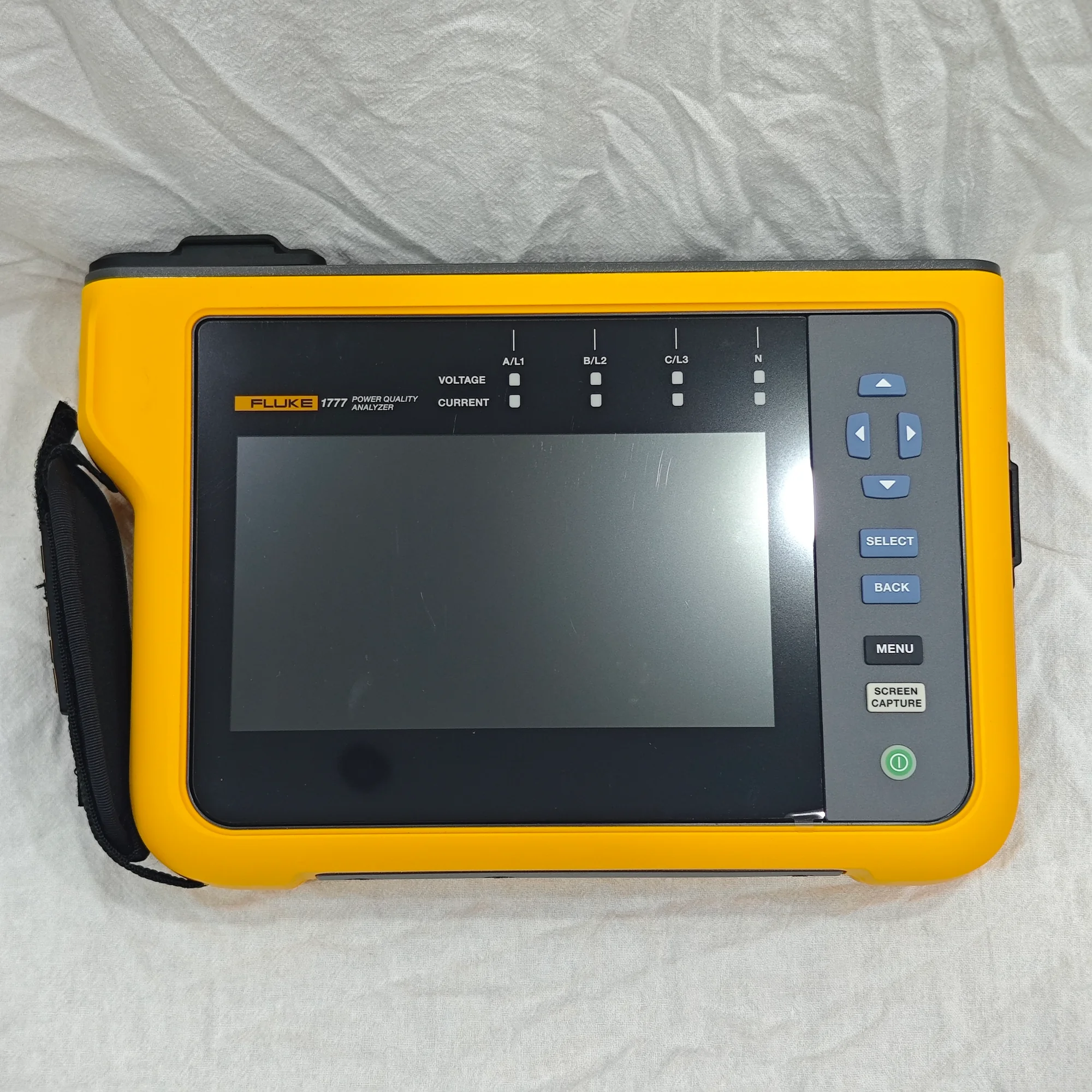

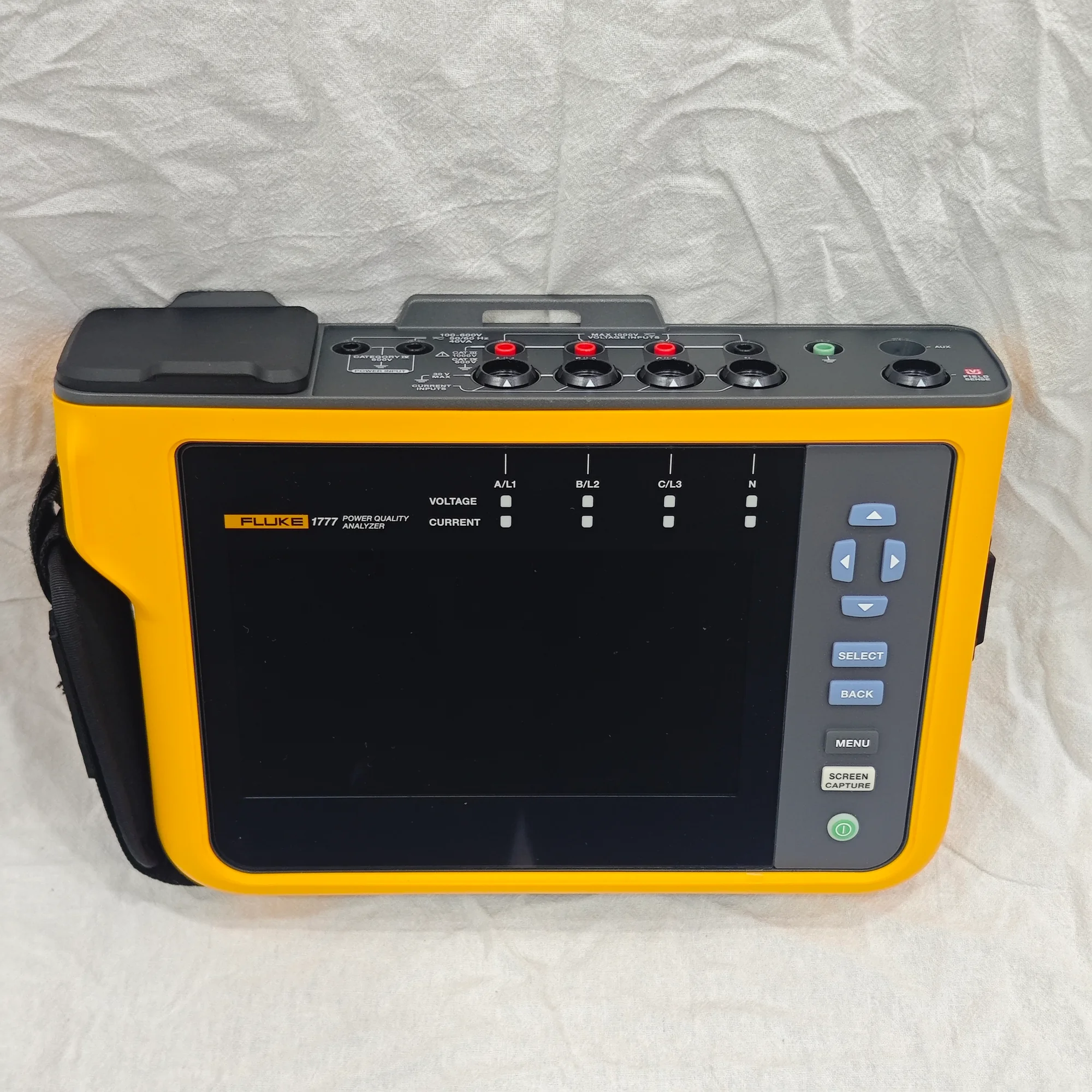

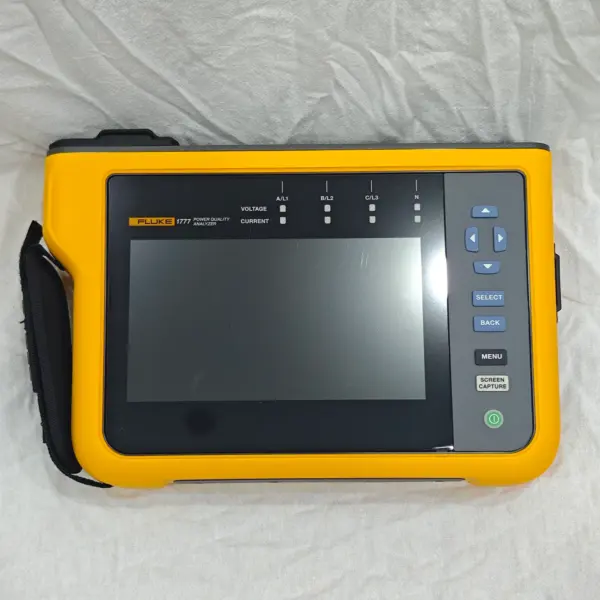

The Fluke 1777 Three-Phase Power Quality Analyzer is a professional power quality troubleshooting, logging, and analysis instrument designed for electrical engineers, maintenance teams, facility managers, commissioning specialists, and industrial service providers. It belongs to the Fluke 1770 Series, a family of three-phase power quality analyzers built to simplify power quality studies, capture critical events, and provide clear measurement data for corrective action planning. Fluke describes the 1770 Series as combining automatic measurements, guided setup, straightforward operation, and a simplified reporting platform for power quality troubleshooting and logging.
For industrial and commercial electrical systems, intermittent power quality problems can be difficult to diagnose because events such as dips, swells, interruptions, harmonics, inrush current, and fast transients may occur unexpectedly. The Fluke 1777 helps users capture and review these events with high-speed transient recording, harmonic measurement, and power quality logging. According to Fluke, the 1770 Series can capture fast transients up to 8 kV, harmonics up to 30 kHz, dips and swells, voltage measurements, current measurements, and power measurements.
The Fluke 1777 is positioned for advanced power quality applications where high-speed transient visibility is important. Fluke states that the Fluke 1777 has 20 MHz sampling capability for capturing the fastest transients in high detail, while the broader 1770 Series also provides large-screen viewing of waveforms, transients, and higher-frequency harmonics. This makes the Fluke 1777 suitable for users who need a field-ready analyzer for troubleshooting unexplained equipment failures, evaluating electrical system health, documenting power quality issues, and supporting preventive maintenance programs.
Key Features
- Automatically measures power and power quality parameters for faster setup and more consistent data collection.
- Captures more than 500 power quality parameters by default with guided setup for the electrical system being tested.
- Captures high-speed transients up to 8 kV and supports harmonic analysis up to 30 kHz.
- Fluke 1777 transient sampling supports 1 MS/s and 20 MS/s, according to the official product specification.
- 2-in-1 instrument design combines a power quality meter function with power quality logging and analysis capability.
- 7-inch TFT display with 1024 x 600 resolution and capacitive touch operation, including support for PPE gloves up to 1000 V ARC 4 rating.
- CAT IV 600 V / CAT III 1000 V measurement safety rating.
- Includes Fluke Energy Analyze Plus software for downloading, analyzing, tracking, and reporting power quality and energy data.
- Supports data transfer through USB memory stick, WiFi, LTE, wired Ethernet, or USB cable depending on configuration and regional module availability.
- Installed 32 GB microSD card for Fluke 1777 data storage.
Applications
The Fluke 1777 Power Quality Analyzer is designed for advanced electrical power quality troubleshooting and analysis in industrial, commercial, utility, and facility environments. It can be used for power quality studies, energy surveys, load studies, harmonic surveys, mains signaling monitoring, nuisance circuit breaker tripping investigations, power utility power quality surveys, and discovery of equipment failures caused by transient events. Fluke’s application comparison specifically lists energy surveys and load testing, harmonic surveys, nuisance circuit breaker tripping, electric utility power quality surveys, discovery of equipment failures caused by 8 kV microsecond transients, and discovery of equipment failures caused by 8 kV nanosecond transients for the 1777 model.
Typical buyers include maintenance departments investigating recurring downtime, electrical contractors documenting site power quality, commissioning teams validating electrical installations, and engineering teams comparing measured data against standards. With Energy Analyze Plus, users can generate reports aligned with standards such as EN 50160, IEEE 519, GOST 33073, and IEC 61000-2-2, and export data in formats including PQDIF, NeQual-compatible format, or CSV.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Fluke |
| Model | 1777 |
| Product Type | Three-Phase Power Quality Analyzer |
| Series | Fluke 1770 Series |
| Manufacturer Part Number / Part# | 5126630 |
| UPC | 0 95969 91901 2 |

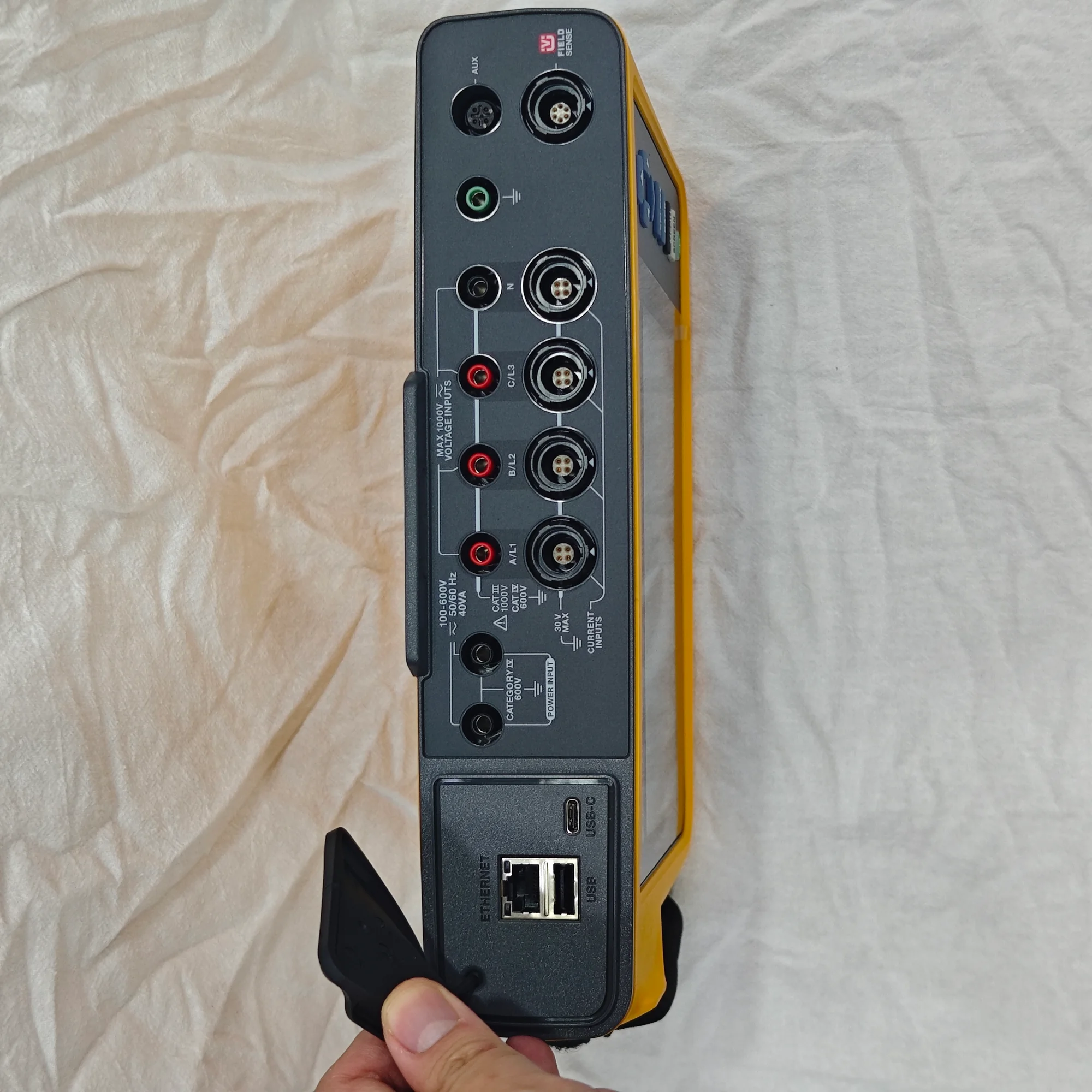

| Voltage Inputs | 4 inputs, 3 phases and neutral referenced to PE |
| Measurement Category | 1000 V CAT III / 600 V CAT IV |
| Maximum Input Voltage | 1000 Vrms / 1000 V dc, 1700 Vpk |
| Nominal Voltage Range | Wye and single phase: 50 V – 1000 V; Delta: 100 V – 1000 V |
| IEC 61000-4-30 Class A Nominal Voltage Compliance Range | 100 V – 690 V |
| Voltage Transient Measurement Range | ±8 kV |
| Fluke 1777 Transient Sampling Rate | 1 MS/s, 20 MS/s |
| Transient Bandwidth | DC to 1 MHz |
| Current Inputs | 4 inputs, 3 phases and neutral; range selected automatically to attached sensor |
| Current Input Bandwidth | DC to 30 kHz |
| Voltage / Current Resolution | 24-bit synchronous sampling |
| Voltage / Current Sampling Frequency | 80 kS/s at 50/60 Hz |
| Data Storage | 32 GB microSD card installed |
| Supported Topologies | 1-phase, 1-phase IT, split phase, 3-phase delta, 3-phase wye IT, 3-phase Aron/Blondel, 3-phase delta open leg, 3-phase high leg delta |
| Display | 7-inch TFT, 1024 x 600 pixels, capacitive touch |
| Power Supply Voltage Range | 100 V to 600 V -10% / +10% using safety plug input from measurement circuit; 100 V to 240 V using MA-C8 with standard power cord |
| Power Consumption | Maximum 40 VA |
| Battery | Li-ion BP1770, customer-replaceable |
| On-Battery Runtime | Up to 1.25 hr in official product specification |
| Operating Temperature | -10 °C to 50 °C |
| Ingress Protection | IP50 with protection caps attached; IP20 with protection caps removed |
| Dimensions | 28.0 cm x 19.0 cm x 6.2 cm / 11.0 in x 7.5 in x 2.4 in |
| Weight | 2.1 kg / 4.6 lb |
| Warranty | Analyzer: 2 years, battery not included; accessories: 1 year |
| Calibration Cycle | 2 years |
Package Contents
Official Fluke model listing for FLUKE-1777 includes:
- FLUKE-1777 Power Quality Analyzer
- I17XX-FLEX1500 24 iFLEX 1500A current probes
- FLUKE-17XX flat cable voltage test lead 3-phase+N
- AC285 black alligator clip
- AC285 green alligator clip
- Black 1 m USB-C cable
- Line cord
- FLK-17XX 0.18 m test lead set
- Green test lead
- MP1-3R/1B Magnet Probe set
- FLUKE-174X-HANGER magnetic hanging kit
- FLUKE-177X-4204 Wi-Fi/BLE module
- Cable marker set for voltage and current
- FLUKE-174X-MA-C8 wall outlet adapter
- FLUKE-1777 HARDCASE rolling hard case
Why Choose This Product
Choose the Fluke 1777 Three-Phase Power Quality Analyzer when your team needs advanced power quality troubleshooting with reliable event capture and practical reporting tools. Its automatic measurement capture helps reduce setup complexity, while the power quality meter and logging modes support both immediate field troubleshooting and longer-term studies. For procurement teams, the Fluke 1777 offers a recognized industrial test-equipment platform with official accessories, documented specifications, and available manuals and resources from Fluke.
For engineering teams, the Fluke 1777 is especially valuable where fast transients, high-frequency harmonics, equipment trips, electrical disturbances, and compliance documentation are part of the maintenance workflow. Its 20 MHz transient sampling capability, 8 kV transient capture range, 32 GB installed microSD storage, large touch display, and Energy Analyze Plus software support a complete process from field measurement to analysis and reporting.
Call to Action
Contact us for a quotation, datasheet, availability, compatible accessories, calibration options, and technical support for the Fluke 1777 Power Quality Analyzer. Bulk purchasing, project supply, and B2B procurement support are available on request.
