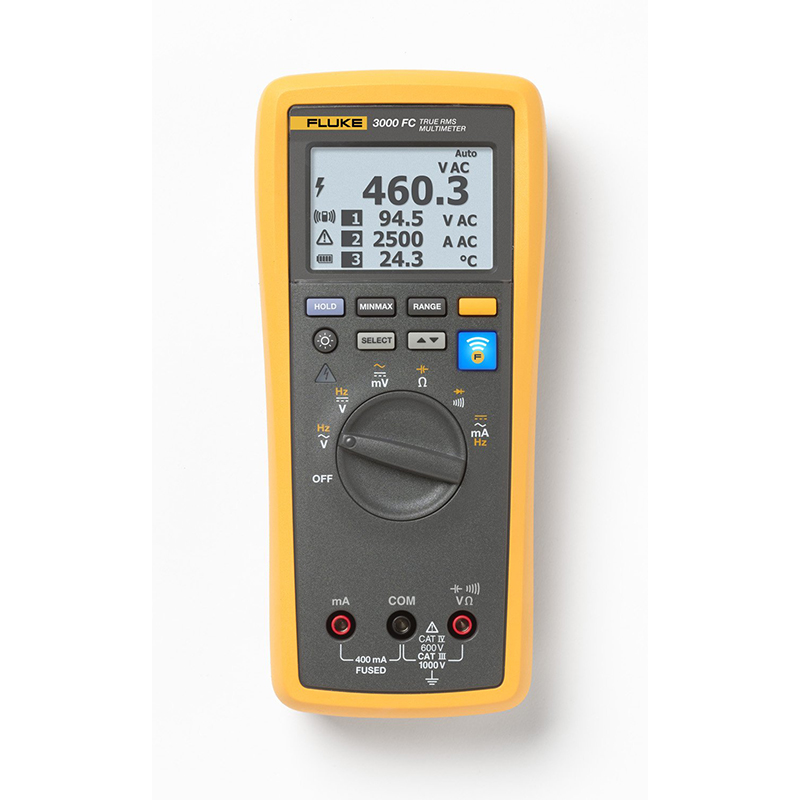

Specifications: Fluke 3000 FC Series Wireless Multimeter
| AC Voltage | ||
| Range¹ / resolution | 600.0 mV / 0.1 mV 6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V 1000 V / 1 V |
|
| Accuracy2 3 4 | 45 Hz to 500 Hz | 1.0% + 3 |
| 500 Hz to 1 kHz | 2.0% + 3 | |
| 1. AC voltage ranges are specified from 1% of range to 100% of range. 2. Crest factor of ≤ 3 at full scale up to 500 V, decreasing linearly to crest factor < 1.5 at 1000 V. 3. For non-sinusoidial waveforms, add ± (2% of reading + 2% full scale) typical, for crest factor up to 3. 4. Do not exceed 107 V-Hz. |
||
| DC Voltage, Continuity, Resistance, Diode Test and Capacitance | ||
| mV | Range / resolution | 600.0 mV / 0.1 mV |
| Accuracy | 0.09% + 2 | |
| V | Range / resolution | 6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V 1000 V / 1 V |
| Accuracy | 0.09% + 2 0.15% + 2 |
|
| ))) | Range / resolution | 600 Ω / 1 Ω |
| Accuracy | Meter beeps at < 25 Ω, beeper detects opens or shorts of 250 μs or longer. | |
| Ω | Range / resolution | 600.0 Ω / 0.1 Ω 6.000 kΩ / 0.001 kΩ 60.00 kΩ / 0.01 kΩ 60.00 kΩ / 0.1 kΩ 600.0 kΩ / 0.001 MΩ 50.00 MΩ / 0.01 MΩ |
| Accuracy | 0.5% + 2 0.5% + 1 1.5% + 3 |
|
| Diode test | Range / resolution | 2.000 V / 0.001 V |
| Accuracy | 1% + 2 | |
| µF | Range / resolution | 1000 nF / 1 nF 10.00 μF / 0.01 μF 100.0 μF / 0.1 μF 9999 μF1 / 1 μF |
| Accuracy | 1.2% + 2 10% typical |
|
| 1. In the 9999 μF range for measurements to 1000 μF, the measurement accuracy is 1.2% + 2. | ||
| AC and DC Current | ||
| mA AC (45 Hz to 1 kHz) |
Range1 / resolution | 60.00 mA / 0.01 mA 400.0 mA3 / 0.1 mA |
| Accuracy | 1.5% + 3 | |
| mA DC2 | Range1 / resolution | 60.00 mA / 0.01 mA 400.0 mA3 / 0.1 mA |
| Accuracy | 0.5% + 3 | |
| 1. All AC current ranges are specified from 5% of range to 100% of range. 2. Input burden voltage (typical): 400 mA input 2 mV/mA. 3. 400.0 mA accuracy specified up to 600 mA overload. |
||
| Frequency | ||
| Range / resolution | 99.99 Hz / 0.01 Hz 999.9 Hz / 0.1 Hz 9.999 kHz / 0.001 kHz 99.99 kHz / 0.01 kHz |
|
| Accuracy1 | 0.1% + 1 | |
| 1. Frequency is specified up to 99.99 kHz in volts and up to 10 kHz in amps. | ||
| Input Characteristics | ||
 |
Overload protection | 1100 V RMS |
| Input impedance (nominal) | > 10 MΩ < 100 pF | |
| Common mode rejection ratio (1 kΩ unbalance) |
> 120 dB at DC, 50 Hz or 60 Hz | |
| Normal mode rejection | > 60 dB at 50 Hz or 60 Hz | |
 |
Overload protection | 1100 V RMS |
| Input impedance (nominal) | > 10 MΩ < 100 pF | |
| Common mode rejection ratio (1 kΩ unbalance) |
> 60 dB, DC to 60 Hz | |
| Normal mode rejection | > 60 dB at 50 Hz or 60 Hz | |
 |
Overload protection | 1100 V RMS |
| Input impedance (nominal) | > 10 MΩ < 100 pF | |
| Common mode rejection ratio (1 kΩ unbalance) |
> 120 dB at DC, 50 Hz or 60 Hz | |
| Normal mode rejection | > 60 dB at 50 Hz or 60 Hz | |
| Open Circuit Test Voltage | ||
 |
Overload protection | 1100 V RMS |
| Input impedance (nominal) | < 2.7 V DC | |
| Full scale voltage to 6 MΩ Full scale voltage 50 MΩ |
< 0.7 V DC < 0.9 V DC |
|
| Typical short circuit current | < 350 mA | |
 |
Overload protection | 1100 V RMS |
| Input impedance (nominal) | < 2.7 V DC | |
| Full scale voltage to 6 MΩ Full scale voltage 50 MΩ |
2.000 V DC | |
| Typical short circuit current | < 1.1 mA | |
| mA Function | ||
| Overload protection | Fused, 44/100 A, 1000 V FAST Fuse | |
| Overload | 600 mA overload for 2 minutes maximum, 10 minutes rest minimum | |
| MIN/MAX Recording Accuracy | ||
| DC functions | ± 12 counts for changes > 350 mS in duration. | |
| AC functions | ± 40 counts for changes > 900 mS in duration. | |
| General Specifications | ||
| Maximum voltage between any terminal and earth ground | 1000 V DC or AC RMS | |
| Ω fuse protection from A inputs | 0.44 A (44/100 A, 440 mA), 1000 V FAST Fuse, Fluke specified part only | |
| Display (LCD) | Update rate | 4/sec |
| Volts, amps, ohms | 6000 counts | |
| Frequency | 10,000 counts | |
| Capacitance | 1,000 counts | |
| Battery type | Three AA Alkaline batteries, NEDA 15A IEC LR6 | |
| Battery life | 250 hours minimum | |
| RF communications | 2.4 GHZ ISM Band | |
| RF communication range | Open air, unobstructed | Up to 20m |
| Obstructed, sheetrock wall | Up to 6.5m | |
| Obstructed, concrete wall, or steel electrical enclosure | Up to 3.5m | |
| Temperature | Operating | -10°C to 50°C |
| Storage | -40°C to 60°C | |
| Temperature coefficient | 0.1 X (specified accuracy) / °C (< 18°C or > 28°C) | |
| Relative humidity | 0% to 90% (0°C to 35°C) 0% to 75% (35°C to 40°C) 0% to 45% (40°C to 50°C) |
|
| Altitude | Operating | 2,000 m |
| Storage | 12,000 m | |
| Electromagnetic compatibility EMI, RFI, EMC, RF |
EN 61326–1:2006, EN 61326–2–2:2006 ETSI EN 300 328 V1.7.1:2006, ETSI EN 300 489 V1.8.1:2008 FCC Part 15 Subpart C Sections 15.207, 15.209, 15.249 FCCID : FCC: T68–FDMMBLE IC: 6627A–FDMMBLE |
|
| Safety compliance | ANSI / ISA 61010–1 / (82.02.01): 3rd edition CAN / CSA-C22.2 No 61010-1-12: 3rd edition UL 61010–1: 3rd edition IEC / EN 61010–1:2010 |
|
| Certifications | CSA, FCC, CE | |
| Ingress Protection (IP) rating | IP54 | |
| Pollution Degree | 2 | |
| Size (H x W x L) | 4.75 x 9.3 x 20.7 cm (1.87 x 3.68 x 8.14 in) | |
| Weight | 340 g (12 oz) | |
| Warranty | Three years | |
| Not compatible with Fluke CNX test tools | ||
