Description
Overview
The Fluke 6200-2 Portable Appliance Tester is engineered for efficient, safe, and rapid testing of portable electrical appliances and equipment. It consolidates multiple test functions into a single device, enabling users to perform a full suite of safety tests with minimal configuration.

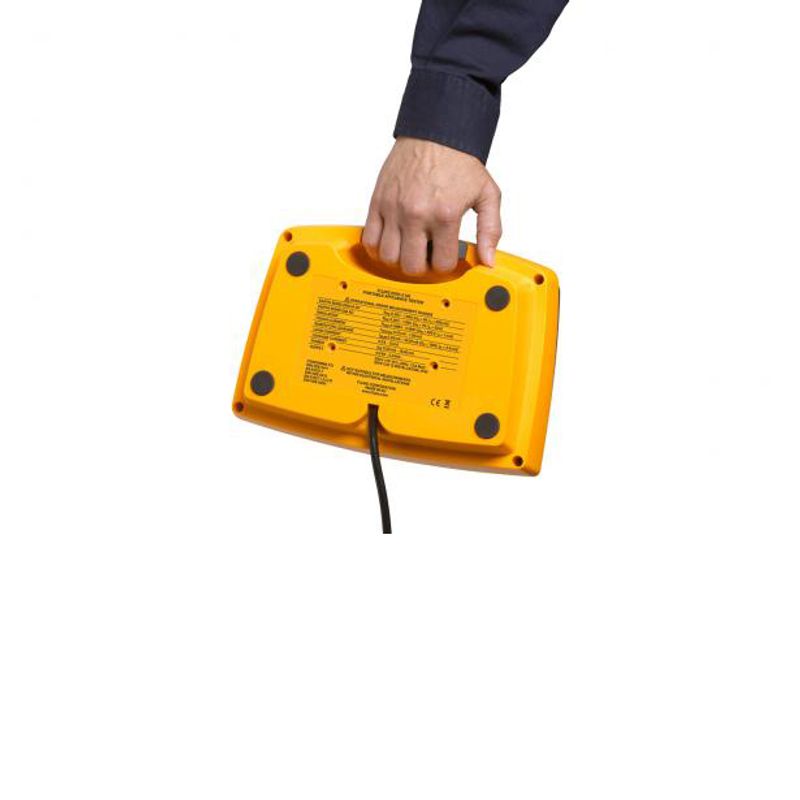

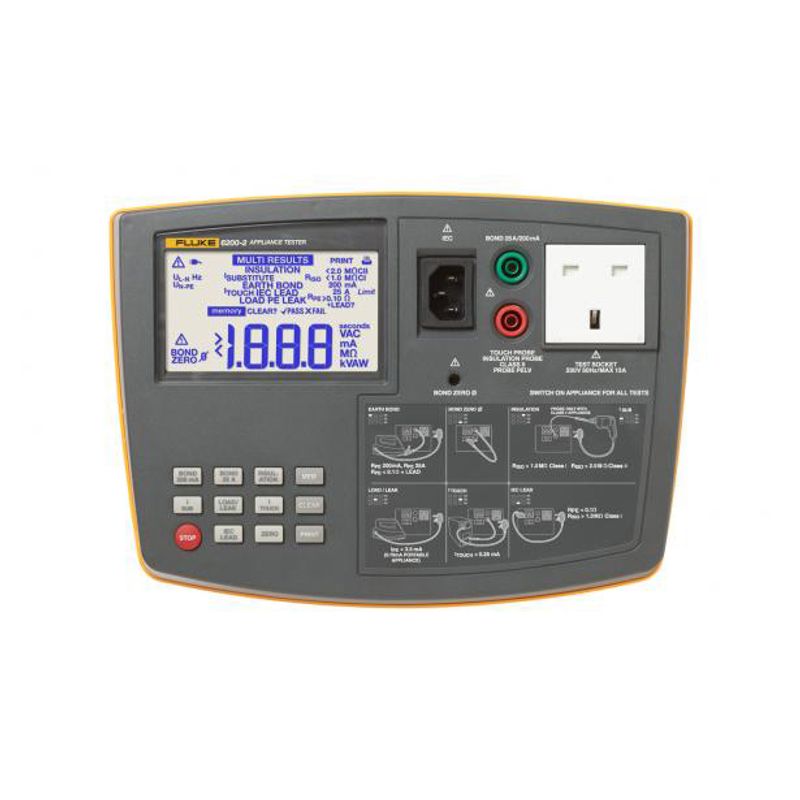

It is compact (approx. 3 kg) and ruggedly built for on-site use. The tester features a large backlit display, detachable test leads, a dedicated key for each test type (one-touch), and pre-set pass/fail limits to accelerate workflow.
Test routines include Earth Bond (RPE), Insulation (RISO), Substitute Leakage Current, Touch Current, Load/Leakage, and IEC Lead tests. The tester also performs initial power-on checks to detect reversed conductors, missing protective conductors, and measures mains voltage/frequency.
It complies with standards such as DIN EN 50678 (VDE 0701) and DIN EN 50699 (VDE 0702) for portable appliance testing.
Key Features
-
One-touch test initiation via dedicated function keys (no menu navigation)
-
Pre-set pass/fail thresholds for each test type
-
Lightweight (~3 kg) and compact for on-site portability
-
Large backlit display for clear readings
-
Single mains socket for connecting the appliance under test
-
Separate IEC socket for testing detachable leads and extension cords
-
Detachable test leads for easy replacement in the field
-
Integral carrying handle and rugged hard case included
-
USB interface for data transfer / report export
-
Power-on checks: reversed polarity, missing protective conductor, mains voltage/frequency
-
Measure multiple safety parameters in one instrument
Applications
-
Routine safety inspections for appliances in offices, schools, factories
-
Maintenance checks in rental fleets of electrical devices
-
Compliance verification of portable electrical equipment
-
On-site safety audits in public facilities
-
Appliance safety validation during commissioning or repair
-
Facilities management for large portfolios of electrical assets
Technical Specifications
| Parameter / Test Type | Specification / Range |
|---|---|
| Power-on test (voltage / frequency) | 90 V to 264 V input, ±(2 % + 3 digits) resolution 0.1 V, input impedance >1 MΩ // 2.2 nF |
| Earth Bond (RPE) | 0.00 to 19.99 Ω, ±(2.5 % + 4 digits) after zeroing, test current 200 mA AC into 1.99 Ω |
| Insulation (RISO) | Class I: RISO > 1.0 MΩ; Class II: RISO > 2.0 MΩ |
| Leakage / Substitute Leakage | Specified per standard limits depending on class and insulation |
| Touch Current | Specified limit <0.25 mA (typical) |
| Load / Leakage | Typical regulation of current leakage under load tests |
| IEC Lead Test | Detects faults or continuity issues for detachable leads |
| Compliance Standards | DIN EN 50678 / DIN EN 50699 (VDE 0701 / 0702) |
| Weight | Approx. 3 kg (with hard case) |
| Accessories & Case | Hard protective case, test leads, probe(s), manual, etc. |
Package Contents
-
Fluke 6200-2 appliance tester unit
-
Alligator clip (crocodile clip)
-
Test lead(s)
-
Touch current probe
-
Hard protective carrying case
-
USB / data interface cable
-
Quick reference card / user manual
-
Safety information sheet
-
Certificate or calibration documentation (depending on purchase)
Call to Action
Equip your team with the Fluke 6200-2 Portable Appliance Tester to streamline safety inspections and compliance checks. Contact us for pricing, calibration options, or bulk order inquiries and ensure your portable equipment meets safety standards reliably.
【FAQ】
Q: What safety tests can the Fluke 6200-2 perform?
It can perform Earth Bond (RPE), Insulation (RISO), Substitute Leakage, Touch Current, Load/Leakage, IEC Lead tests, and initial power-on voltage checks.
Q: Is it easy to operate in the field?
Yes — it features one-touch operation (dedicated test keys), detachable leads, a rugged case, and is lightweight (~3 kg), making it practical for on-site use.
Q: Does it comply with standards?
Yes — the 6200-2 aligns with DIN EN 50678 and DIN EN 50699 (VDE 0701 / 0702) for portable appliance testing.
Q: How is data exported or recorded?
It includes a USB interface to export test data and reports for record-keeping.
Q: What is included in the kit?
The standard kit includes the tester, test leads, crocodile clip, touch current probe, USB interface, manual, hard case, and calibration or certification documents.
