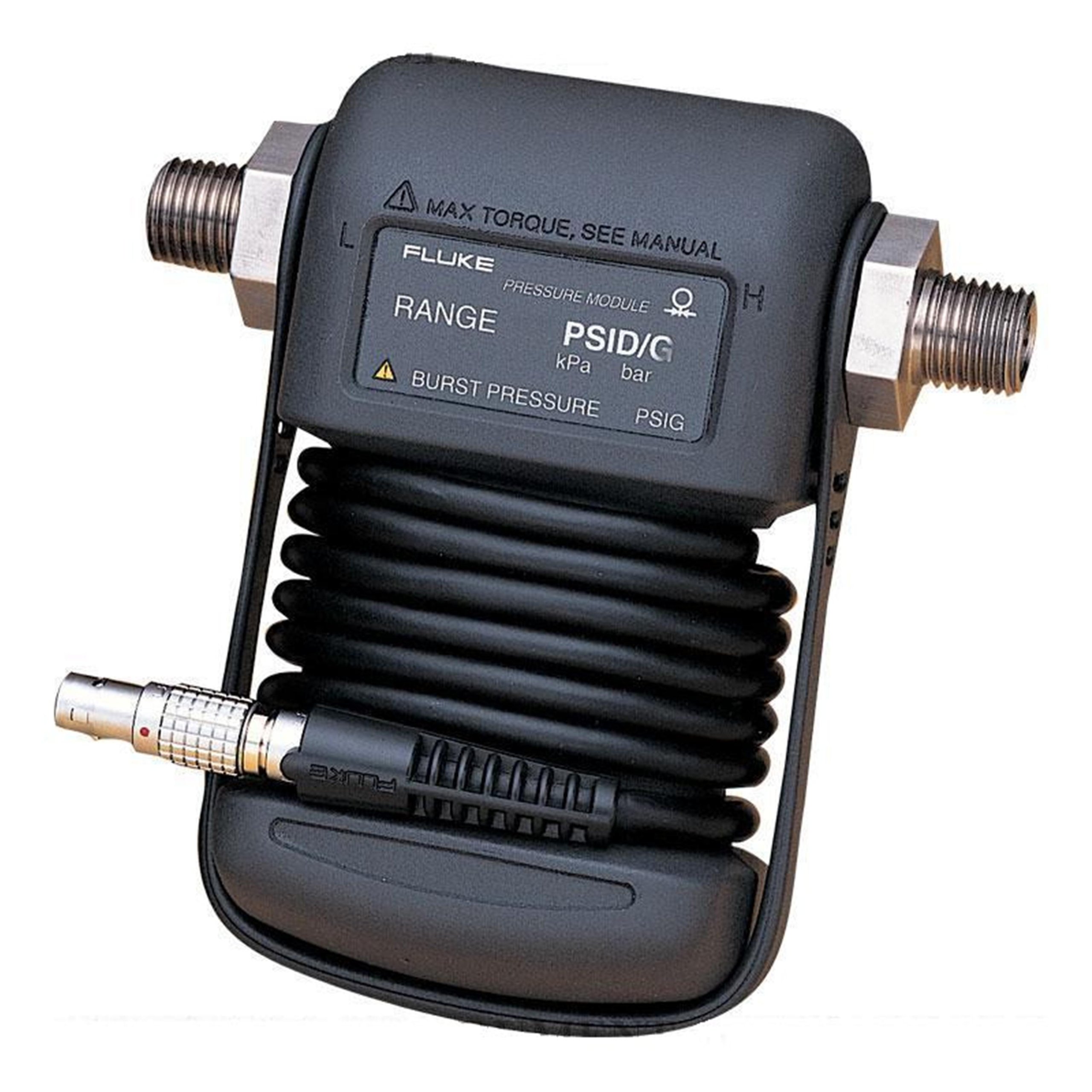

Fluke 700P02 Non-Isolated Differential Pressure Module 0 to 1.0000 PSID

$1,359.99

  • Rugged urethane molded case protects the module from rough handling and harsh conditions
  • Features internal temperature compensation from 0 °C to 50 °C for full-accuracy performance
  • Includes NIST-traceable calibration certificate
  • Module can be calibrated locally using the Fluke 700PCK Pressure Calibration Kit, a PC, and a precision pressure source
  • One year warranty
Category: Brand:

Description

Specifications: Fluke 700P02 Differential Pressure Module

Specifications
Range 1 psi / 6900 Pa
Resolution 0.0001 / 0.7
Reference Uncertainty (23 ± 3°C) 0.150%
Total¹ Uncertainty 1 year 0.300
High Side Media² Dry
Low Side Media² Dry
1. Total uncertainty, one year for temperature range 0°C to +50°C.
Total uncertainty, 1.0% of full span for temperature range -10°C to 0°C.
Compensated temperature range is 15°C to 35°C.

2) “Dry” indicates dry air or non-corrosive gas as compatible media.
“316 SS” indicates media compatible with Type 316 Stainless Steel.
“C276” indicates media compatible with Hastelloy C276.

Additional information

Model

700P02

Product Type

Non-Isolated Differential Pressure Module 0 to 1.0000 PSID
