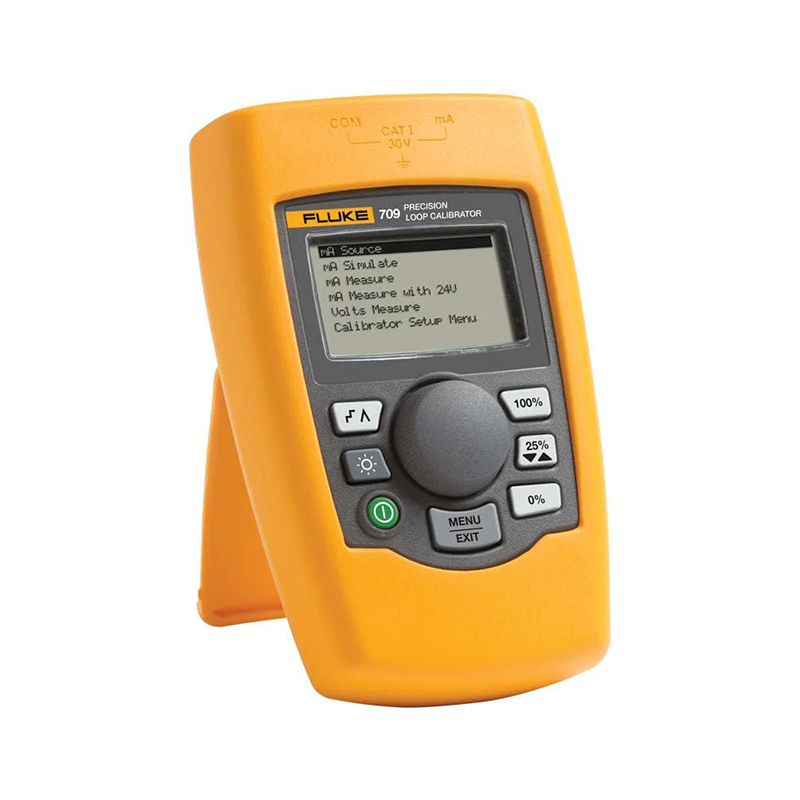

Fluke 709 Precision Loop Calibrator for Accurate Current Signal Testing

$1,117.57

mA precision loop calibrator with best-in-class accuracy at 0.01% reading
Provides intuitive user interface with quick-set rotary encoder knob for fast setup
Includes built in selectable 250 Ω resistor for HART communication
Features 24 V DC loop power with mA Measure Mode (-25% to 125%)
Requires only simple two wire connection for all measurements

Category: Brand:

Description

Specifications: Fluke 709 Precision mA Loop Calibrator

Detailed Specifications
Functions mA source, mA simulate, mA read, mA read/loop power, and volts read.
Ranges mA (0 to 24 mA) and Volts (0 to 30 V DC)
Resolution 1 µA on mA ranges and 1 mV on voltage range
Accuracy 0.01% ± 2 counts, all ranges (@23° ± 5°C)
Operating temperature range -10°C to 55°C  (14°F to 131°F)
Humidity range 10 to 95% non-condensing
Stability 20 ppm of F.S. /°C from -10°C to 18°C and 28°C to 55°C
Display 128 x 64 pixels, LCD graphic w/backlight, .34 high digits
Power 6 AAA alkaline
Battery life 40 hours typical
Loop compliance voltage 24 V DC @ 20 mA
Over-voltage protection 240 V AC
Overload current protection 28 mA DC
EMC EN61326 Annex A (Portable Instruments)
Dimensions (L x W x D) 15 x 9 x 3 cm (6 x 3.6 x 1.3 in)
Weight 0.3 kg (9.5 oz)

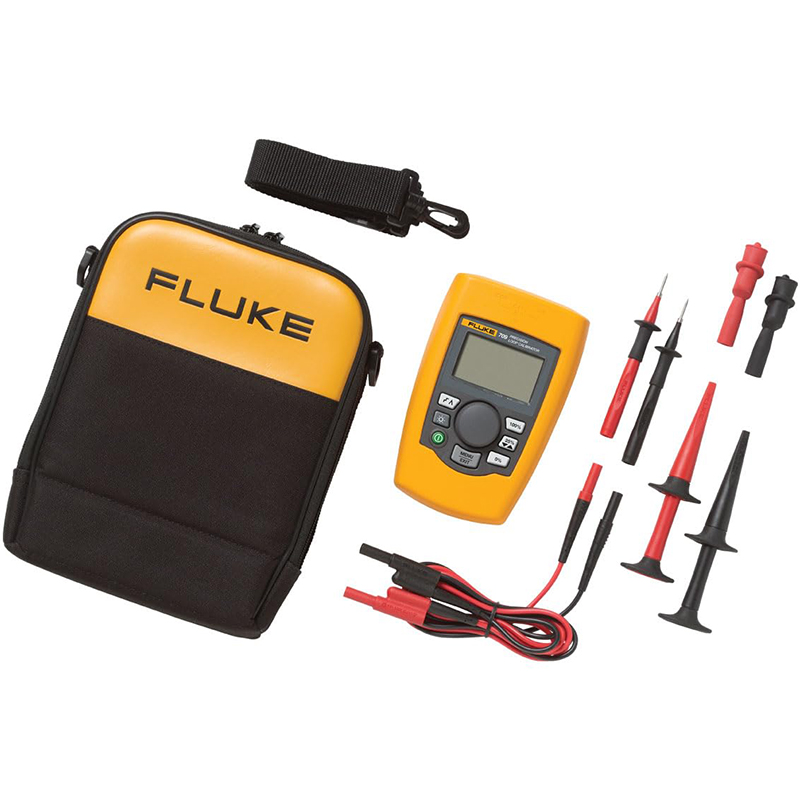

Included accessories NIST traceable calibration certificate with data, batteries, test leads, and manual
Warranty One year

Additional information

Model

709

Product Type

Precision Loop Calibrator
