Description
Overview
The Fluke I17XX-FLEX1500/24 Flexible Current Probe is a 24-inch iFlex current probe designed for AC current measurement with compatible Fluke power quality, power logging, and energy logging instruments. It is part of the Fluke i17XX-flex1500 iFlex current clamp family, which is specified by Fluke for measuring up to 1500 A AC and connecting directly to compatible 173X energy or power loggers, helping users view current measurements without manual scaling factors.
For electrical engineers, facility maintenance teams, commissioning technicians, and industrial service providers, the Fluke I17XX-FLEX1500/24 is especially useful where rigid current clamps are difficult to position. Its flexible probe design allows the current loop to be routed around large single conductors or bundles of conductors, making it suitable for panel work, electrical distribution troubleshooting, load studies, and power quality investigations in industrial and commercial environments. Distributor listings for the exact I17XX-FLEX1500/24 model identify it as a 24-inch flexible current probe for measurement up to 1500 A and for use around large conductors or conductor bundles.
Unlike a standalone clamp meter, this probe is intended to work as an accessory with compatible Fluke instruments. Fluke lists the i17XX-flex1500 family as compatible with several power and energy loggers and power quality analyzers, including the Fluke 1736/1738, 1732/1734, 3540 FC, 1770 Series, 1742/1746/1748, and PQ400-related applications. This makes it a practical accessory for teams that already use Fluke 17XX series instruments and need a larger flexible loop for installations where access is limited or conductors are oversized.
Key Features
- 1500 A AC measurement capability for compatible Fluke logging and analysis instruments.
- 24-inch flexible probe length for large conductors or conductor bundles.
- Direct connection to compatible Fluke 173X Energy or Power Loggers, allowing current measurements to be displayed without error-prone scaling factors.
- Flexible iFlex design that can be looped around conductors where conventional rigid clamps may be difficult to use.
- 1.8 m / 6 ft cord on the iFlex family, helping separate the measurement point from the logger display for easier viewing.

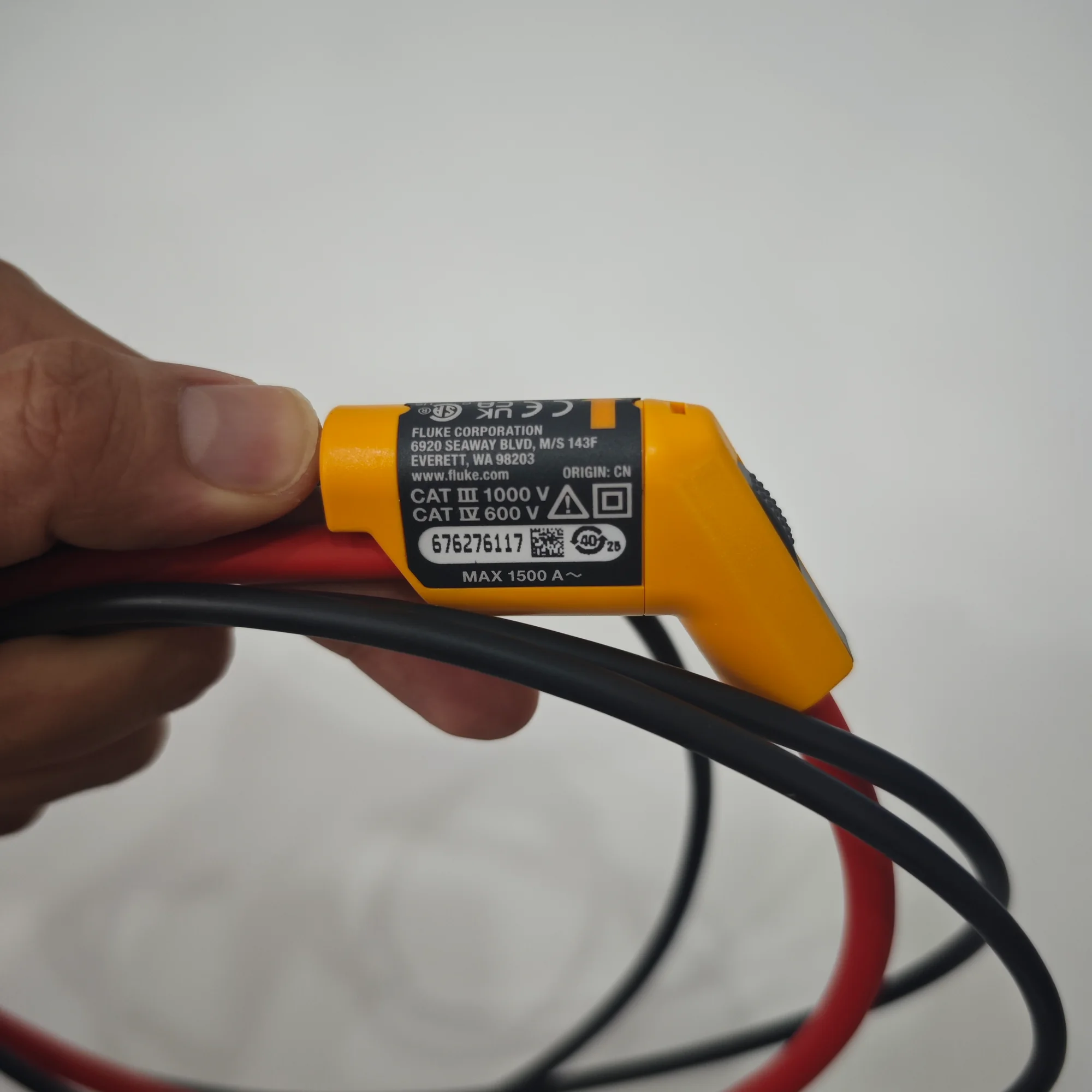

- Safety-rated design documented in Fluke safety information, including IEC 61010-2-032 CAT IV 600 V and CAT III 1000 V ratings for the iFlex-1500-xx family.
- Designed for industrial power quality and energy work, including power quality troubleshooting, energy studies, load studies, and long-term recording when used with suitable Fluke instruments.
Applications
The Fluke I17XX-FLEX1500/24 Flexible Current Probe is suitable for B2B electrical testing environments where current measurement must be made safely, accurately, and efficiently through compatible Fluke instruments. Typical application areas include power quality troubleshooting, three-phase load studies, energy audits, preventive maintenance, and diagnostics of electrical distribution systems.
Fluke’s power quality brochure describes power and energy loggers as tools for characterizing power quality, conducting energy and load studies, and capturing hard-to-find voltage events over a user-defined period. It also identifies Fluke power quality tools as suitable for troubleshooting, preventive maintenance, and long-term recording in industrial, utility, and commercial building applications. When paired with compatible Fluke loggers or analyzers, the I17XX-FLEX1500/24 helps extend current measurement access to larger conductors or crowded panels.
This probe is particularly useful for maintenance teams working in switchgear, distribution boards, motor control centers, plant electrical systems, commercial buildings, utilities, and facilities where current must be measured without disconnecting conductors. The 24-inch flexible loop is useful where the installation requires extra reach around larger conductors or conductor bundles.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Fluke |
| Model | I17XX-FLEX1500/24 |
| Product Type | iFlex Flexible Current Probe / Flexible Current Clamp |
| Current Measurement | Up to 1500 A AC |
| Probe Length | 24 inch |
| Cable Length | 1.8 m / 6 ft, based on Fluke i17XX-flex1500 family information |
| Compatible Instrument Family | Fluke 17XX power quality, power logger, and energy logger instruments, based on Fluke compatibility listings |
| Safety Standard | IEC 61010-1 Pollution Degree 2; IEC 61010-2-032 CAT IV 600 V, CAT III 1000 V |
| Operating Temperature | -20 °C to 70 °C / -4 °F to 158 °F |
| Maximum Conductor Temperature | 80 °C / 176 °F |
| Storage Temperature | -40 °C to 80 °C / -40 °F to 176 °F |
| Operating Altitude | 2000 m |
Package Contents
- Fluke I17XX-FLEX1500/24 Flexible Current Probe, 1500 A, 24″
Why Choose This Product
The Fluke I17XX-FLEX1500/24 is a practical accessory for teams that require flexible, high-current AC measurement with compatible Fluke instruments. Its 24-inch flexible probe length helps technicians work around large conductors or bundled conductors where a standard clamp may not fit easily. This can reduce setup time during industrial testing, facility maintenance, power logging, and troubleshooting work.
For procurement teams, the value of this product is its fit within the Fluke 17XX measurement ecosystem. Fluke lists the i17XX-flex1500 family with compatible power and energy loggers and power quality analyzers, which makes it a suitable replacement, expansion, or project-specific accessory for organizations already using Fluke 173X, 174X, 1770 Series, or related tools.
For engineering and maintenance teams, the key benefit is measurement flexibility. The probe connects directly to compatible loggers and analyzers, allowing current data to be displayed without manual scaling factors, which helps reduce setup complexity during field measurements. The safety information for the iFlex-1500-xx family also documents CAT IV 600 V and CAT III 1000 V ratings, supporting use in demanding electrical measurement environments when proper procedures and PPE requirements are followed.
Call to Action
Contact us to request a quotation, confirm availability, check compatibility with your Fluke logger or analyzer, or receive support for bulk purchasing and project-based supply of the Fluke I17XX-FLEX1500/24 Flexible Current Probe.
