Description
Overview

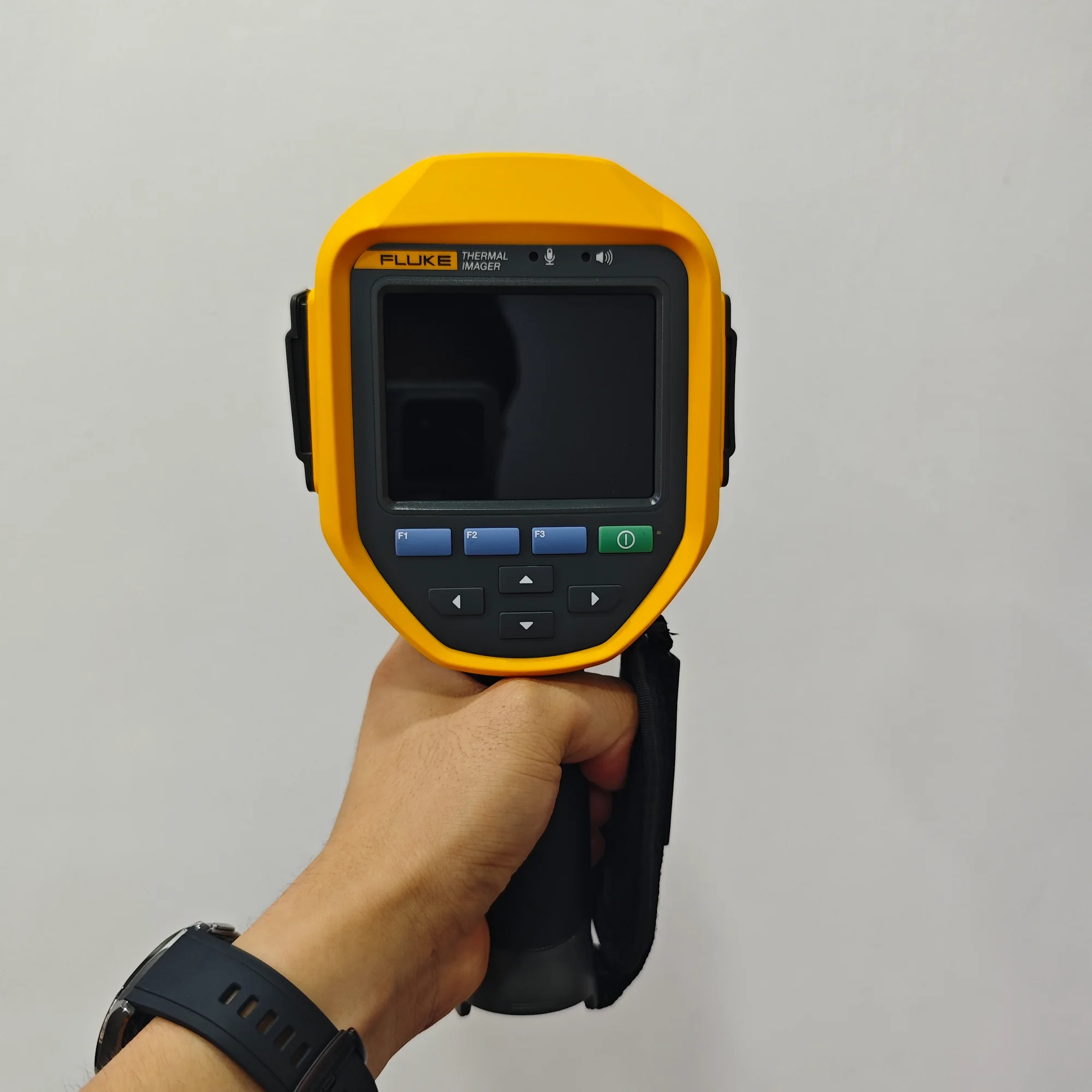

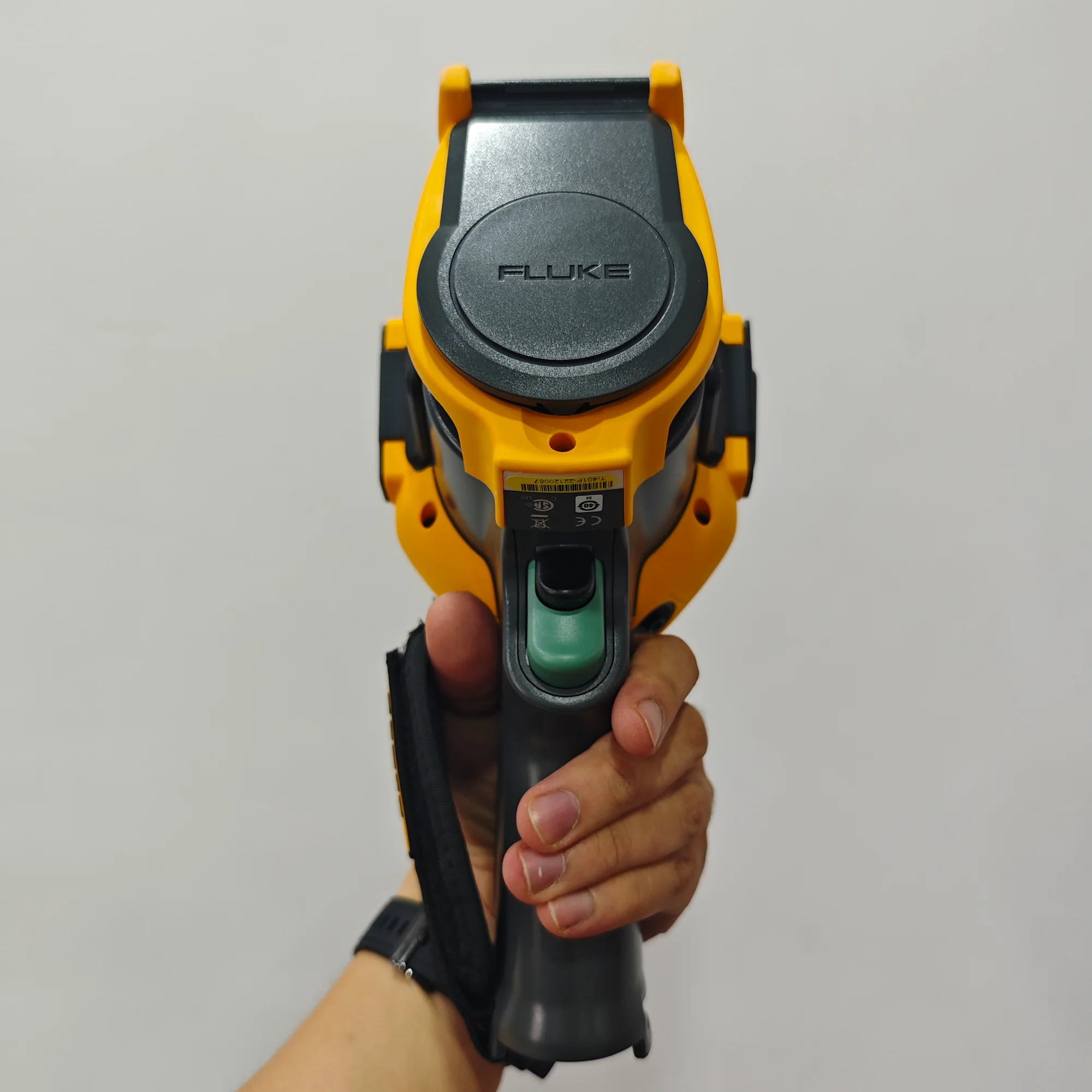

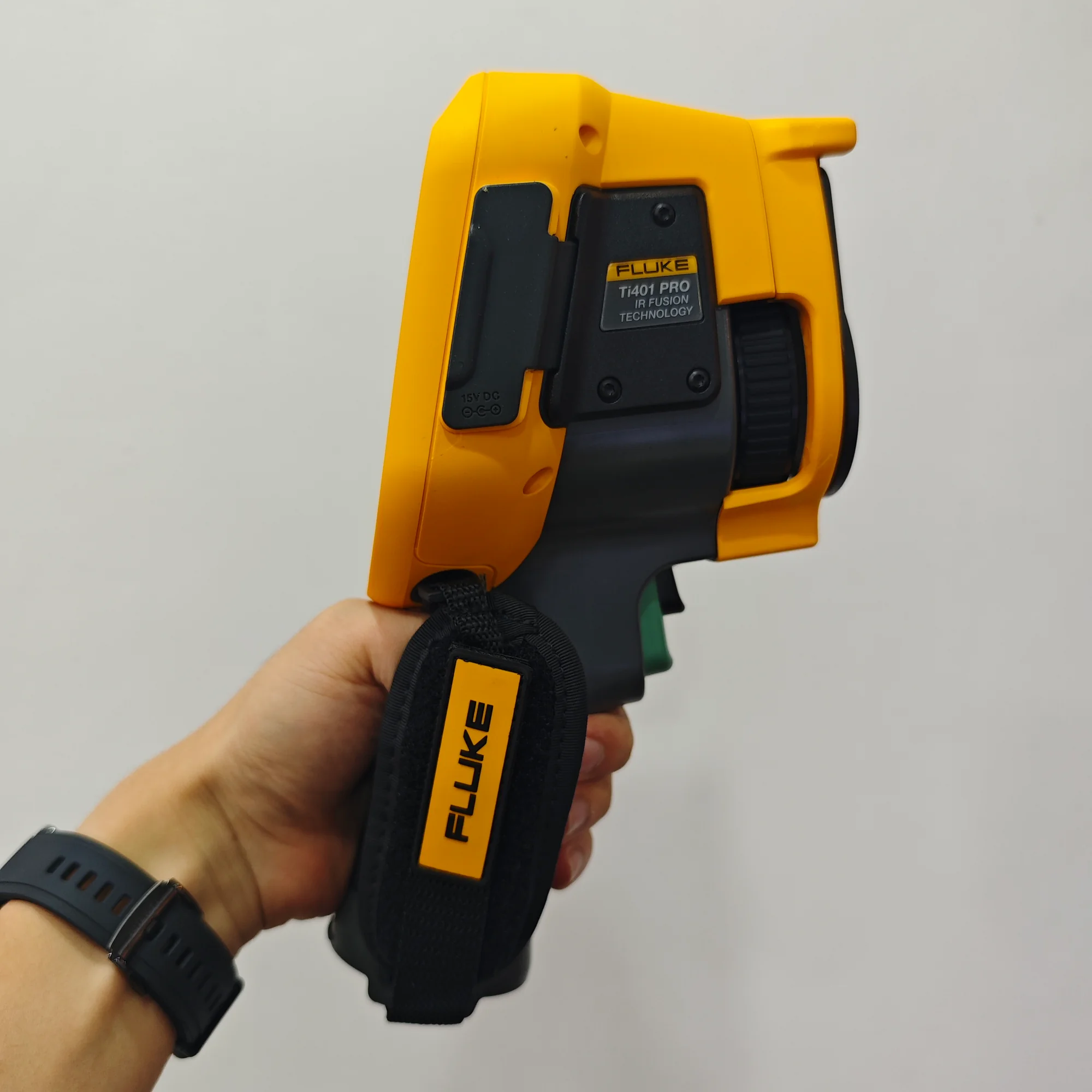

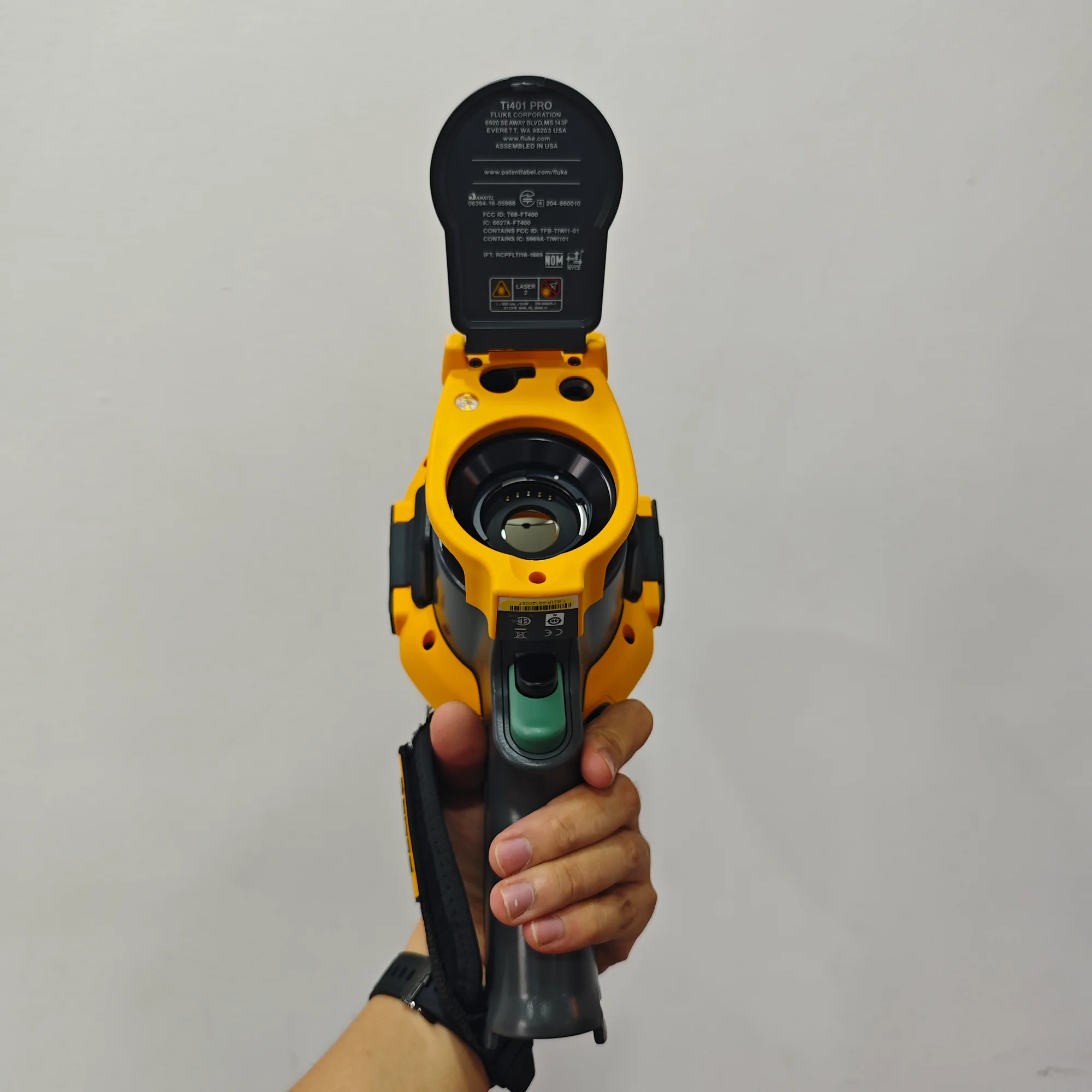

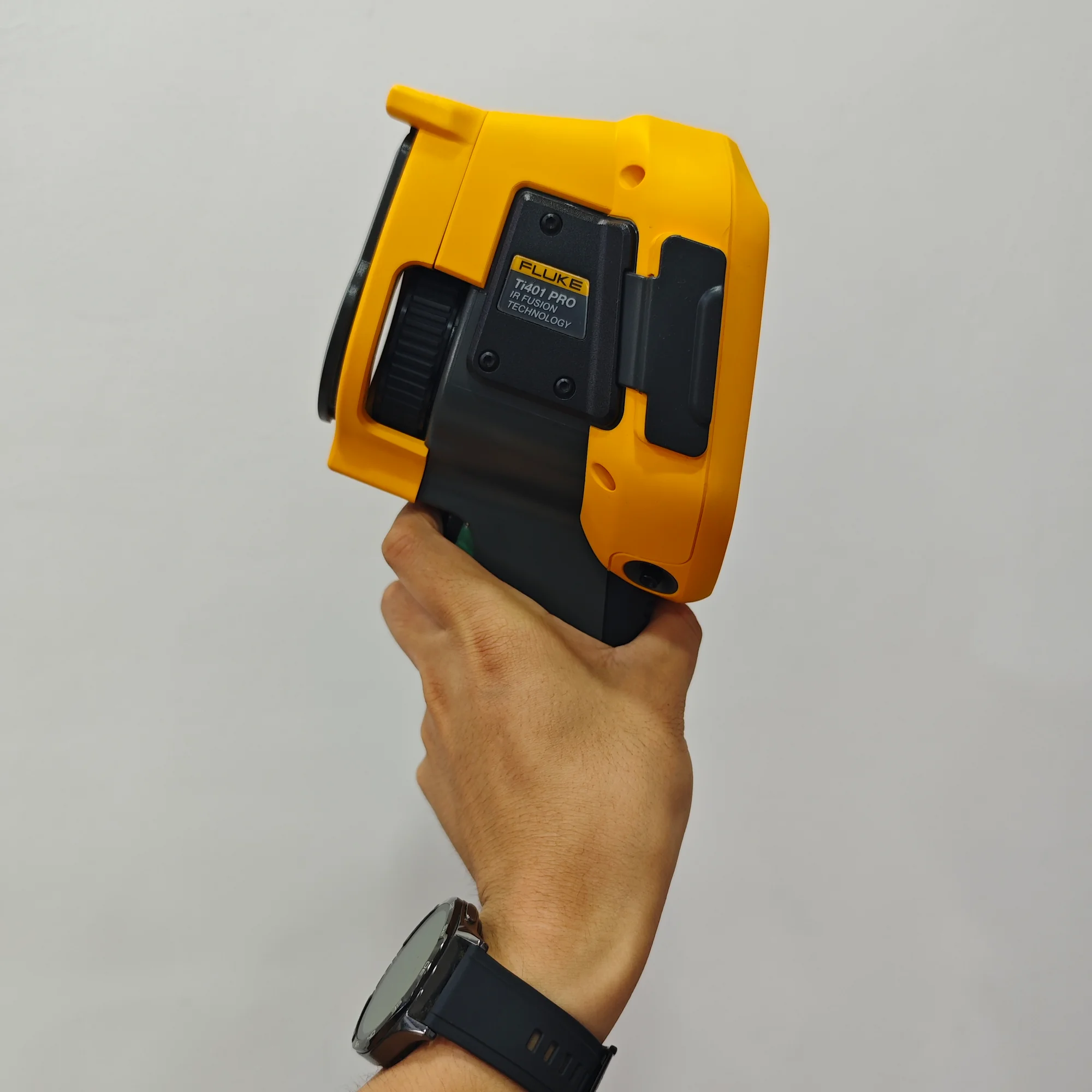

The Fluke Ti401 PRO Thermal Camera is a professional handheld infrared imaging camera designed for industrial maintenance, heavy commercial facility maintenance, commercial building diagnostics, and preventive maintenance programs. Fluke’s official product page identifies the model as FLK-Ti401 PRO, available in 60 Hz and 9 Hz versions, and positions it as a rugged, general-use thermal imager for certified and non-certified thermographers.
For maintenance engineers and inspection teams, the Fluke Ti401 PRO helps identify thermal anomalies before they develop into equipment failures, production downtime, or safety-related maintenance issues. Its 640 × 480 infrared resolution provides 307,200 thermal pixels, allowing users to inspect electrical panels, mechanical assets, building systems, motors, process equipment, and facility infrastructure with a high level of thermal detail.
A key value of the Fluke Ti401 PRO is its combination of high-resolution thermal imaging, LaserSharp™ Auto Focus, IR-Fusion™ image blending, rugged field construction, and Fluke Connect™ software support. LaserSharp™ Auto Focus uses a built-in laser distance meter to calculate and display the distance to the target, then adjusts focus to help capture in-focus images quickly. IR-Fusion™ technology adds visible-light context to infrared images, making reports easier to interpret for maintenance teams, managers, and external service providers.
The camera is suitable for environments where reliability, repeatable inspection workflows, and documentation matter. The user manual describes the Professional Series Thermal Imagers, including the Ti401 PRO, as handheld infrared imaging cameras for equipment troubleshooting, preventive and predictive maintenance, building diagnostics, and research and development. It also notes that images can be saved to internal memory, removable memory card, or USB storage, then transferred to a PC or mobile device.
Key Features
- 640 × 480 infrared resolution for detailed thermal inspection images.
- LaserSharp™ Auto Focus with built-in laser distance meter for quick, consistent focusing.
- IR-Fusion™ technology for blending visible and infrared details in the same image.
- 34° horizontal × 24° vertical field of view with 0.93 mRad spatial resolution.
- Temperature measurement range from -20 °C to +650 °C, with accuracy of ±2 °C or 2%, whichever is greater.
- 3.5-inch ruggedized touchscreen LCD with 640 × 480 display resolution.
- Fluke Connect™ software support for image analysis, reporting, asset organization, and data management.
- Removable 4 GB microSD card, 4 GB internal flash memory, USB flash drive saving, and upload capability.
- IP54 enclosure rating, 2-meter drop-tested design with standard lens, and two-year standard warranty.
- Compatible with selected smart infrared lenses, including macro, 2× telephoto, 4× telephoto, and wide-angle lenses.
Applications
The Fluke Ti401 PRO Thermal Camera is built for professional inspection workflows where thermal imaging supports faster diagnosis, better documentation, and more confident maintenance decisions. Fluke lists industrial maintenance, heavy commercial facility maintenance, and commercial building diagnostics as key use areas for this model.
In electrical maintenance, the Fluke Ti401 PRO can support inspection of cabinets, switchgear, breakers, electrical terminations, busbars, distribution panels, and other energized or hard-to-access assets where abnormal heat patterns may indicate loose connections, overloads, imbalance, or component degradation. In mechanical maintenance, it can help maintenance teams inspect bearings, motors, pumps, rotating equipment, gearboxes, and process equipment where heat signatures may indicate friction, alignment issues, lubrication problems, or developing faults.
For facility and building diagnostics, the Fluke Ti401 PRO can be used to inspect HVAC systems, insulation conditions, heating and cooling distribution, moisture-related thermal patterns, and commercial building infrastructure. Its 640 × 480 detector resolution, IR-Fusion™ image blending, and reporting workflow make it suitable for teams that need clear visual evidence in maintenance records, service reports, and asset history.
The camera is also appropriate for preventive and predictive maintenance programs. Fluke’s data sheet emphasizes that the camera family is engineered to help industrial professionals find, assess, and solve mission-critical problems before they result in downtime or costly failures. Fluke Connect™ software further supports inspection documentation by helping users optimize thermal images, perform analysis, generate reports, and organize data by asset.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Fluke |
| Model | Ti401 PRO |
| Product Type | Handheld infrared thermal imaging camera |
| Infrared Resolution | 640 × 480 pixels, 307,200 pixels |
| Temperature Measurement Range | -20 °C to +650 °C / -4 °F to +1,202 °F |
| Accuracy | ±2 °C or 2%, whichever is greater |
| Field of View | 34° H × 24° V |
| IFOV / Spatial Resolution | 0.93 mRad, D:S 1065:1 |
| Minimum Focus Distance | 15 cm / approx. 6 in |
| Focus System | LaserSharp™ Auto Focus and advanced manual focus |
| Laser Distance Meter | Yes |
| Thermal Sensitivity / NETD | ≤0.075 °C at 30 °C target temperature / 75 mK |
| Display | 3.5-inch ruggedized touchscreen, 640 × 480 LCD |
| Visible Camera | 5 MP |
| Frame Rate | 60 Hz or 9 Hz versions |
| Image File Formats | BMP, JPEG, IS2 |
| Memory | Removable 4 GB microSD card, 4 GB internal flash memory, USB flash drive saving capability |
| Battery | Two rechargeable lithium-ion smart battery packs |
| Battery Life | 2–3 hours per battery |
| Charging Time | 2.5 hours to full charge |
| AC Operation | Included power supply, 100 V AC to 240 V AC, 50/60 Hz |
| Infrared Spectral Band | 7.5 μm to 14 μm |
| Operating Temperature | -10 °C to +50 °C / +14 °F to +122 °F |
| Safety Rating | IEC 61010-1, Overvoltage Category II, Pollution Degree 2 |
| EMC | IEC 61326-1, CISPR 11 Group 1 Class A |
| Enclosure Rating | IEC 60529 IP54 |
| Drop Rating | Engineered to withstand 2-meter / 6.5-foot drop with standard lens |
| Dimensions | 27.7 × 12.2 × 16.7 cm / 10.9 × 4.8 × 6.5 in |
| Weight | 1.04 kg / 2.3 lb, battery included |
| Warranty | Two years standard |
| Recommended Calibration Cycle | Two years |
| RoHS Compliant | Yes |
Specifications above are based on Fluke’s official product page and official data sheet.
Package Contents
Fluke lists the following included items for both the FLK-Ti401 PRO 60 Hz and FLK-Ti401 PRO 9 Hz models:
- Thermal imager with standard infrared lens
- AC power supply and battery pack charger with universal AC adapters
- Two rugged lithium-ion smart battery packs
- USB cable
- HDMI video cable
- 4 GB microSD card
- Rugged hard carrying case
- Soft transport bag
- Adjustable hand strap
- Fluke Connect™ SmartView® desktop software and user manual available by free download
Why Choose This Product
The Fluke Ti401 PRO is a strong choice for engineering and maintenance teams that need a high-resolution, field-ready thermal camera for daily inspection work. Its 640 × 480 infrared resolution gives users detailed image data for identifying abnormal heat patterns, while LaserSharp™ Auto Focus helps reduce the risk of blurred thermal images and unusable radiometric data. The user manual notes that correct focus is important because out-of-focus infrared images may be blurry and radiometric data may be inaccurate.
For procurement teams, the Ti401 PRO offers a balanced specification set for industrial and facility inspection needs: professional infrared resolution, built-in visible camera, touchscreen operation, wireless connectivity, PC/mobile workflow support, rugged housing, standard accessories, and compatibility with Fluke reporting software. The ability to save images to multiple storage options and transfer data to PC or mobile devices helps streamline inspection documentation.
For maintenance teams, the combination of IR-Fusion™, Fluke Connect™ software, hot/cold spot markers, color alarms, emissivity correction, reflected background temperature compensation, and transmission correction supports more practical image analysis and reporting. This makes the Fluke Ti401 PRO suitable for ongoing preventive maintenance programs, asset condition documentation, and technical reporting across electrical, mechanical, and building systems.
Call to Action
Contact us for a quotation, availability, lead time, datasheet, or technical support for the Fluke Ti401 PRO Thermal Camera. We can support B2B inquiries, bulk purchasing, replacement accessories, and model selection for industrial maintenance, facility diagnostics, and preventive inspection applications.
