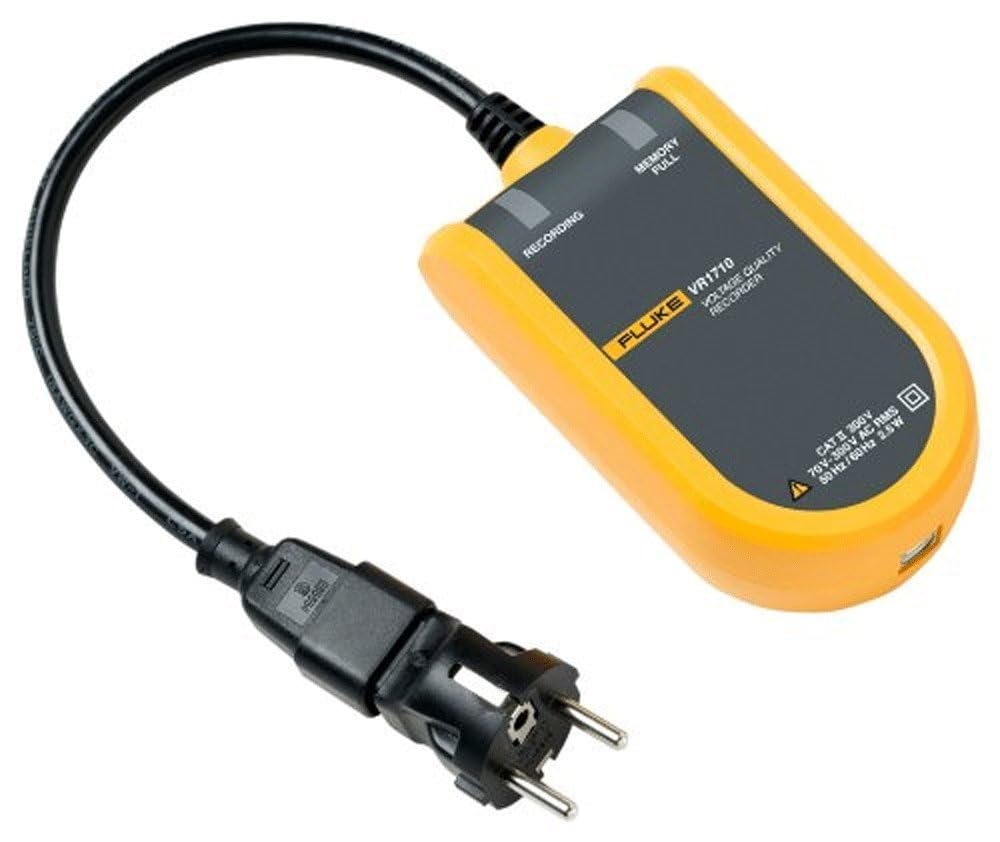

Fluke VR1710 Single-Phase Voltage Quality Recorder

$1,494.72

  • Single-phase, plug-in voltage quality recorder for detecting and recording power quality problems
  • Records voltage trends, dropouts, and power quality to pinpoint the root cause

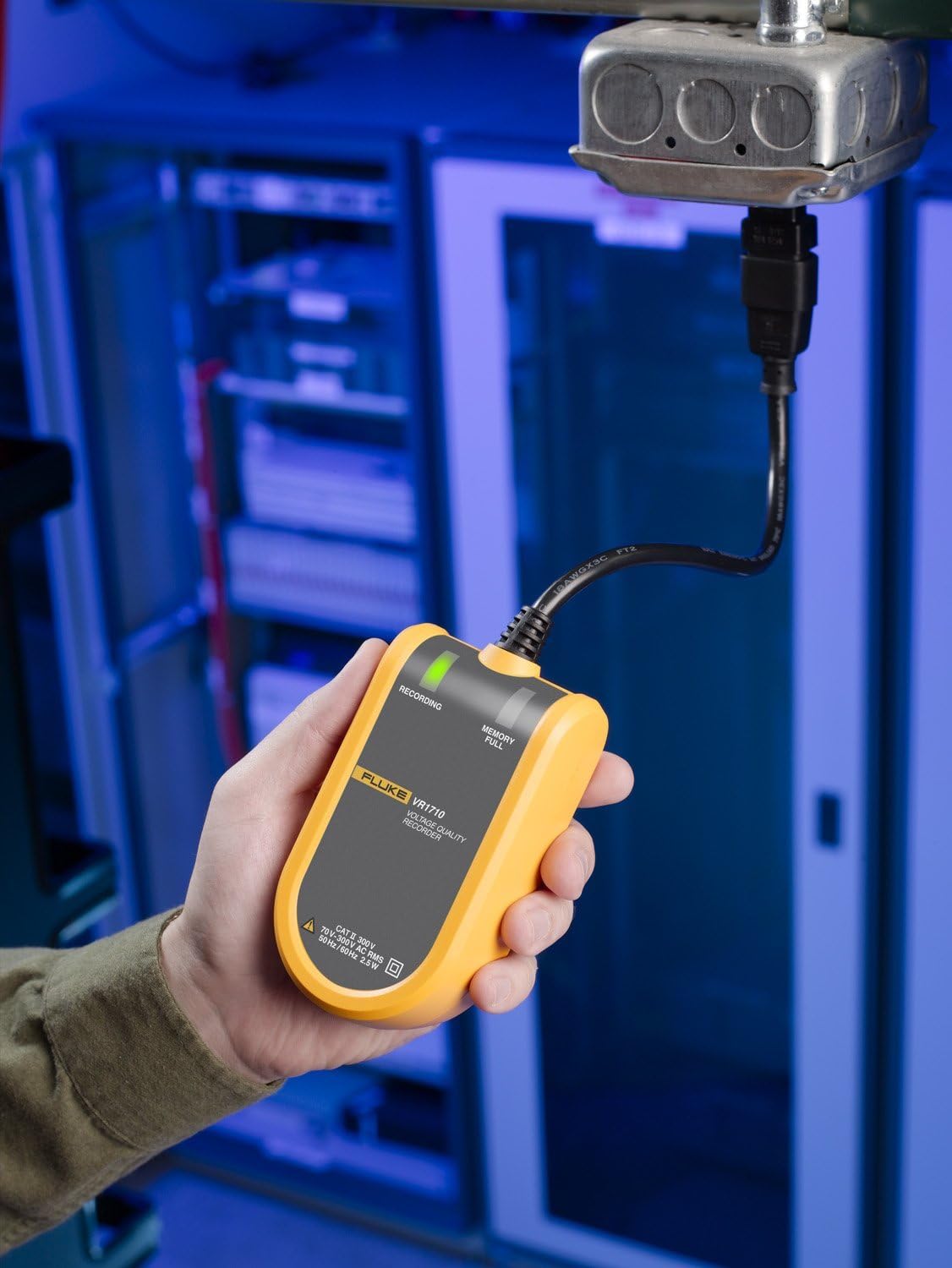

  • Plugs directly into the mains power socket to capture data

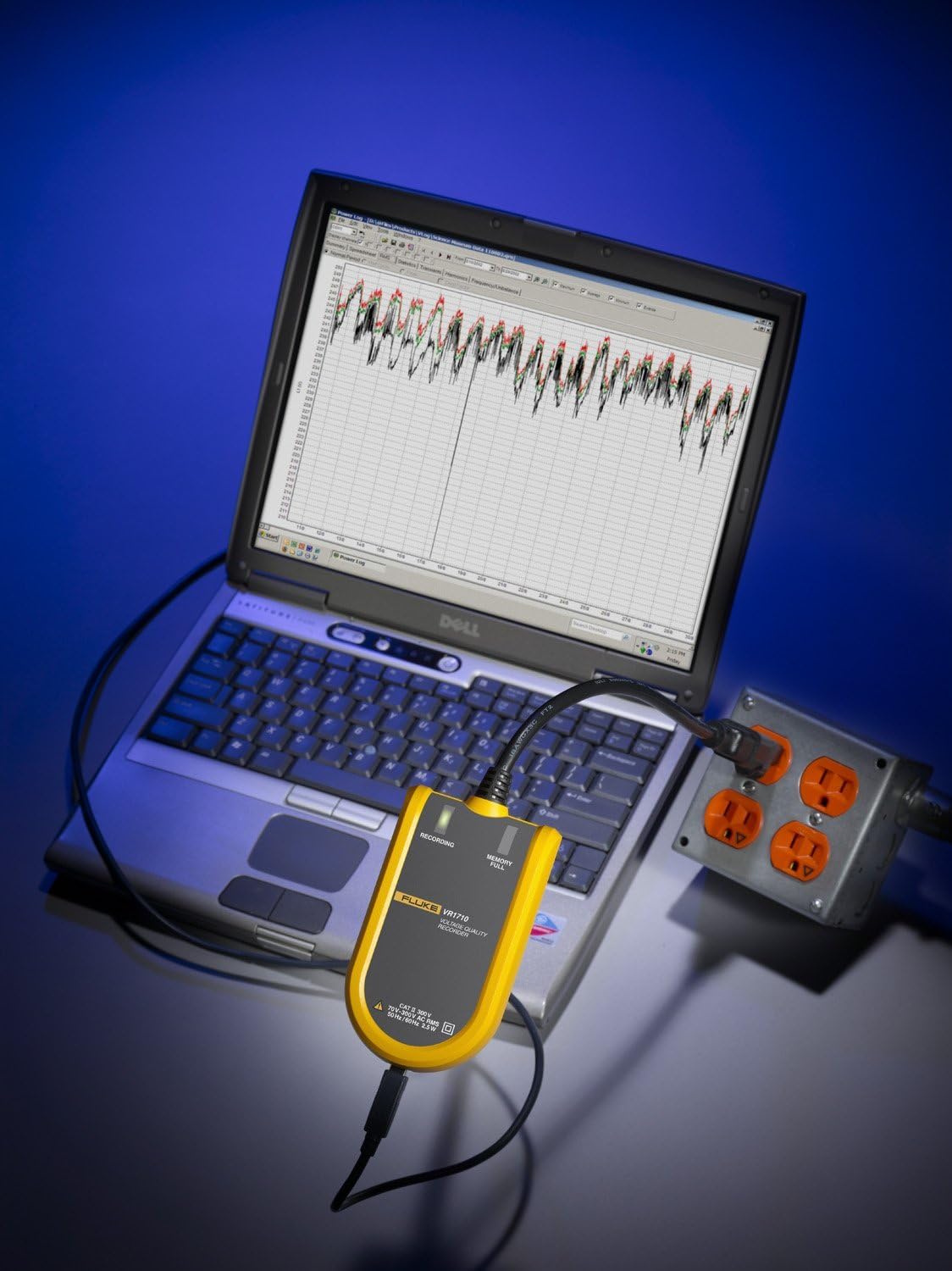

  • Presents a clear graphical summary of data and a quick overview of key power quality parameters
Category: Brand:

Description

Specifications: Fluke VR1710 Single Phase Power Quality Recorder & Voltage Recorder

Specifications
Operating voltage 70 V to 280 V
Min/Max/Avg RMS value Resolution 0.125 V
Number of events 175,000
Dips/interruptions Yes
Time resolution 5 ms
Voltage resolution 0.125 V
Over-voltages Yes
Frequency Yes
Harmonics measurement EN 61000-4-7 (up to 32nd)
Flicker measurement EN 61000-4-15
and Delta V/V%
Number of recording channels 1 Phase to Neutral
2 Phase/Neutral to Ground
Recording time 1 day to 339 days depending on average time from 1 second to 20 minutes
Transients Yes
Frequency range 50 Hz ±1 Hz and 60 Hz ±1 Hz
Safety category rating CAT II 300 V

Additional information

Model

VR1710

Product Type

Single-Phase Voltage Quality Recorder
