Description
Overview

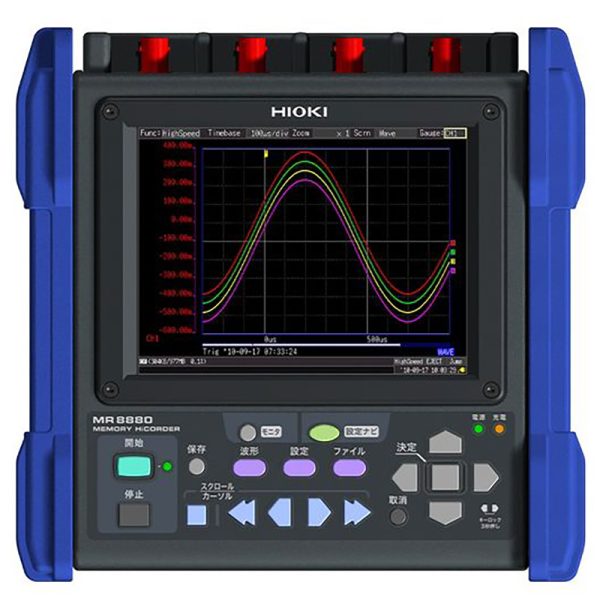

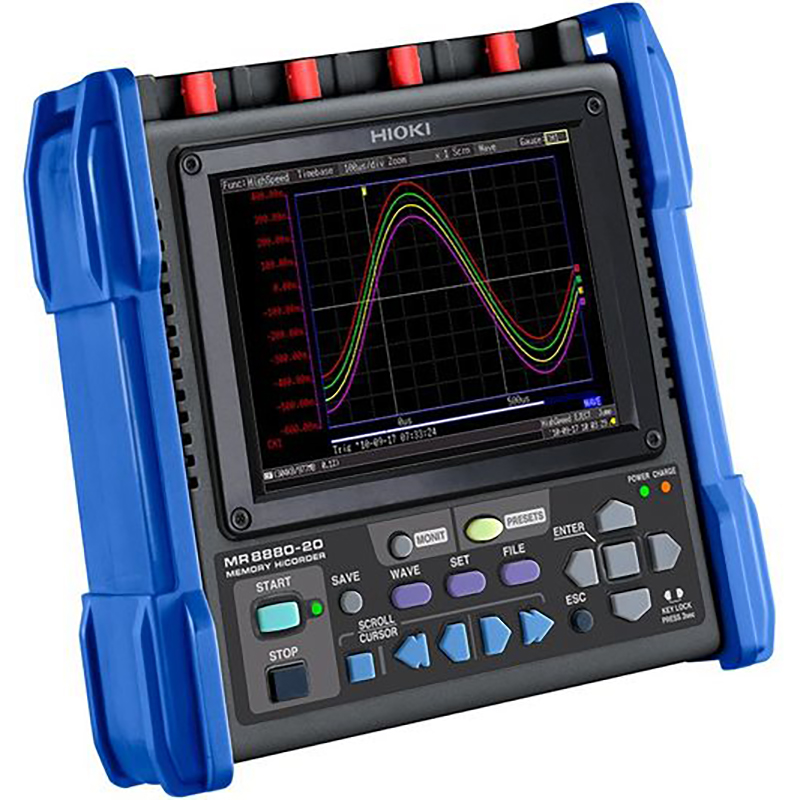

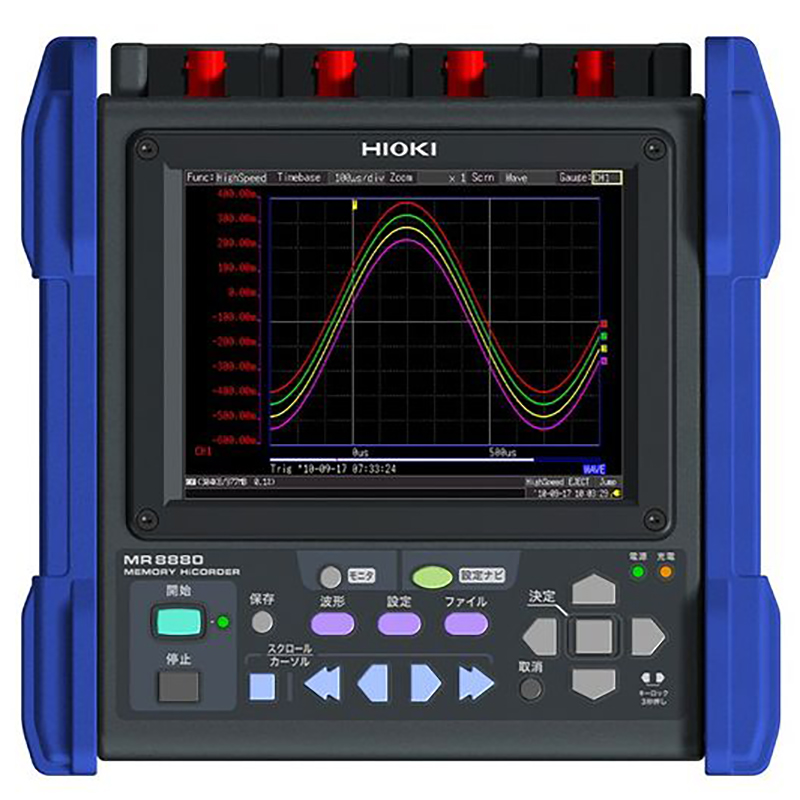

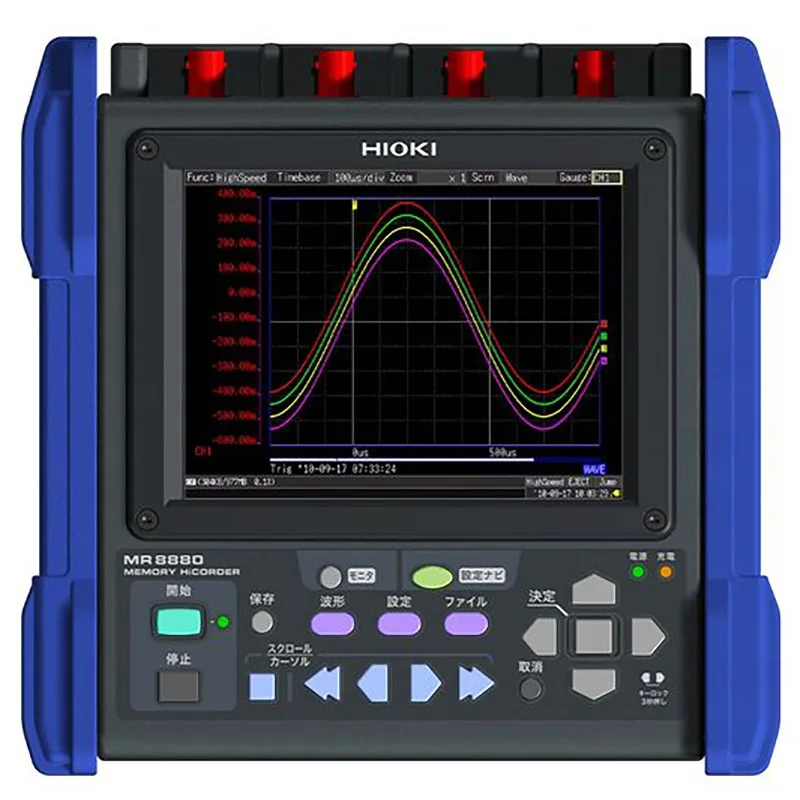

The HIOKI MR8880 Memory HiCorder is a high-performance data acquisition recorder designed for both field measurement and laboratory applications. It captures high-speed transient phenomena and supports long-term monitoring of voltage, RMS, logic signals, and waveform events. With four analog isolated channels and eight logic channels, it enables simultaneous monitoring of multiple signals such as three-phase power plus control logic. The device achieves high voltage input capability (up to 600 V AC/DC in CAT III) without needing differential probes in many use cases, simplifying setup and enhancing safety. Built rugged for industrial environments, the MR8880 withstands harsh temperatures, vibrations and impact, making it suitable for plant maintenance, power quality analysis, motor start-up diagnostics, inverter or UPS troubleshooting, and more.
Key Features
-
High-Voltage Direct Input (CAT III 600 V) for safe measurement of 480 V three-phase power lines without external differential probes.
-
Four fully isolated analog channels plus eight logic channels for simultaneous mixed signal analysis.
-
High sampling rate up to 1 MS/s on all analog channels to detect fast transients.
-
Supports waveform, RMS, DC/AC measurement, and logic signal modes.
-
Wide operating temperature range from −10 °C to +50 °C with rugged, shock-resistant housing.
-
User-friendly interface with measurement presets for voltage drop, power outage, and waveform capture.
-

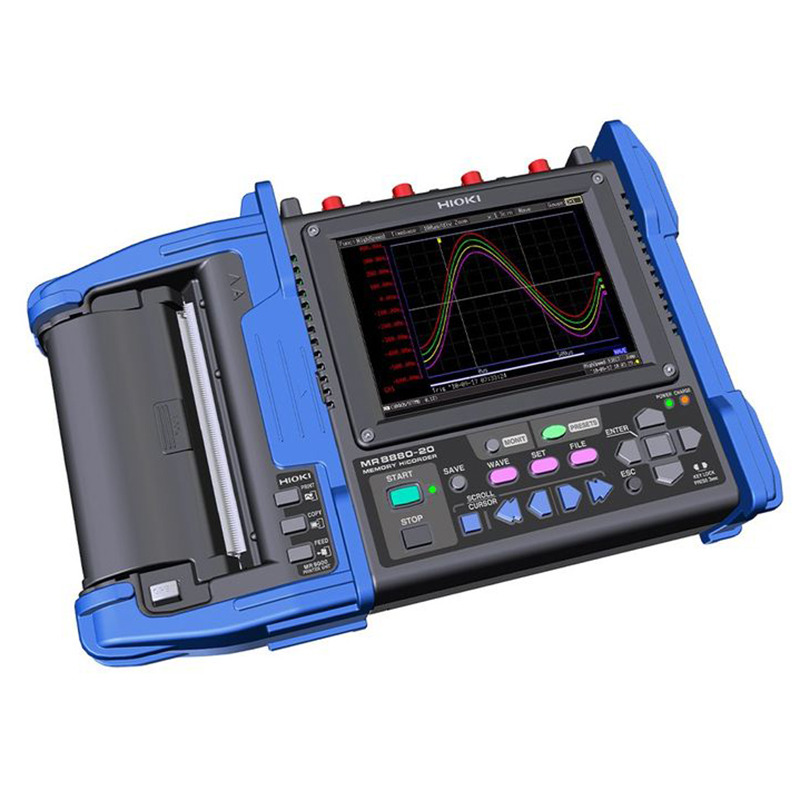

Multiple storage options including internal memory, CF card, and USB memory, with optional printer unit for on-site reporting.
Applications
-
Power distribution panels and utility monitoring for sags, swells, outages, and transient spikes.
-
Motor and machinery start-up diagnostics capturing inrush currents and phase imbalance.
-
Renewable energy, inverter, and UPS system troubleshooting for switching transients and harmonic analysis.
-
Factory automation and control system testing with simultaneous analog and logic signal capture.
-
Field maintenance where rugged design and battery operation are required.
Technical Specifications
| Parameter | Specification |
|---|---|
| Analog Channels | 4 isolated analog input channels |
| Logic Channels | 8 logic / digital channels |
| Voltage Input Range | Direct up to 600 V AC/DC (CAT III) |
| Sampling Rate (Max) | 1 MS/s per channel |
| Frequency Response | DC to ~100 kHz ±3 dB (typical) |
| Input Impedance | Approx. 1 MΩ, 7 pF |
| Operating Temperature | −10 °C to +50 °C |
| Dimensions | Approx. 205 × 199 × 67 mm (without printer) |
| Weight | Approx. 1.66 kg with battery pack |
| Display | 5.7-inch color TFT |
| Power Supply | AC adapter, optional battery pack, or DC input |
| Storage Interfaces | CF card, USB memory, USB 2.0 |
Package Contents
-
MR8880 main unit
-
AC adapter
-
Battery pack or battery box (depending on model)
-
Strap and carrying harness
-
USB cable
-
Software and manuals
-
Note: Input leads, probes, and printer unit are sold separately.
Call to Action
If you need a reliable, rugged measurement solution for high-voltage transient capture and long-term monitoring, the HIOKI MR8880 Memory HiCorder is your ideal choice. Request a quote or add to cart now and specify any required accessories such as probes or optional printer.
【FAQ】
-
Q: Can the MR8880 measure 480V three-phase voltage directly?
A: Yes. It supports CAT III 600 V input on its isolated analog channels, allowing direct measurement in many applications. -
Q: What is the maximum sampling rate?
A: Up to 1 MS/s on all four analog channels simultaneously. -
Q: Is it suitable for field use in harsh environments?
A: Yes. It operates from −10 °C to +50 °C and features a rugged design resistant to vibration and shock. -
Q: What storage options are available?
A: Internal memory, CF card, USB memory, and real-time external storage are supported. -
Q: Which accessories are not included?
A: Input leads, probes, printer unit, and some battery options must be purchased separately.
