Description
Product Overview

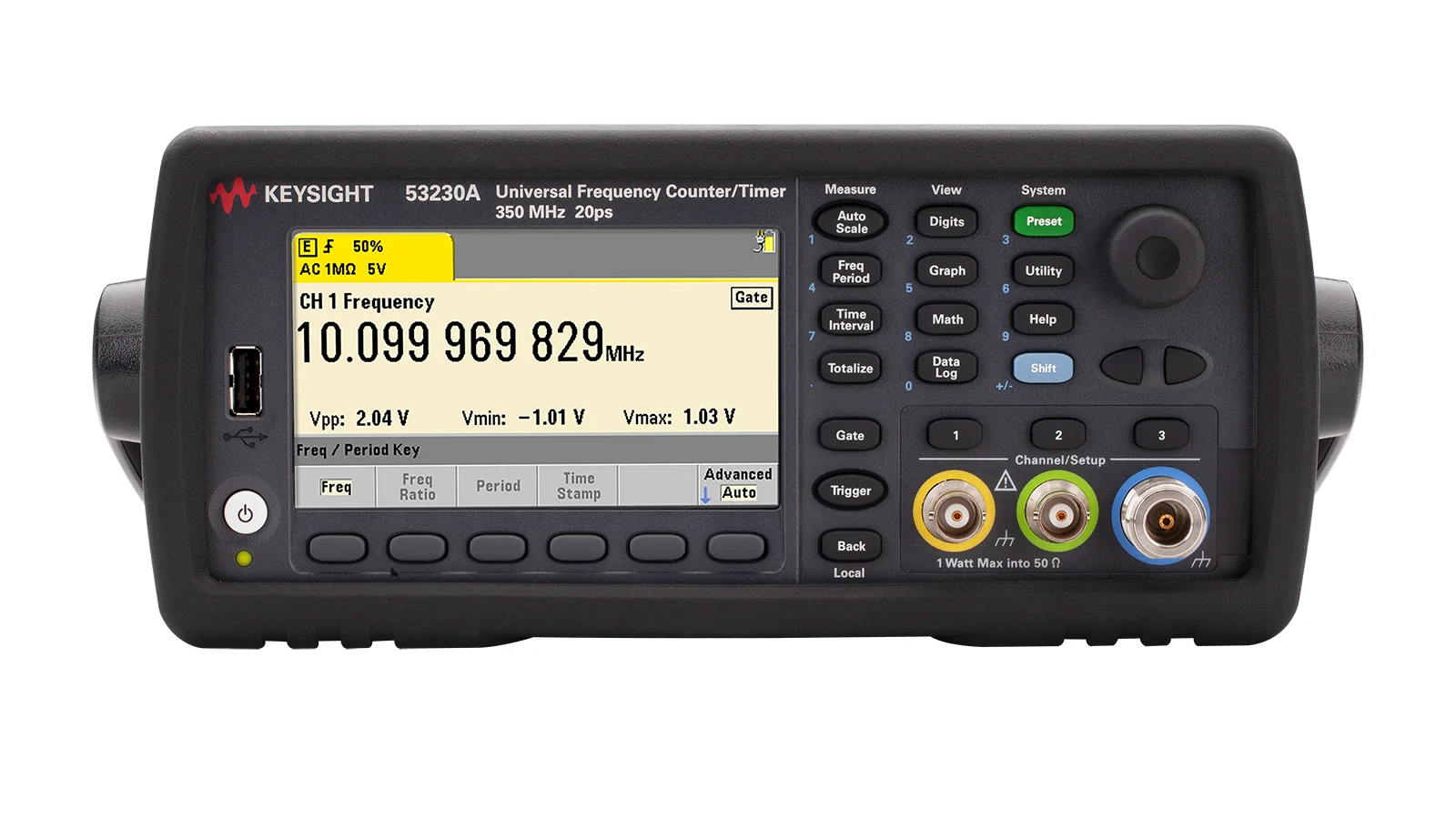

The verified specification set for the Keysight 53230A covers basic input bandwidth: 350 MHz, number of standard input channels: 2, frequency resolution: 12 digits/s, high frequency extension: Optional channel 3, 6 GHz or 15 GHz, and single time interval resolution: 20 ps. As an universal frequency counter/timer, it is suited to frequency and time-interval measurement, with related use in oscillator characterization and calibration and production testing. It is part of the 53200 Series RF and Universal Frequency Counter/Timers. Exact options, interfaces, accessories, calibration scope, and regional availability depend on the ordered configuration and should be confirmed before purchase.
Key Features
- Basic input bandwidth: 350 MHz.
- Number of standard input channels: 2.
- Frequency resolution: 12 digits/s.
- High frequency extension: Optional channel 3, 6 GHz or 15 GHz.
- Single time interval resolution: 20 ps.
- Internal storage: 1,000,000 readings.
Technical Specifications
| Basic input bandwidth | 350 MHz |
|---|---|
| Number of standard input channels | 2 |
| frequency resolution | 12 digits/s |
| high frequency extension | Optional channel 3, 6 GHz or 15 GHz |
| Single time interval resolution | 20 ps |
| internal storage | 1,000,000 readings |
| Communication interface | LAN/LXI, USB, GPIB |
| Continuous gap-free measurement | Supported |
Typical Applications
- Frequency and time-interval measurement
- Oscillator characterization
- Calibration and production testing
Selection Notes
Evaluate whether the Keysight 53230A meets the application by comparing basic input bandwidth (350 MHz) and number of standard input channels (2). In addition, compare frequency range, time-base performance, resolution, channel and input options, and required calibration coverage. Confirm regional availability, calibration scope, included items, and delivery requirements before ordering.
Frequently Asked Questions
What is the Keysight 53230A?
The Keysight 53230A is an universal frequency counter/timer intended for professional test and measurement applications.
What are key specifications of the 53230A?
Key verified specifications include basic input bandwidth: 350 MHz and number of standard input channels: 2. Review the full table for model-specific details.
Can Hoyu Instruments quote a configured Keysight 53230A?
Yes. Supply the required options, interfaces, accessories, calibration scope, quantity, and destination so Hoyu Instruments can prepare a configuration-specific quotation.
