Description
Product Overview

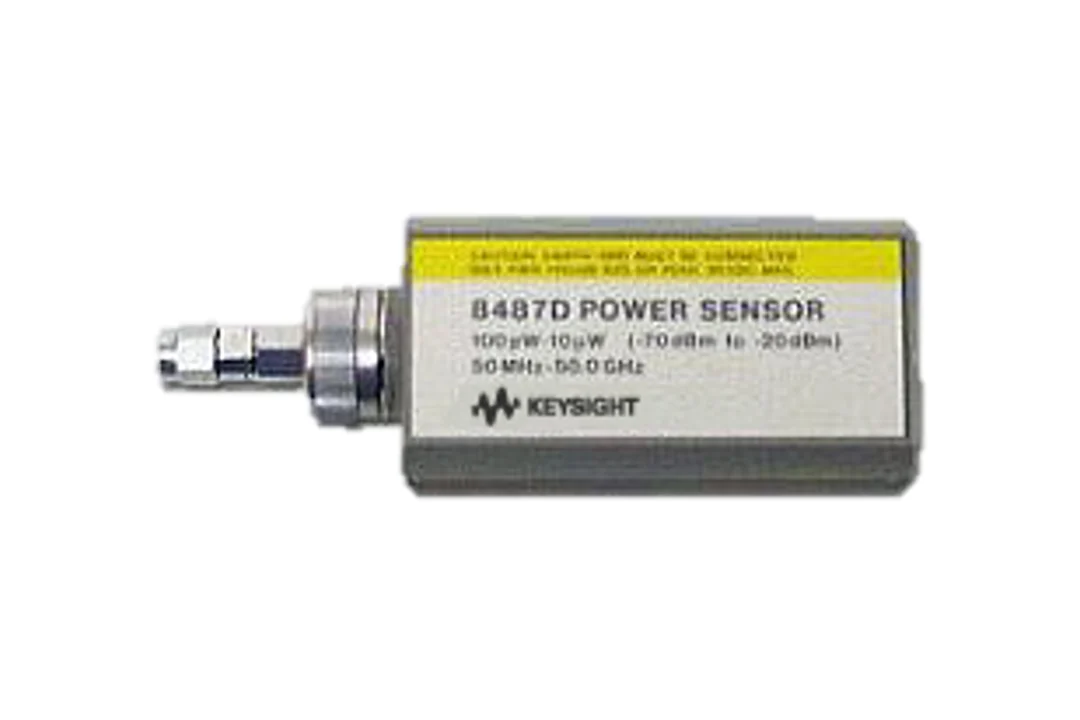

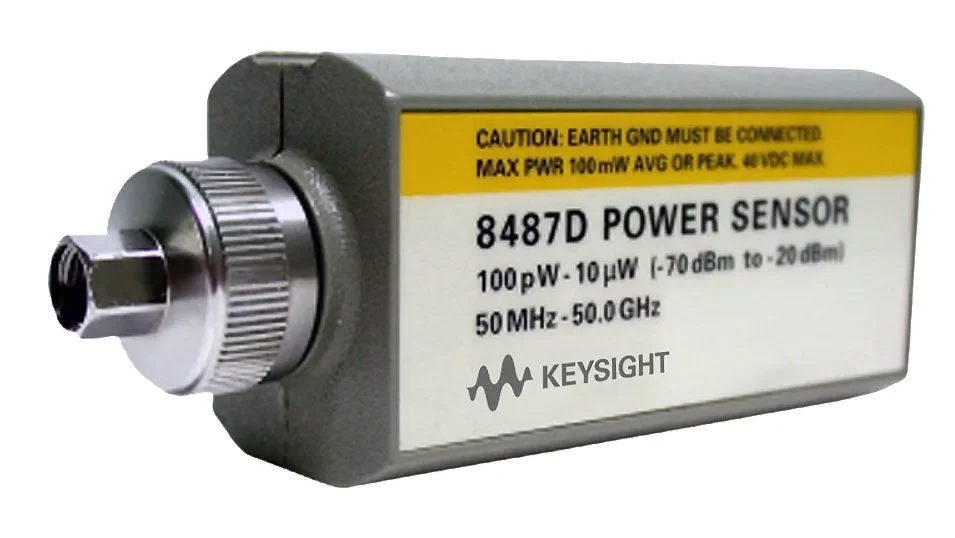

For RF and microwave power measurement, the Keysight 8487D combines frequency range: 50 MHz to 50 GHz, average power range: −70 to −20 dBm, RF interface: 2.4 mm male, measurement type: Average/CW only, and sensor type: Coaxial Diode Average Power Sensor in a coaxial diode average power sensor platform. It is part of the 8480 Series Diode and Waveguide Power Sensors. It can also be evaluated for wireless device characterization and calibration and production testing. Exact options, interfaces, accessories, calibration scope, and regional availability depend on the ordered configuration and should be confirmed before purchase.
Key Features
- Frequency range: 50 MHz to 50 GHz.
- Average power range: −70 to −20 dBm.
- RF interface: 2.4 mm male.
- Measurement type: Average/CW only.
- Sensor type: Coaxial Diode Average Power Sensor.
- Power meter compatibility: Designated models of EPM, EPM-P, P-Series and E1416A.
Technical Specifications
| frequency range | 50 MHz to 50 GHz |
|---|---|
| average power range | −70 to −20 dBm |
| RF interface | 2.4 mm male |
| Measurement type | Average/CW only |
| Sensor type | Coaxial Diode Average Power Sensor |
| Power meter compatibility | Designated models of EPM, EPM-P, P-Series and E1416A |
| Reference calibration | 50 MHz; Type D uses 11708A 30 dB reference attenuator |
Typical Applications
- RF and microwave power measurement
- Wireless device characterization
- Calibration and production testing
Selection Notes
Start selection of the Keysight 8487D by checking the verified frequency range (50 MHz to 50 GHz) and average power range (−70 to −20 dBm). Then confirm frequency and power range, sensor or meter compatibility, connector type, measurement speed, and calibration coverage. Confirm regional availability, calibration scope, included items, and delivery requirements before ordering.
Frequently Asked Questions
What is the Keysight 8487D?
The Keysight 8487D is a coaxial diode average power sensor intended for professional test and measurement applications.
What are key specifications of the 8487D?
Key verified specifications include frequency range: 50 MHz to 50 GHz and average power range: −70 to −20 dBm. Review the full table for model-specific details.
What information is needed to quote the 8487D?
Provide the intended application, configuration or options, quantity, delivery country, and any calibration or accessory requirements so the quotation can be checked accurately.
