Description
Product Overview

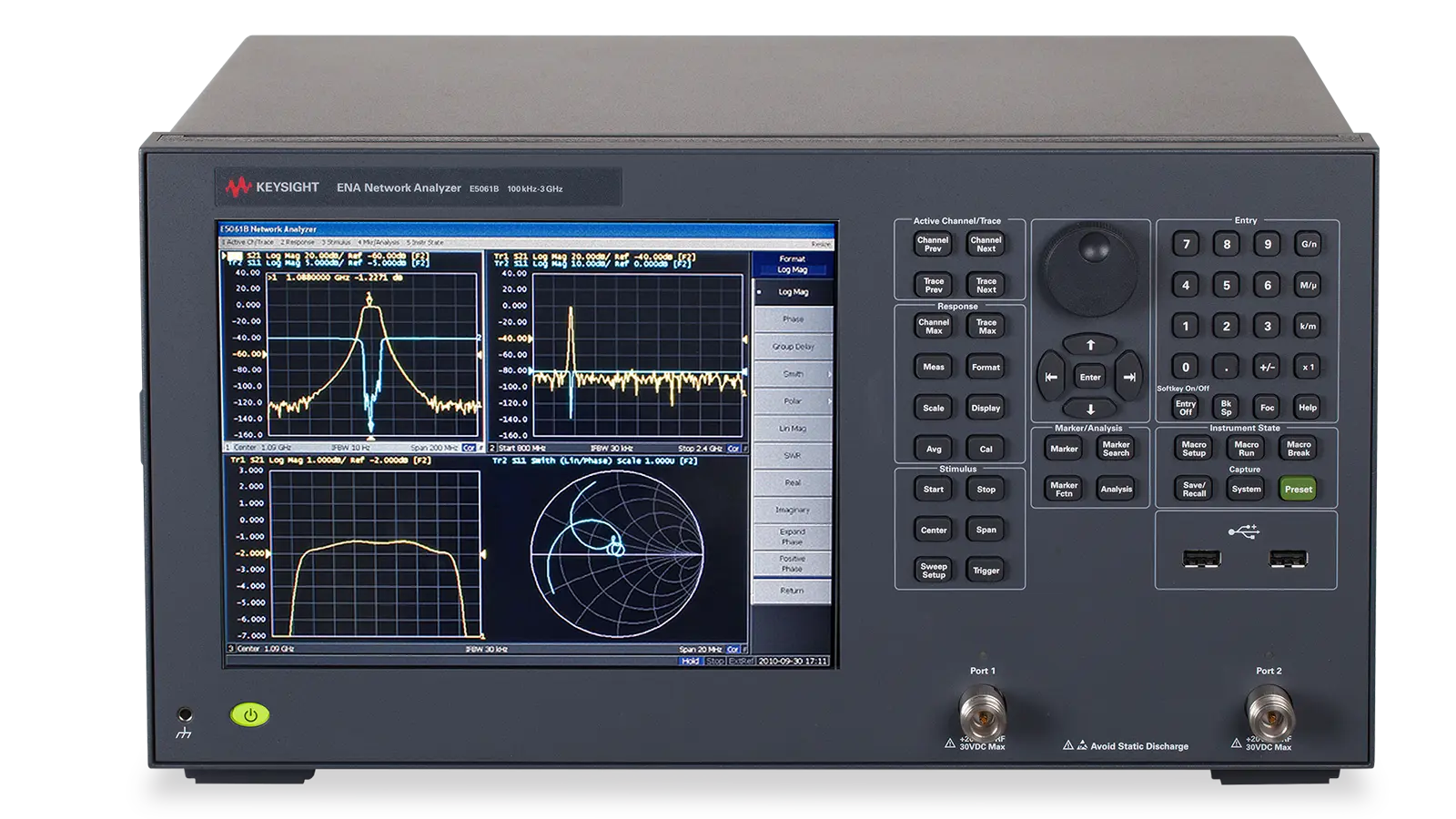

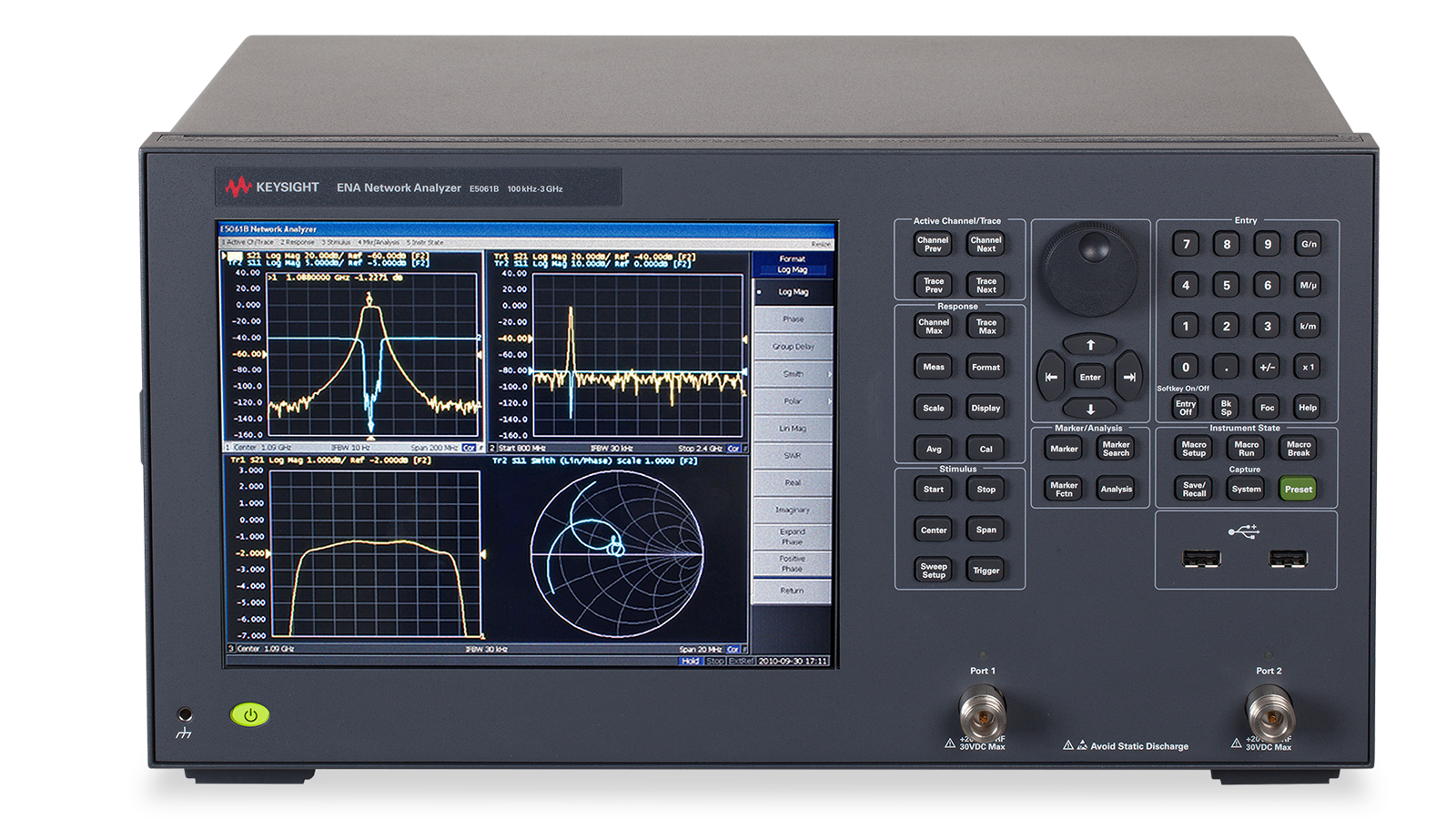

The Keysight E5061B is a vector network analyzer specified for RF component characterization. It is part of the E5061B ENA Vector Network Analyzer. Verified model data includes frequency range: 5 Hz to 3 GHz (as configured), highest frequency: 3 GHz, built-in signal source: 1, test port: 2, and port/Impedance: 50 Ω / 75 Ω configurations; some configurations support impedance analysis. The same capabilities support antenna and filter testing and microwave design verification. Exact options, interfaces, accessories, calibration scope, and regional availability depend on the ordered configuration and should be confirmed before purchase.
Key Features
- Frequency range: 5 Hz to 3 GHz (as configured).
- Highest frequency: 3 GHz.
- Built-in signal source: 1.
- Test port: 2.
- Port/Impedance: 50 Ω / 75 Ω configurations; some configurations support impedance analysis.
- Dynamic range: Wide dynamic range; specific values vary with frequency, port and configuration.
Technical Specifications
| frequency range | 5 Hz to 3 GHz (as configured) |
|---|---|
| highest frequency | 3 GHz |
| Built-in signal source | 1 |
| test port | 2 |
| Port/Impedance | 50 Ω / 75 Ω configurations; some configurations support impedance analysis |
| dynamic range | Wide dynamic range; specific values vary with frequency, port and configuration |
Typical Applications
- RF component characterization
- Antenna and filter testing
- Microwave design verification
Selection Notes
For the Keysight E5061B, confirm frequency range, port count, dynamic range, source power, calibration method, test set, cables, and application software. Use the verified frequency range (5 Hz to 3 GHz (as configured)) and highest frequency (3 GHz) as initial selection checks. Confirm regional availability, calibration scope, included items, and delivery requirements before ordering.
Frequently Asked Questions
What is the Keysight E5061B?
The Keysight E5061B is a vector network analyzer intended for professional test and measurement applications.
What are key specifications of the E5061B?
Key verified specifications include frequency range: 5 Hz to 3 GHz (as configured) and highest frequency: 3 GHz. Review the full table for model-specific details.
How can I request a quote for the Keysight E5061B?
Send the required configuration, quantity, destination, and calibration or accessory requirements to Hoyu Instruments for a detailed quotation.
