Description
Product Overview

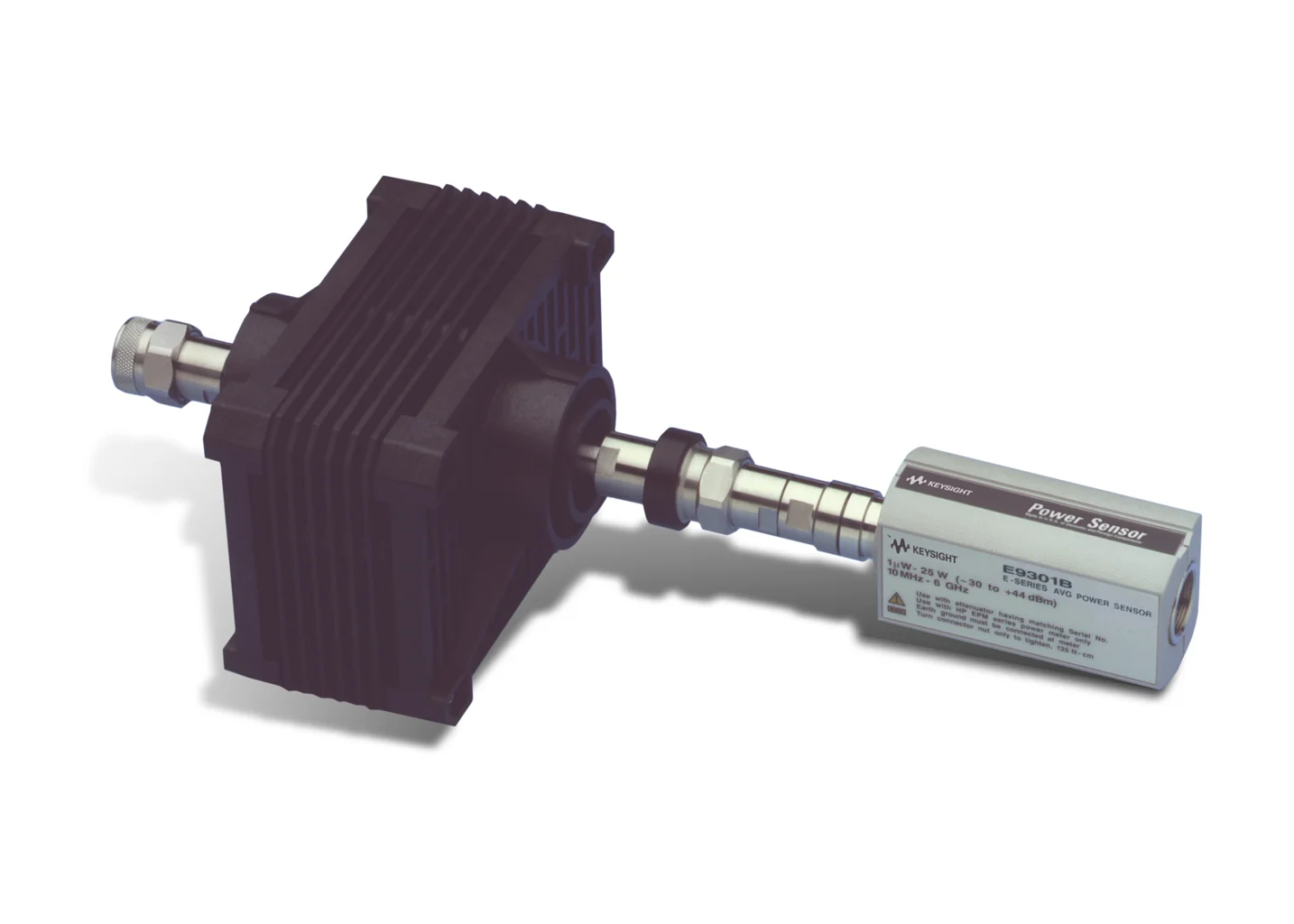

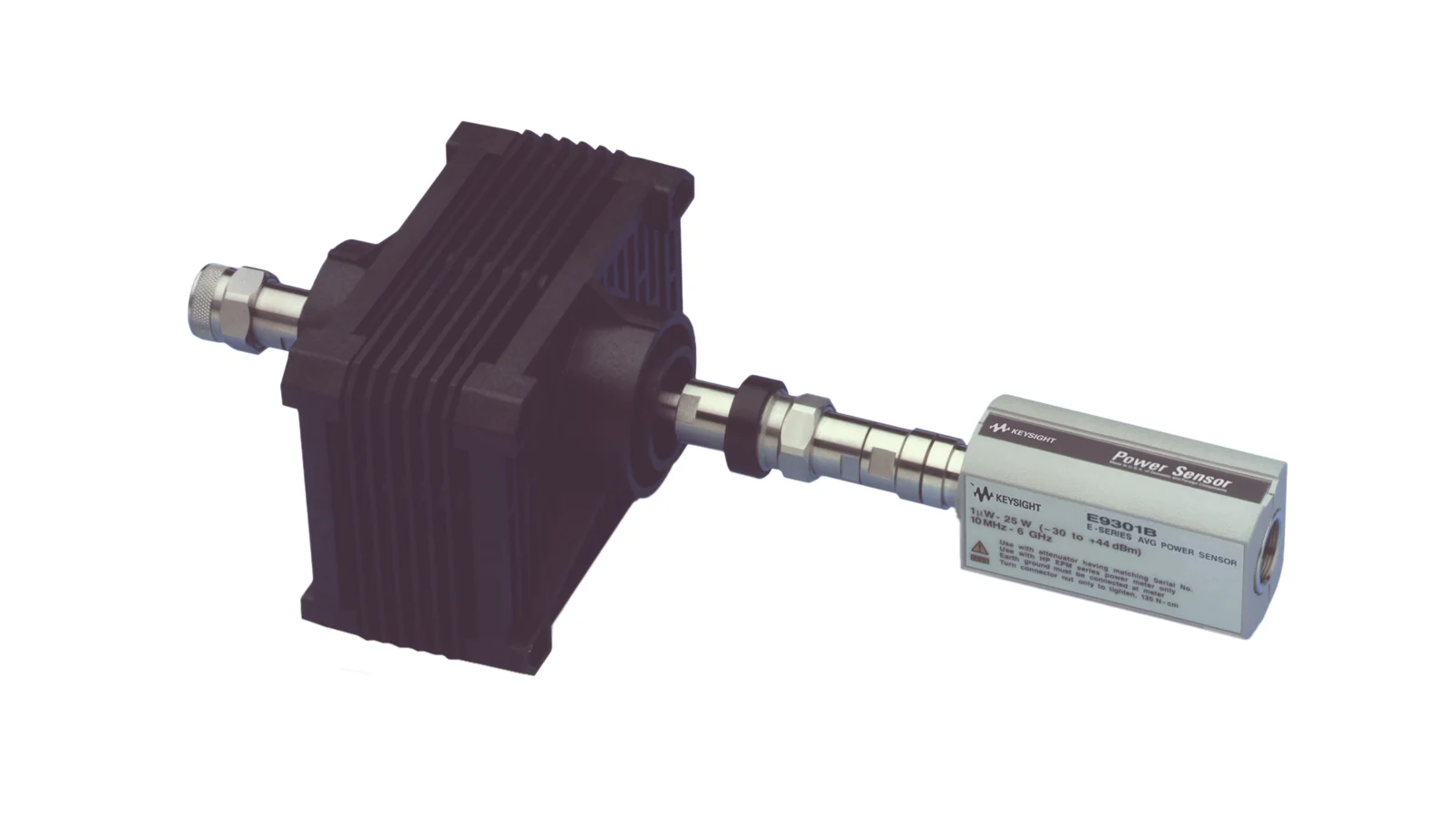

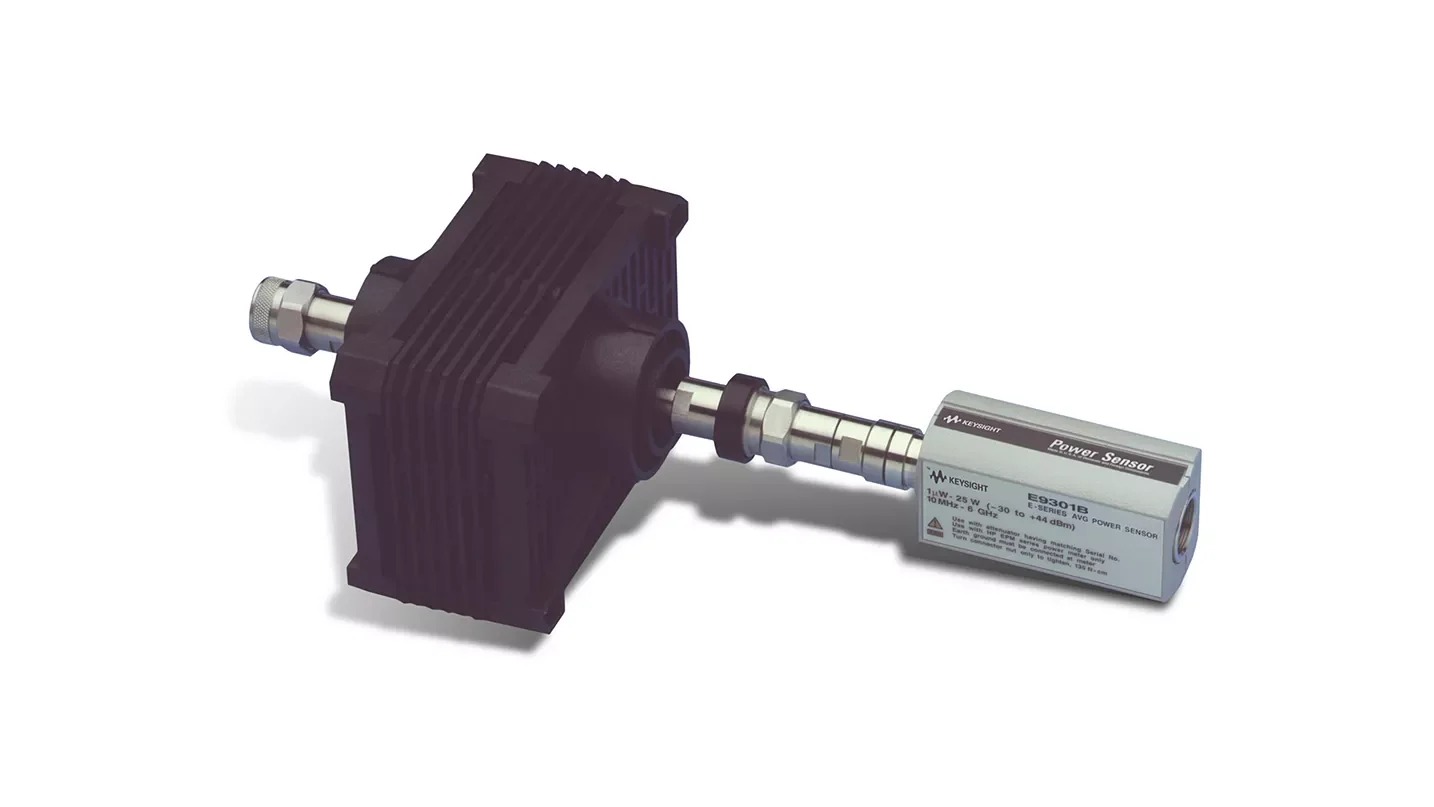

Keysight positions the E9301B as a true average power sensor for RF and microwave power measurement. It is part of the E-Series E9300 Average Power Sensors. Model-specific evidence confirms frequency range: 10 MHz to 6 GHz, power range: −30 to +44 dBm, dynamic range: 74 dB, connector: Type-N male connector, and measurement type: True average power/CW, supporting engineering work such as wireless device characterization and calibration and production testing. Exact options, interfaces, accessories, calibration scope, and regional availability depend on the ordered configuration and should be confirmed before purchase.
Key Features
- Frequency range: 10 MHz to 6 GHz.
- Power range: −30 to +44 dBm.
- Dynamic range: 74 dB.
- Connector: Type-N male connector.
- Measurement type: True average power/CW.
- Sensing structure: Dual pass diode.
Technical Specifications
| frequency range | 10 MHz to 6 GHz |
|---|---|
| Power range | −30 to +44 dBm |
| dynamic range | 74 dB |
| connector | Type-N male connector |
| Measurement type | True average power/CW |
| Sensing structure | Dual pass diode |
| Fastest reading speed | 400 (with E4416A) readings/s |
Typical Applications
- RF and microwave power measurement
- Wireless device characterization
- Calibration and production testing
Selection Notes
The first configuration checks for the Keysight E9301B are frequency range (10 MHz to 6 GHz) and power range (−30 to +44 dBm). For a complete selection, confirm frequency and power range, sensor or meter compatibility, connector type, measurement speed, and calibration coverage. Confirm regional availability, calibration scope, included items, and delivery requirements before ordering.
Frequently Asked Questions
What is the Keysight E9301B?
The Keysight E9301B is a true average power sensor intended for professional test and measurement applications.
What are key specifications of the E9301B?
Key verified specifications include frequency range: 10 MHz to 6 GHz and power range: −30 to +44 dBm. Review the full table for model-specific details.
How should I specify the Keysight E9301B for quotation?
State the measurement requirement, selected options, quantity, destination, and calibration or accessory needs. Hoyu Instruments will use those details to confirm the configuration before quoting.
