Description
Product Overview

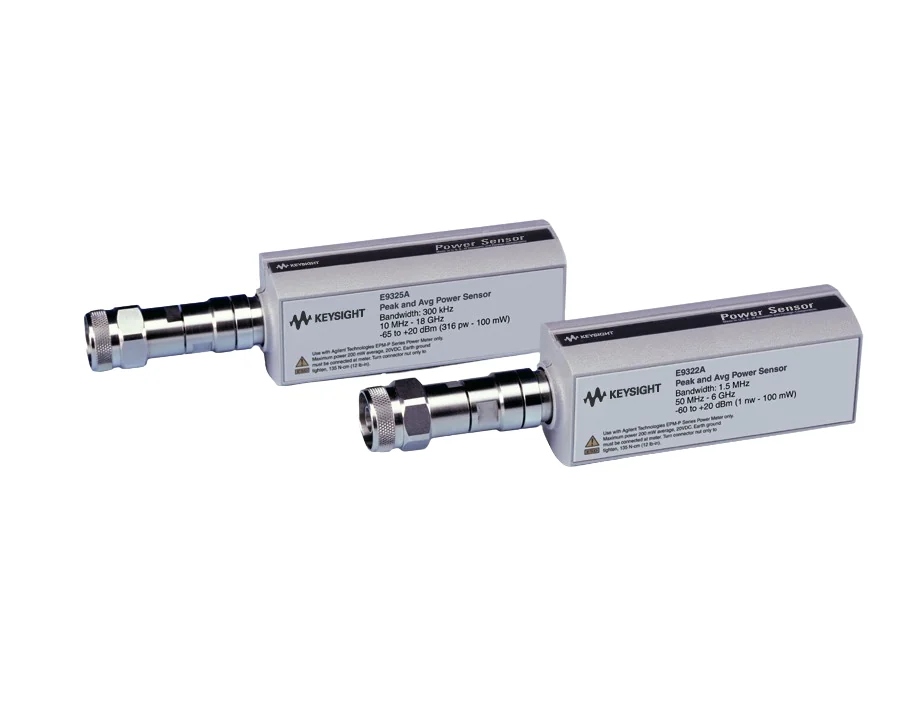

For RF and microwave power measurement, the Keysight E9322A combines frequency range: 50 MHz to 6 GHz, average mode power range: −60 to +20 dBm, maximum video bandwidth: 1.5 MHz, peak dynamic range: High: −38 to +20 dBm; Low: −39 to +20 dBm, and connector: Type-N male connector in a peak and average power sensors platform. It is part of the E-Series E9320 Peak and Average Power Sensors. It can also be evaluated for wireless device characterization and calibration and production testing. Exact options, interfaces, accessories, calibration scope, and regional availability depend on the ordered configuration and should be confirmed before purchase.
Key Features
- Frequency range: 50 MHz to 6 GHz.
- Average mode power range: −60 to +20 dBm.
- Maximum video bandwidth: 1.5 MHz.
- Peak dynamic range: High: −38 to +20 dBm; Low: −39 to +20 dBm.
- Connector: Type-N male connector.
- Measurement type: Peak, average power / CW.
Technical Specifications
| frequency range | 50 MHz to 6 GHz |
|---|---|
| Average mode power range | −60 to +20 dBm |
| Maximum video bandwidth | 1.5 MHz |
| Peak dynamic range | High: −38 to +20 dBm; Low: −39 to +20 dBm |
| connector | Type-N male connector |
| Measurement type | Peak, average power / CW |
| Maximum calibrated reading speed | 1000 readings/s |
Typical Applications
- RF and microwave power measurement
- Wireless device characterization
- Calibration and production testing
Selection Notes
Start selection of the Keysight E9322A by checking the verified frequency range (50 MHz to 6 GHz) and average mode power range (−60 to +20 dBm). Then confirm frequency and power range, sensor or meter compatibility, connector type, measurement speed, and calibration coverage. Confirm regional availability, calibration scope, included items, and delivery requirements before ordering.
Frequently Asked Questions
What is the Keysight E9322A?
The Keysight E9322A is a peak and average power sensors intended for professional test and measurement applications.
What are key specifications of the E9322A?
Key verified specifications include frequency range: 50 MHz to 6 GHz and average mode power range: −60 to +20 dBm. Review the full table for model-specific details.
What information is needed to quote the E9322A?
Provide the intended application, configuration or options, quantity, delivery country, and any calibration or accessory requirements so the quotation can be checked accurately.
