Description
Product Overview

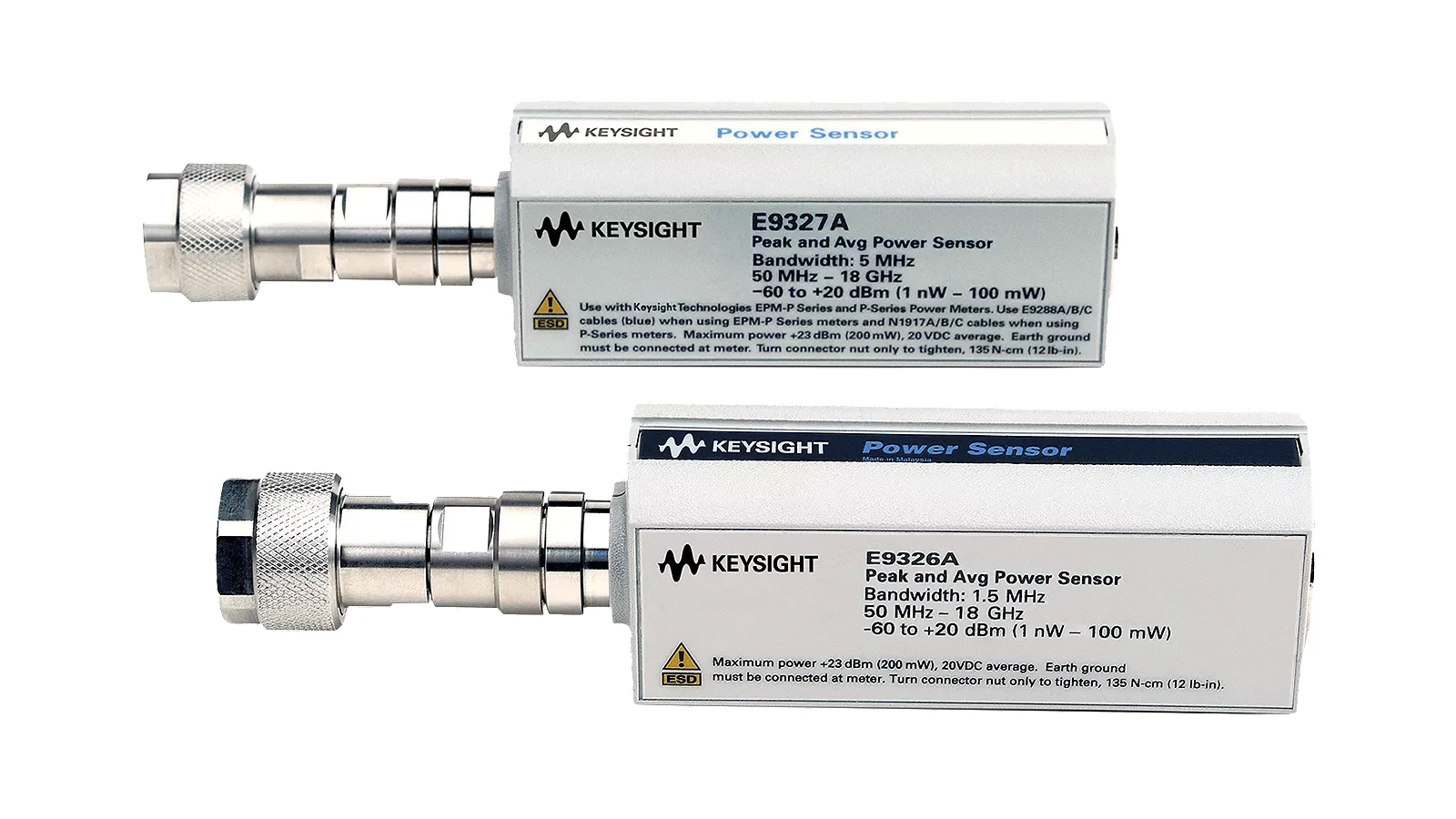

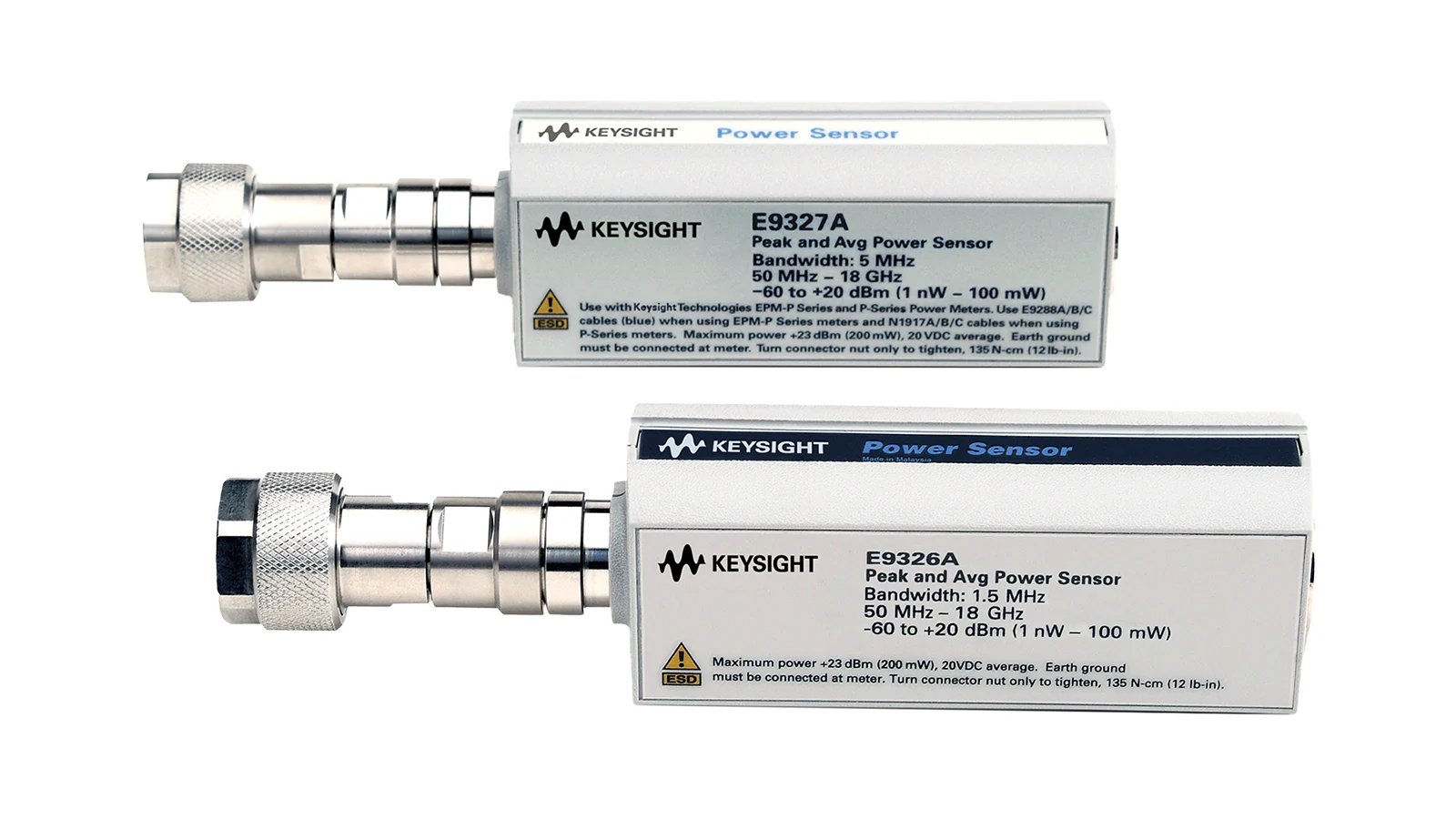

Keysight positions the E9326A as a peak and average power sensors for RF and microwave power measurement. It is part of the E-Series E9320 Peak and Average Power Sensors. Model-specific evidence confirms frequency range: 50 MHz to 18 GHz, average mode power range: −60 to +20 dBm, maximum video bandwidth: 1.5 MHz, peak dynamic range: High: −38 to +20 dBm; Low: −39 to +20 dBm, and connector: Type-N male connector, supporting engineering work such as wireless device characterization and calibration and production testing. Exact options, interfaces, accessories, calibration scope, and regional availability depend on the ordered configuration and should be confirmed before purchase.
Key Features
- Frequency range: 50 MHz to 18 GHz.
- Average mode power range: −60 to +20 dBm.
- Maximum video bandwidth: 1.5 MHz.
- Peak dynamic range: High: −38 to +20 dBm; Low: −39 to +20 dBm.
- Connector: Type-N male connector.
- Measurement type: Peak, average power / CW.
Technical Specifications
| frequency range | 50 MHz to 18 GHz |
|---|---|
| Average mode power range | −60 to +20 dBm |
| Maximum video bandwidth | 1.5 MHz |
| Peak dynamic range | High: −38 to +20 dBm; Low: −39 to +20 dBm |
| connector | Type-N male connector |
| Measurement type | Peak, average power / CW |
| Maximum calibrated reading speed | 1000 readings/s |
Typical Applications
- RF and microwave power measurement
- Wireless device characterization
- Calibration and production testing
Selection Notes
The first configuration checks for the Keysight E9326A are frequency range (50 MHz to 18 GHz) and average mode power range (−60 to +20 dBm). For a complete selection, confirm frequency and power range, sensor or meter compatibility, connector type, measurement speed, and calibration coverage. Confirm regional availability, calibration scope, included items, and delivery requirements before ordering.
Frequently Asked Questions
What is the Keysight E9326A?
The Keysight E9326A is a peak and average power sensors intended for professional test and measurement applications.
What are key specifications of the E9326A?
Key verified specifications include frequency range: 50 MHz to 18 GHz and average mode power range: −60 to +20 dBm. Review the full table for model-specific details.
How should I specify the Keysight E9326A for quotation?
State the measurement requirement, selected options, quantity, destination, and calibration or accessory needs. Hoyu Instruments will use those details to confirm the configuration before quoting.
