Description
Product Overview

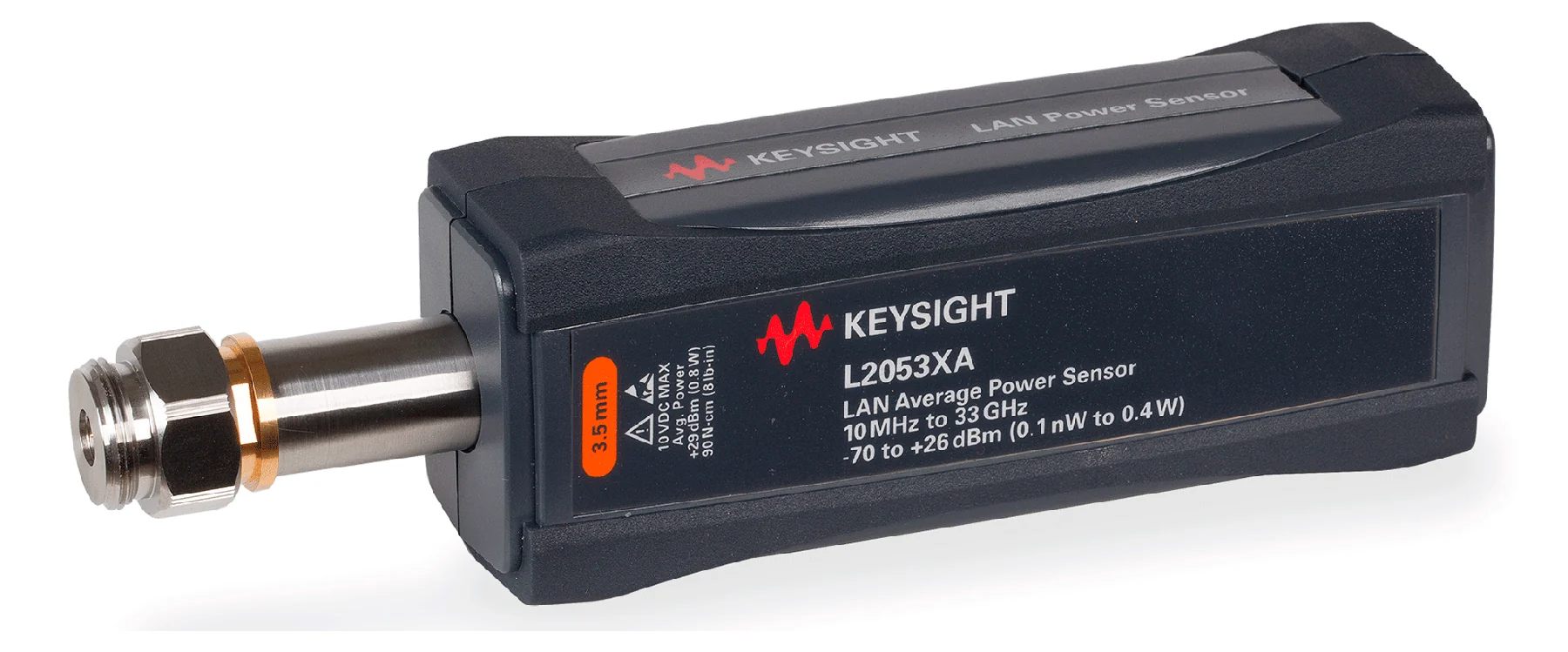

Keysight positions the L2053XA as an LAN wide dynamic range average power sensor for RF and microwave power measurement. It is part of the L2050 X-Series LAN Wide-Dynamic-Range Power Sensors. Model-specific evidence confirms frequency range: 10 MHz to 33 GHz, average mode power range: −70 to +26 dBm, RF connector: 3.5 mm male, connection method: LAN, and measurement type: Wide dynamic range average power, supporting engineering work such as wireless device characterization and calibration and production testing. Exact options, interfaces, accessories, calibration scope, and regional availability depend on the ordered configuration and should be confirmed before purchase.
Key Features
- Frequency range: 10 MHz to 33 GHz.
- Average mode power range: −70 to +26 dBm.
- RF connector: 3.5 mm male.
- Connection method: LAN.
- Measurement type: Wide dynamic range average power.
- Continuous sampling rate: 20 MSa/s.
Technical Specifications
| frequency range | 10 MHz to 33 GHz |
|---|---|
| Average mode power range | −70 to +26 dBm |
| RF connector | 3.5 mm male |
| Connection method | LAN |
| Measurement type | Wide dynamic range average power |
| continuous sampling rate | 20 MSa/s |
| Zeroing and Calibration | Built-in |
Typical Applications
- RF and microwave power measurement
- Wireless device characterization
- Calibration and production testing
Selection Notes
The first configuration checks for the Keysight L2053XA are frequency range (10 MHz to 33 GHz) and average mode power range (−70 to +26 dBm). For a complete selection, confirm frequency and power range, sensor or meter compatibility, connector type, measurement speed, and calibration coverage. Confirm regional availability, calibration scope, included items, and delivery requirements before ordering.
Frequently Asked Questions
What is the Keysight L2053XA?
The Keysight L2053XA is an LAN wide dynamic range average power sensor intended for professional test and measurement applications.
What are key specifications of the L2053XA?
Key verified specifications include frequency range: 10 MHz to 33 GHz and average mode power range: −70 to +26 dBm. Review the full table for model-specific details.
How should I specify the Keysight L2053XA for quotation?
State the measurement requirement, selected options, quantity, destination, and calibration or accessory needs. Hoyu Instruments will use those details to confirm the configuration before quoting.
