Description
Product Overview

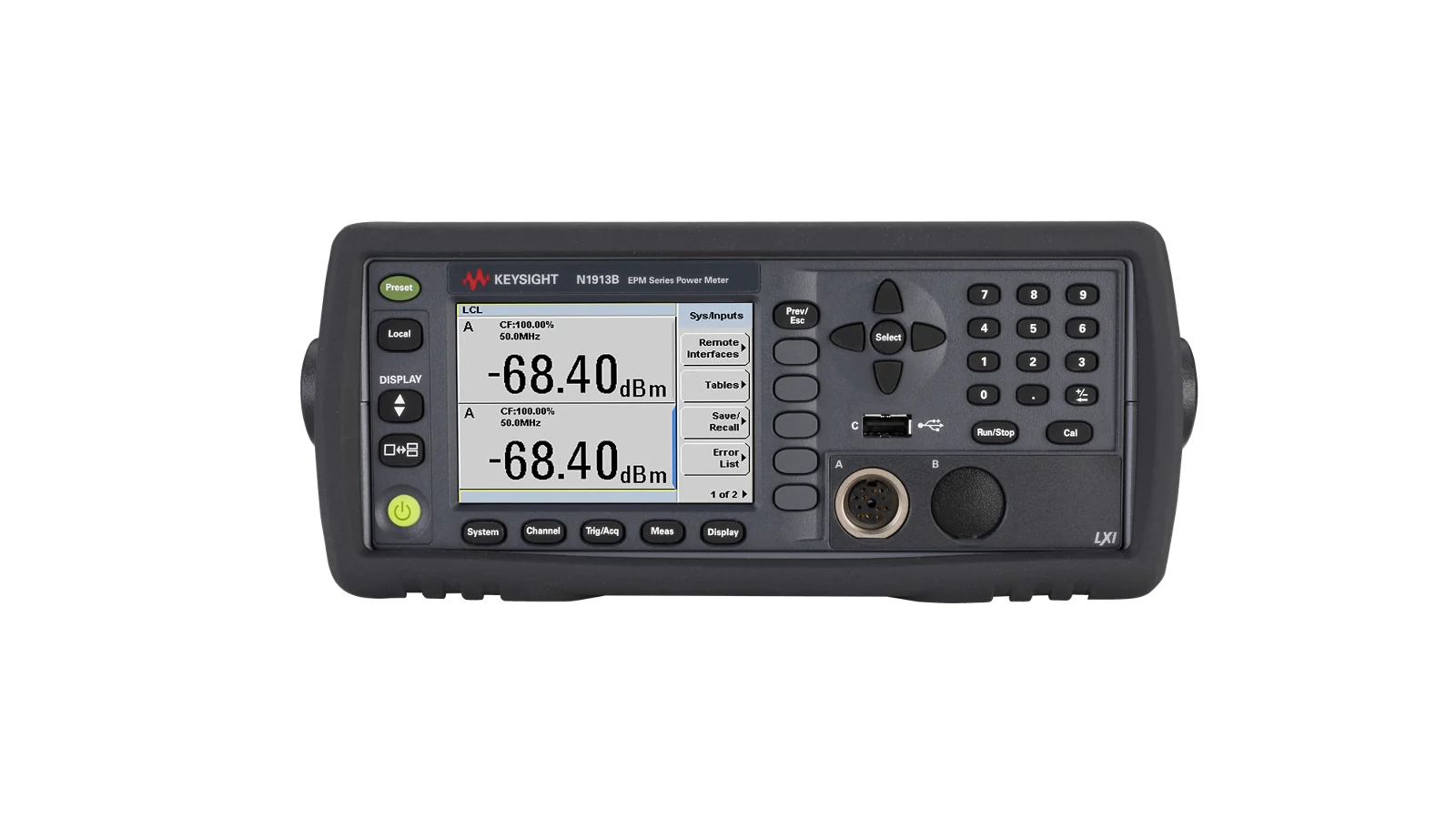

For RF and microwave power measurement, the Keysight N1913B combines main sensor channel: 1 channel, maximum channel after USB expansion: 3 channels, system frequency coverage: DC to 220 GHz (sensor dependent), system dynamic range: −70 to +44 dBm (sensor dependent), and measurement type: average power in an EPM average power meter platform. It is part of the Keysight EPM and P-Series Power Meters. It can also be evaluated for wireless device characterization and calibration and production testing. Exact options, interfaces, accessories, calibration scope, and regional availability depend on the ordered configuration and should be confirmed before purchase.
Key Features
- Main sensor channel: 1 channel.
- Maximum channel after USB expansion: 3 channels.
- System frequency coverage: DC to 220 GHz (sensor dependent).
- System dynamic range: −70 to +44 dBm (sensor dependent).
- Measurement type: average power.
- Interface: LAN/LXI-C, USB, GPIB, USB Host, VGA.
Technical Specifications
| main sensor channel | 1 channel |
|---|---|
| Maximum channel after USB expansion | 3 channels |
| System frequency coverage | DC to 220 GHz (sensor dependent) |
| System dynamic range | −70 to +44 dBm (sensor dependent) |
| Measurement type | average power |
| interface | LAN/LXI-C, USB, GPIB, USB Host, VGA |
Typical Applications
- RF and microwave power measurement
- Wireless device characterization
- Calibration and production testing
Selection Notes
Start selection of the Keysight N1913B by checking the verified main sensor channel (1 channel) and maximum channel after USB expansion (3 channels). Then confirm frequency and power range, sensor or meter compatibility, connector type, measurement speed, and calibration coverage. Confirm regional availability, calibration scope, included items, and delivery requirements before ordering.
Frequently Asked Questions
What is the Keysight N1913B?
The Keysight N1913B is an EPM average power meter intended for professional test and measurement applications.
What are key specifications of the N1913B?
Key verified specifications include main sensor channel: 1 channel and maximum channel after USB expansion: 3 channels. Review the full table for model-specific details.
What information is needed to quote the N1913B?
Provide the intended application, configuration or options, quantity, delivery country, and any calibration or accessory requirements so the quotation can be checked accurately.
