Description
Product Overview

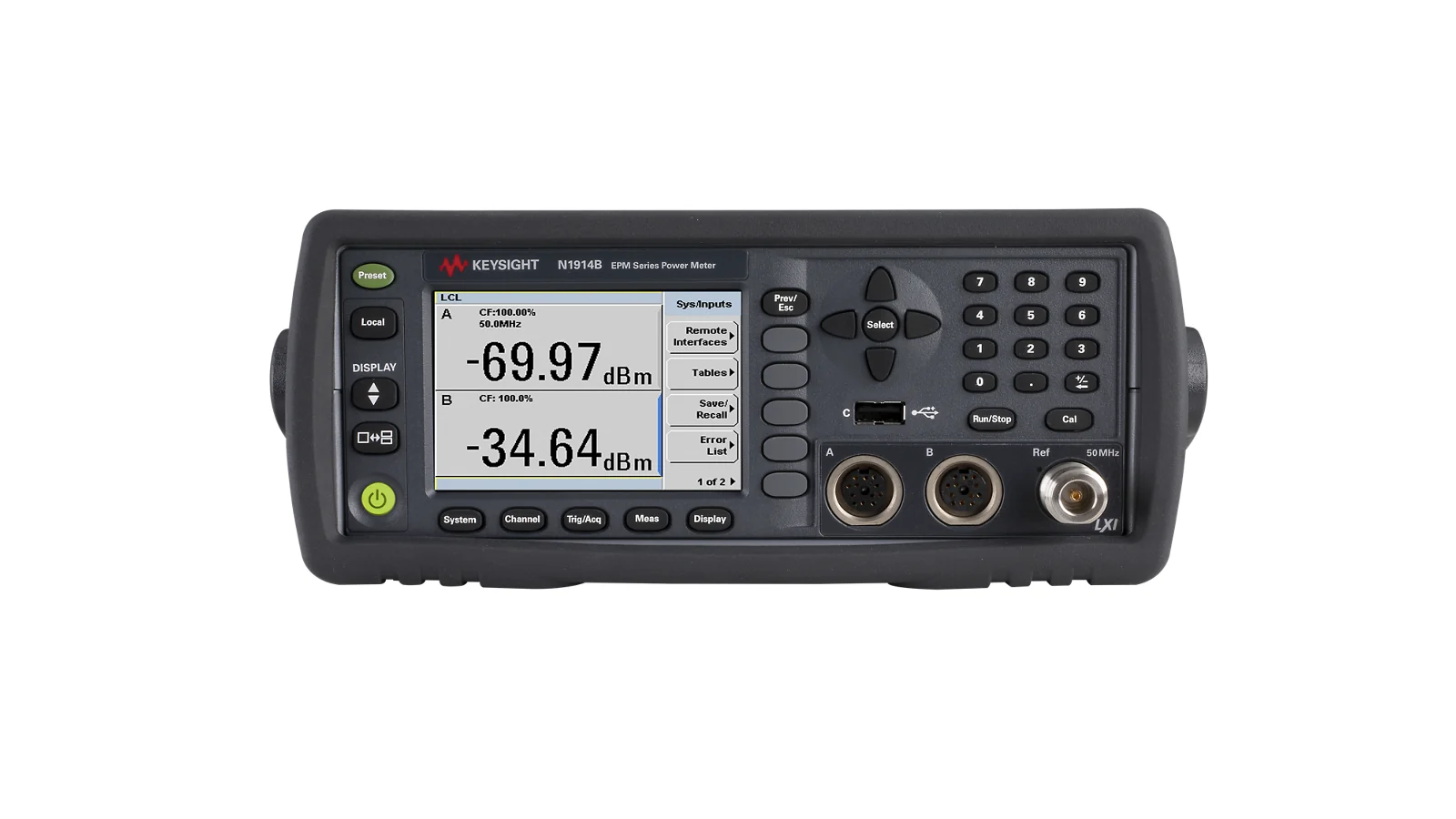

Keysight positions the N1914B as an EPM average power meter for RF and microwave power measurement. It is part of the Keysight EPM and P-Series Power Meters. Model-specific evidence confirms main sensor channel: 2 channels, maximum channel after USB expansion: 4 channels, system frequency coverage: DC to 220 GHz (sensor dependent), system dynamic range: −70 to +44 dBm (sensor dependent), and measurement type: average power, supporting engineering work such as wireless device characterization and calibration and production testing. Exact options, interfaces, accessories, calibration scope, and regional availability depend on the ordered configuration and should be confirmed before purchase.
Key Features
- Main sensor channel: 2 channels.
- Maximum channel after USB expansion: 4 channels.
- System frequency coverage: DC to 220 GHz (sensor dependent).
- System dynamic range: −70 to +44 dBm (sensor dependent).
- Measurement type: average power.
- Interface: LAN/LXI-C, USB, GPIB, USB Host, VGA.
Technical Specifications
| main sensor channel | 2 channels |
|---|---|
| Maximum channel after USB expansion | 4 channels |
| System frequency coverage | DC to 220 GHz (sensor dependent) |
| System dynamic range | −70 to +44 dBm (sensor dependent) |
| Measurement type | average power |
| interface | LAN/LXI-C, USB, GPIB, USB Host, VGA |
Typical Applications
- RF and microwave power measurement
- Wireless device characterization
- Calibration and production testing
Selection Notes
The first configuration checks for the Keysight N1914B are main sensor channel (2 channels) and maximum channel after USB expansion (4 channels). For a complete selection, confirm frequency and power range, sensor or meter compatibility, connector type, measurement speed, and calibration coverage. Confirm regional availability, calibration scope, included items, and delivery requirements before ordering.
Frequently Asked Questions
What is the Keysight N1914B?
The Keysight N1914B is an EPM average power meter intended for professional test and measurement applications.
What are key specifications of the N1914B?
Key verified specifications include main sensor channel: 2 channels and maximum channel after USB expansion: 4 channels. Review the full table for model-specific details.
How should I specify the Keysight N1914B for quotation?
State the measurement requirement, selected options, quantity, destination, and calibration or accessory needs. Hoyu Instruments will use those details to confirm the configuration before quoting.
