Description
Product Overview

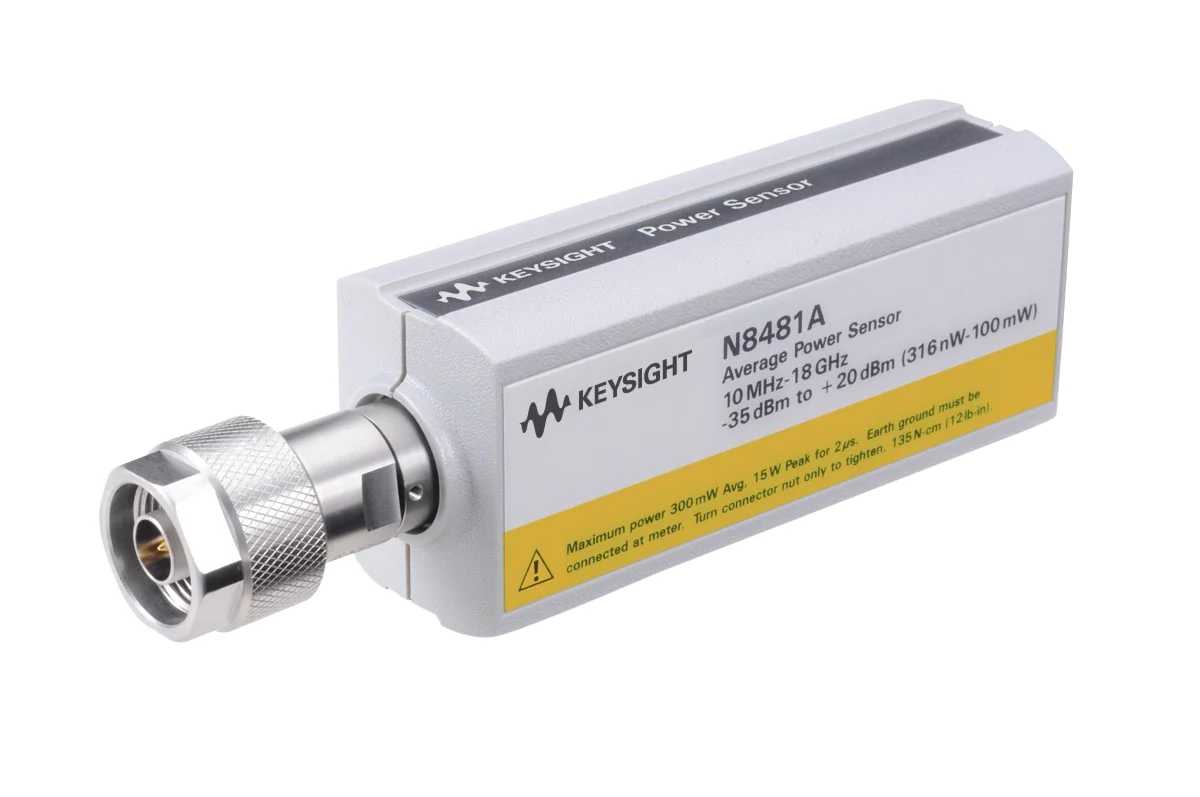

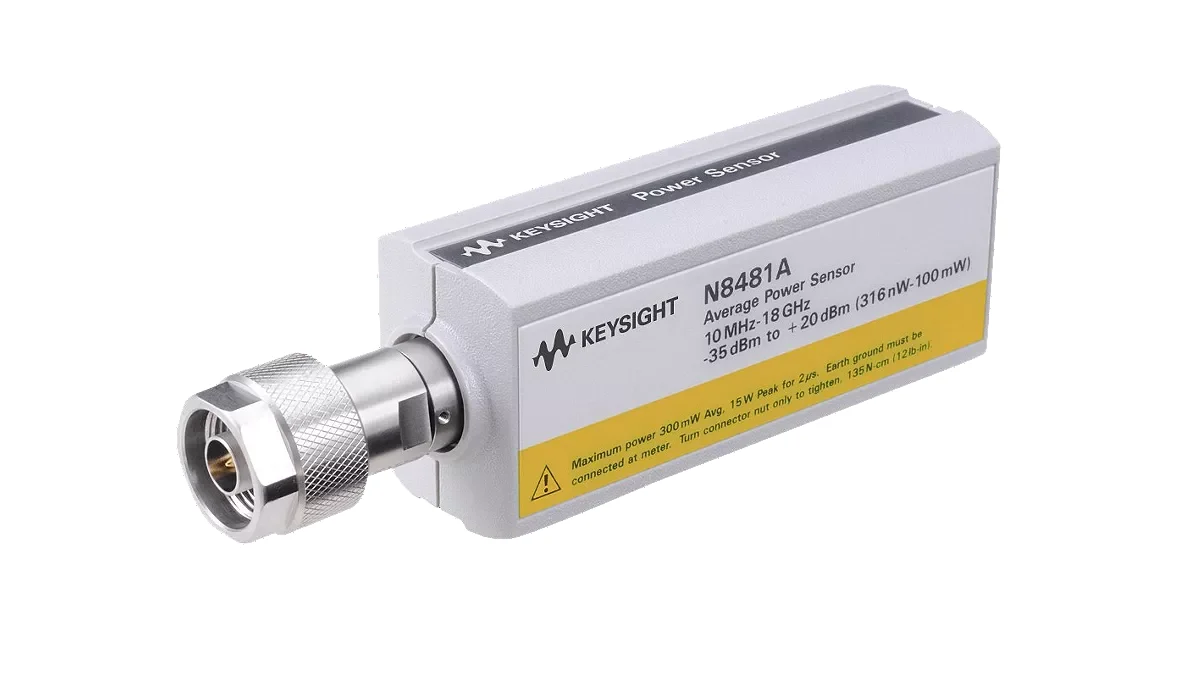

Keysight positions the N8481A as a thermocouple average power sensor for RF and microwave power measurement. It is part of the N8480 Series Thermocouple Power Sensors. Model-specific evidence confirms frequency range: 10 MHz to 18 GHz, average power range: −35 to +20 dBm, RF interface: Type-N male connector, sensing technology: Thermocouple/True Average Power, and standard calibration data: EEPROM autoload, supporting engineering work such as wireless device characterization and calibration and production testing. Exact options, interfaces, accessories, calibration scope, and regional availability depend on the ordered configuration and should be confirmed before purchase.
Key Features
- Frequency range: 10 MHz to 18 GHz.
- Average power range: −35 to +20 dBm.
- RF interface: Type-N male connector.
- Sensing technology: Thermocouple/True Average Power.
- Standard calibration data: EEPROM autoload.
- Power linearity: <1% (model/condition related).
Technical Specifications
| frequency range | 10 MHz to 18 GHz |
|---|---|
| average power range | −35 to +20 dBm |
| RF interface | Type-N male connector |
| Sensing technology | Thermocouple/True Average Power |
| Standard calibration data | EEPROM autoload |
| Power linearity | <1% (model/condition related) |
| Legacy system compatibility options | Option CFT (by model) |
Typical Applications
- RF and microwave power measurement
- Wireless device characterization
- Calibration and production testing
Selection Notes
The first configuration checks for the Keysight N8481A are frequency range (10 MHz to 18 GHz) and average power range (−35 to +20 dBm). For a complete selection, confirm frequency and power range, sensor or meter compatibility, connector type, measurement speed, and calibration coverage. Confirm regional availability, calibration scope, included items, and delivery requirements before ordering.
Frequently Asked Questions
What is the Keysight N8481A?
The Keysight N8481A is a thermocouple average power sensor intended for professional test and measurement applications.
What are key specifications of the N8481A?
Key verified specifications include frequency range: 10 MHz to 18 GHz and average power range: −35 to +20 dBm. Review the full table for model-specific details.
How should I specify the Keysight N8481A for quotation?
State the measurement requirement, selected options, quantity, destination, and calibration or accessory needs. Hoyu Instruments will use those details to confirm the configuration before quoting.
