Description
Product Overview

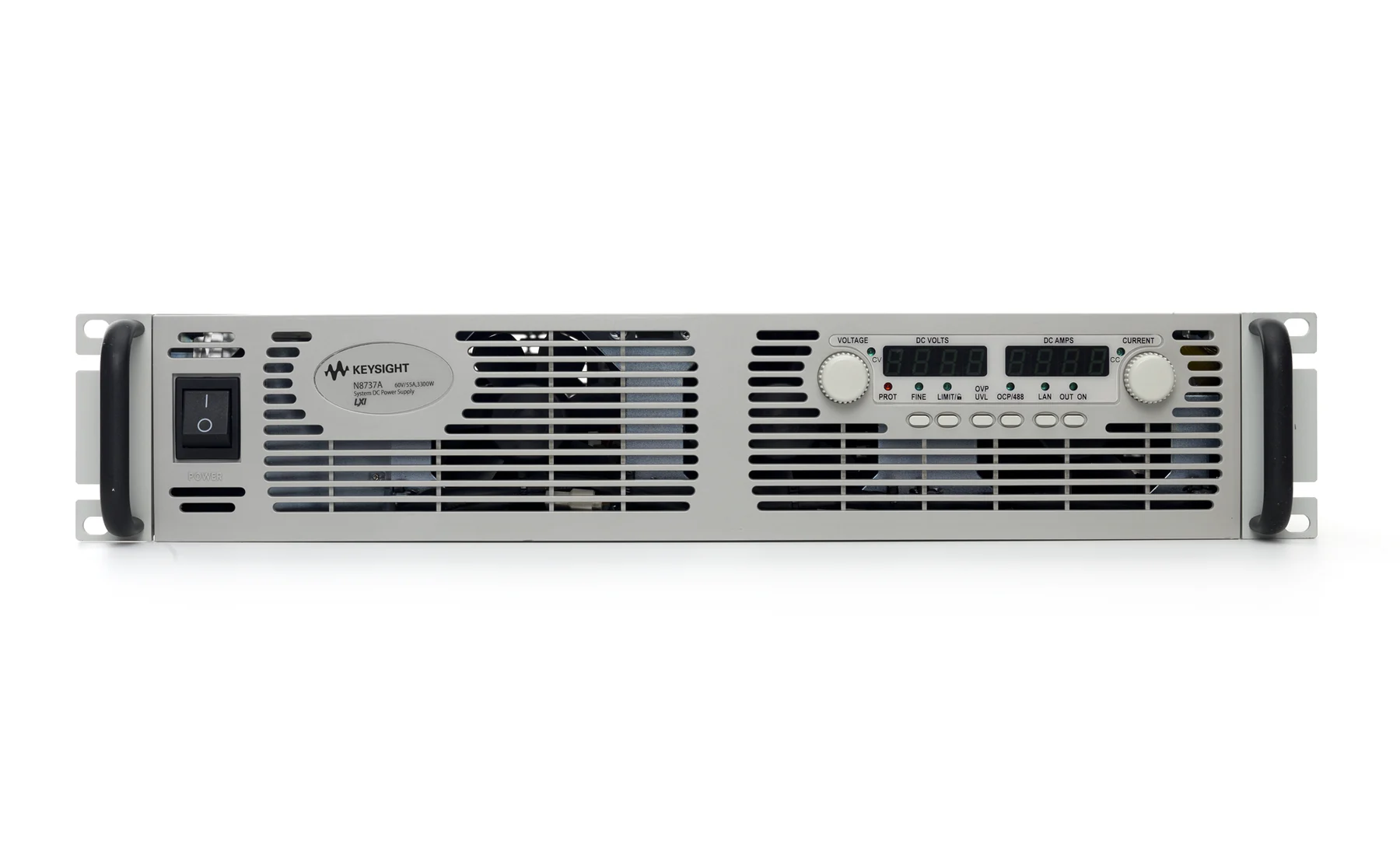

The verified specification set for the Keysight N8737A covers output channel: 1, maximum output voltage: 60 V, maximum output current: 55 A, rated output power: 3.3 kW, and output characteristics: With conventional rectangular output range, voltage, current and power must not exceed ratings. As a system DC power supply, it is suited to automated test equipment, with related use in high-throughput production testing and system and subsystem power delivery. It is part of the N8700 Series System DC Power Supplies. Exact options, interfaces, accessories, calibration scope, and regional availability depend on the ordered configuration and should be confirmed before purchase.
Key Features
- Output channel: 1.
- Maximum output voltage: 60 V.
- Maximum output current: 55 A.
- Rated output power: 3.3 kW.
- Output characteristics: With conventional rectangular output range, voltage, current and power must not exceed ratings.
- Rack height: 2U.
Technical Specifications
| Output channel | 1 |
|---|---|
| Maximum output voltage | 60 V |
| Maximum output current | 55 A |
| Rated output power | 3.3 kW |
| Output characteristics | With conventional rectangular output range, voltage, current and power must not exceed ratings |
| Rack height | 2U |
| remote interface | GPIB, LAN/LXI, USB 2.0 and analog programming/monitoring interfaces |
| AC input category | Confirm by ordering area and nameplate |
Typical Applications
- Automated test equipment
- High-throughput production testing
- System and subsystem power delivery
Selection Notes
Evaluate whether the Keysight N8737A meets the application by comparing output channel (1) and maximum output voltage (60 V). In addition, confirm voltage, current and power requirements, channel or output configuration, sequencing, protection, and system interfaces. Confirm regional availability, calibration scope, included items, and delivery requirements before ordering.
Frequently Asked Questions
What is the Keysight N8737A?
The Keysight N8737A is a system DC power supply intended for professional test and measurement applications.
What are key specifications of the N8737A?
Key verified specifications include output channel: 1 and maximum output voltage: 60 V. Review the full table for model-specific details.
Can Hoyu Instruments quote a configured Keysight N8737A?
Yes. Supply the required options, interfaces, accessories, calibration scope, quantity, and destination so Hoyu Instruments can prepare a configuration-specific quotation.
