Description
Product Overview

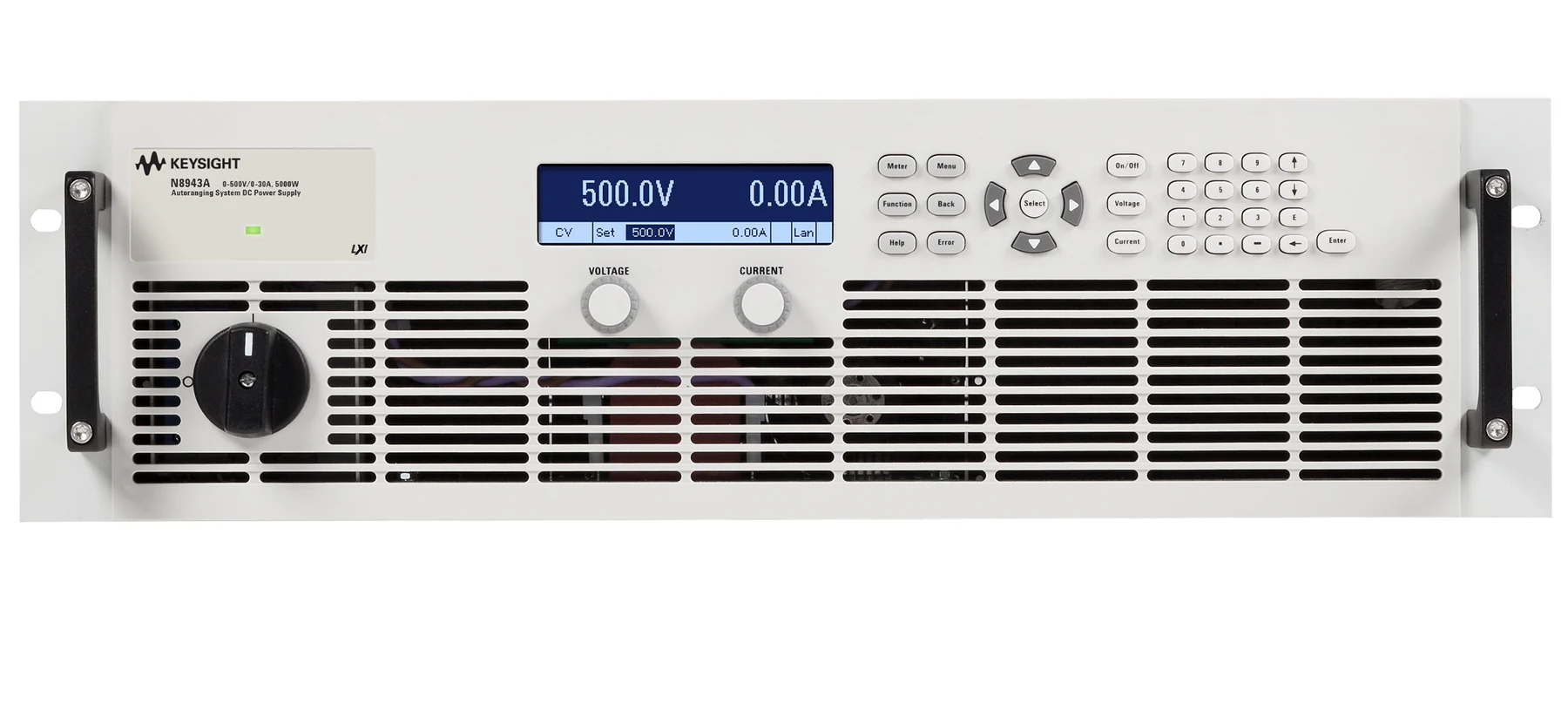

The Keysight N8943A is an autoranging system DC power supply specified for automated test equipment. It is part of the N8900 Series Autoranging High-Power DC Power Supplies. Verified model data includes output channel: 1, maximum output voltage: 500 V, maximum output current: 30 A, rated output power: 5 kW, and AC input category: 400 VAC. The same capabilities support high-throughput production testing and system and subsystem power delivery. Exact options, interfaces, accessories, calibration scope, and regional availability depend on the ordered configuration and should be confirmed before purchase.
Key Features
- Output channel: 1.
- Maximum output voltage: 500 V.
- Maximum output current: 30 A.
- Rated output power: 5 kW.
- Output characteristics: Auto-range output can cover multiple voltage/current combinations within the rated power curve; the highest voltage and highest current cannot be output at the same time.
- Rack height: 3U.
Technical Specifications
| Output channel | 1 |
|---|---|
| Maximum output voltage | 500 V |
| Maximum output current | 30 A |
| Rated output power | 5 kW |
| Output characteristics | Auto-range output can cover multiple voltage/current combinations within the rated power curve; the highest voltage and highest current cannot be output at the same time |
| Rack height | 3U |
| remote interface | GPIB, LAN/LXI, USB 2.0 and analog programming/monitoring interfaces |
| AC input category | 400 VAC |
Typical Applications
- Automated test equipment
- High-throughput production testing
- System and subsystem power delivery
Selection Notes
For the Keysight N8943A, confirm voltage, current and power requirements, channel or output configuration, sequencing, protection, and system interfaces. Use the verified output channel (1) and maximum output voltage (500 V) as initial selection checks. Confirm regional availability, calibration scope, included items, and delivery requirements before ordering.
Frequently Asked Questions
What is the Keysight N8943A?
The Keysight N8943A is an autoranging system DC power supply intended for professional test and measurement applications.
What are key specifications of the N8943A?
Key verified specifications include output channel: 1 and maximum output voltage: 500 V. Review the full table for model-specific details.
How can I request a quote for the Keysight N8943A?
Send the required configuration, quantity, destination, and calibration or accessory requirements to Hoyu Instruments for a detailed quotation.
