Description
Product Overview

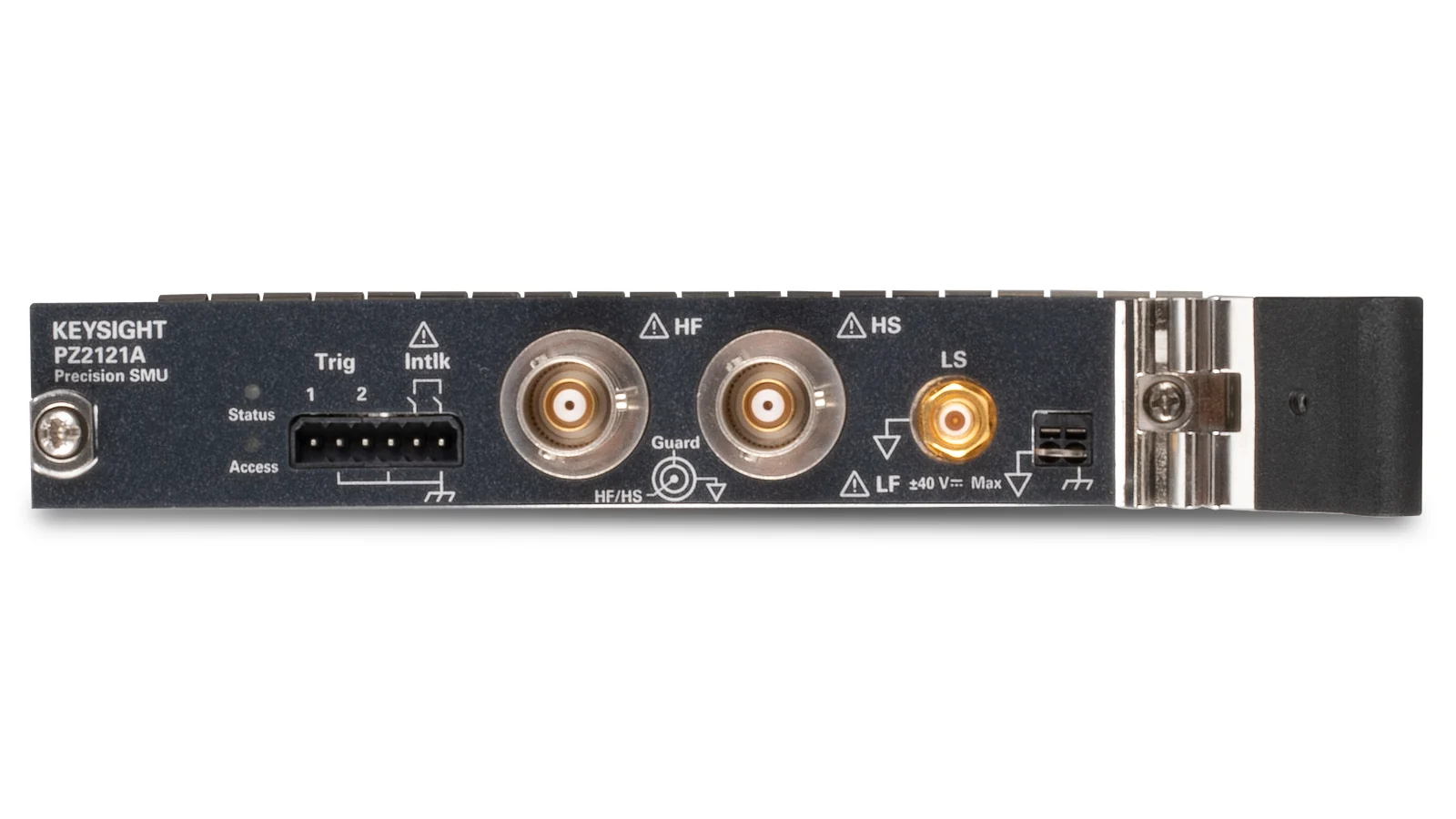

The verified specification set for the Keysight PZ2121A covers number of channels per module: 1, maximum output voltage: 60 V, maximum output current: 3.5 A DC / 10.5 A pulse, minimum current measurement resolution: 100 fA, and maximum sampling rate: 15 MSa/s. As a modular precision source measure unit (SMU), it is suited to semiconductor device characterization, with related use in precision sourcing and measurement and materials and component research. It is part of the PZ2100 Series High-Channel-Density Precision SMU Solution. Exact options, interfaces, accessories, calibration scope, and regional availability depend on the ordered configuration and should be confirmed before purchase.
Key Features
- Number of channels per module: 1.
- Maximum output voltage: 60 V.
- Maximum output current: 3.5 A DC / 10.5 A pulse.
- Minimum current measurement resolution: 100 fA.
- Maximum sampling rate: 15 MSa/s.
- Minimum pulse width: 10 μs.
Technical Specifications
| Number of channels per module | 1 |
|---|---|
| Maximum output voltage | 60 V |
| Maximum output current | 3.5 A DC / 10.5 A pulse |
| Minimum current measurement resolution | 100 fA |
| Maximum sampling rate | 15 MSa/s |
| Minimum pulse width | 10 μs |
| platform | PZ2100A mainframe |
Typical Applications
- Semiconductor device characterization
- Precision sourcing and measurement
- Materials and component research
Selection Notes
Evaluate whether the Keysight PZ2121A meets the application by comparing number of channels per module (1) and maximum output voltage (60 V). In addition, match source and measurement ranges, channel count, resolution, pulse capability, cabling, fixtures, and automation interfaces. Confirm regional availability, calibration scope, included items, and delivery requirements before ordering.
Frequently Asked Questions
What is the Keysight PZ2121A?
The Keysight PZ2121A is a modular precision source measure unit (SMU) intended for professional test and measurement applications.
What are key specifications of the PZ2121A?
Key verified specifications include number of channels per module: 1 and maximum output voltage: 60 V. Review the full table for model-specific details.
Can Hoyu Instruments quote a configured Keysight PZ2121A?
Yes. Supply the required options, interfaces, accessories, calibration scope, quantity, and destination so Hoyu Instruments can prepare a configuration-specific quotation.
