Description
Product Overview

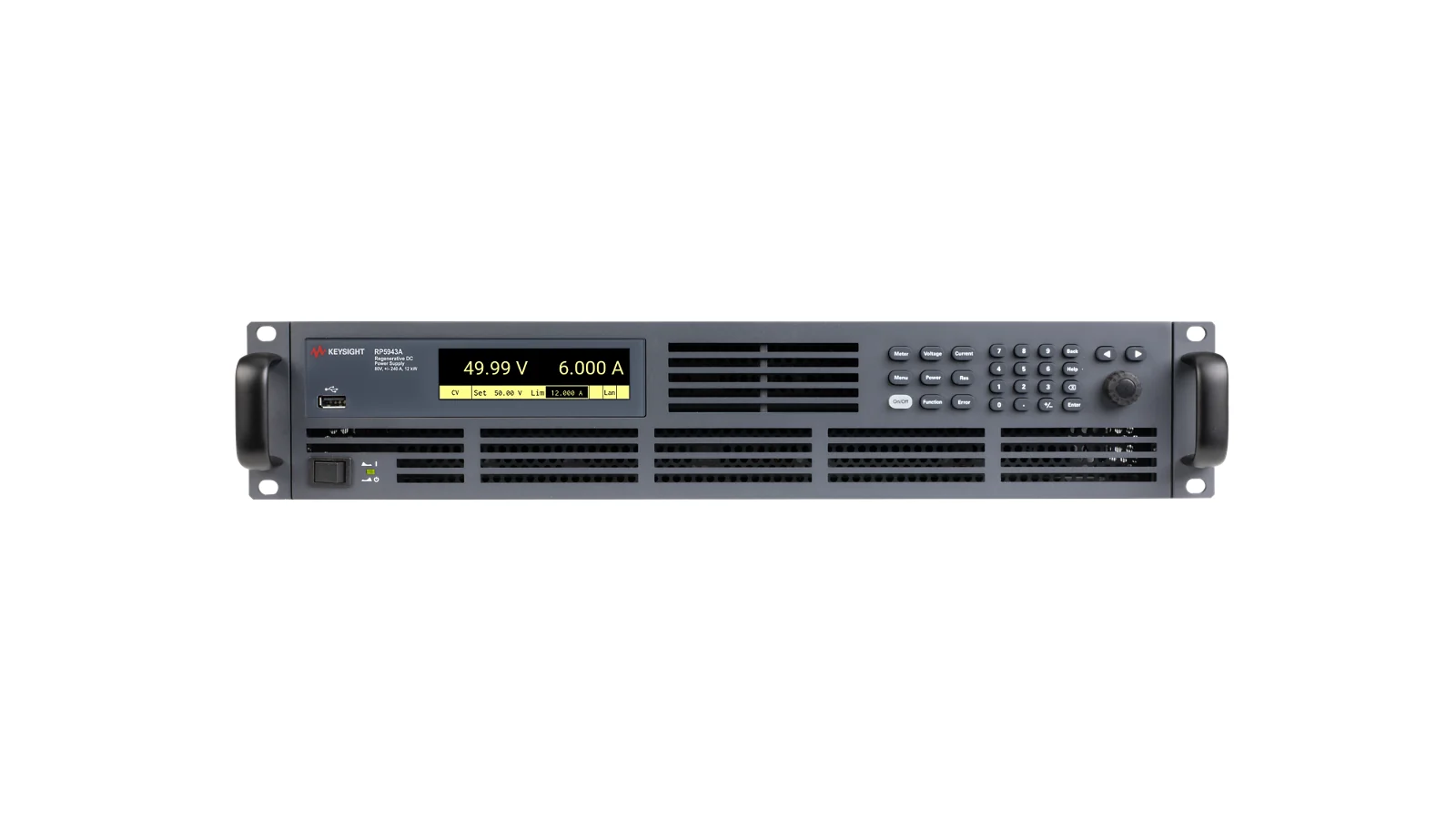

For high-power device testing, the Keysight RP5943A combines output channel: 1, maximum output voltage: 80 V, maximum output/sink current: ±240 A, rated power: 12 kW, and operating quadrant: Two-quadrant source/absorption in a bidirectional regenerative DC power supply platform. It is part of the RP5900 Series Regenerative DC Power Supplies. It can also be evaluated for automotive and energy system development and automated production power delivery. Exact options, interfaces, accessories, calibration scope, and regional availability depend on the ordered configuration and should be confirmed before purchase.
Key Features
- Output channel: 1.
- Maximum output voltage: 80 V.
- Maximum output/sink current: ±240 A.
- Rated power: 12 kW.
- Operating quadrant: Two-quadrant source/absorption.
- Rack size: 2U.
Technical Specifications
| Output channel | 1 |
|---|---|
| Maximum output voltage | 80 V |
| Maximum output/sink current | ±240 A |
| Rated power | 12 kW |
| operating quadrant | Two-quadrant source/absorption |
| Rack size | 2U |
| AC input | Three-phase 380–520 VAC |
| System interface | LAN/LXI, USB, CAN, digital I/O; other interfaces are confirmed by options |
Typical Applications
- High-power device testing
- Automotive and energy system development
- Automated production power delivery
Selection Notes
Start selection of the Keysight RP5943A by checking the verified output channel (1) and maximum output voltage (80 V). Then verify the voltage, current and power envelope, AC input, regeneration or protection behavior, rack requirements, and system interfaces. Confirm regional availability, calibration scope, included items, and delivery requirements before ordering.
Frequently Asked Questions
What is the Keysight RP5943A?
The Keysight RP5943A is a bidirectional regenerative DC power supply intended for professional test and measurement applications.
What are key specifications of the RP5943A?
Key verified specifications include output channel: 1 and maximum output voltage: 80 V. Review the full table for model-specific details.
What information is needed to quote the RP5943A?
Provide the intended application, configuration or options, quantity, delivery country, and any calibration or accessory requirements so the quotation can be checked accurately.
