Description
Product Overview

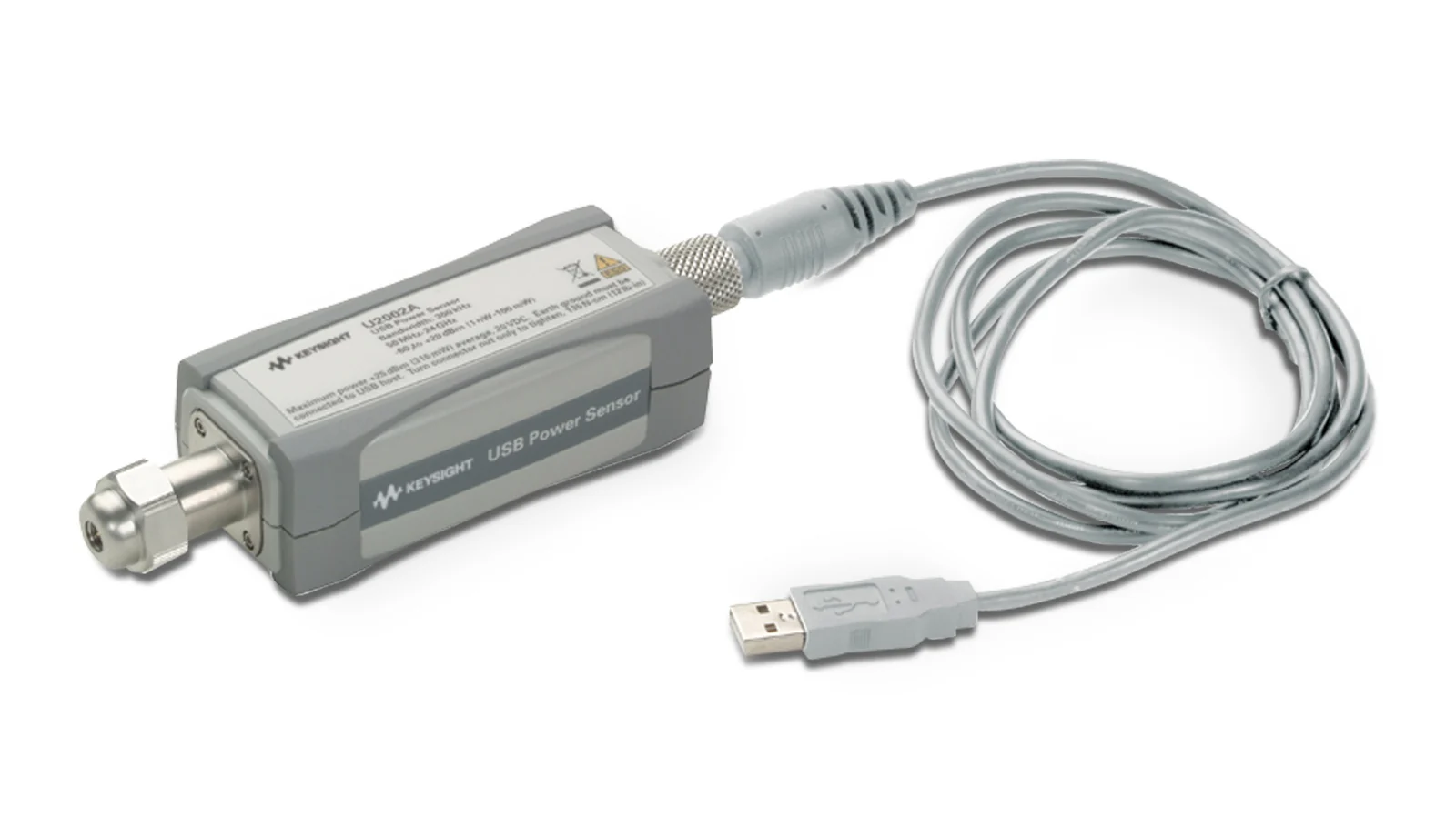

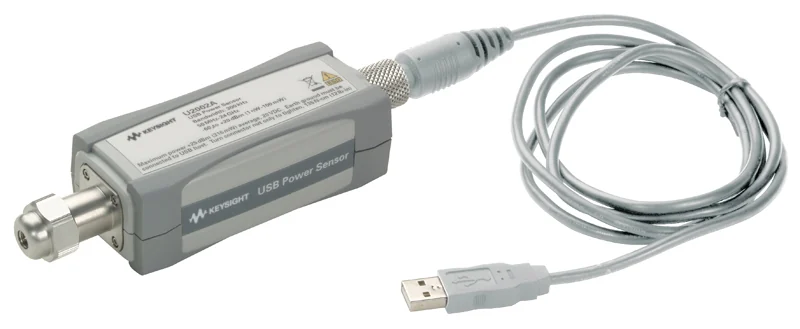

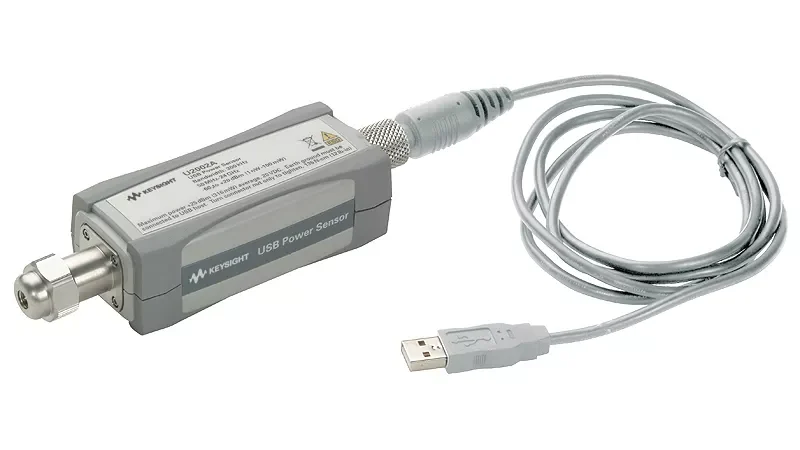

For RF and microwave power measurement, the Keysight U2002A combines frequency range: 50 MHz to 24 GHz; Option H26: 10 MHz to 26.5 GHz, average power range: −60 to +20 dBm, RF connector: 3.5 mm male, measurement type: average power, and communication: USB in an USB average power sensor platform. It is part of the U2000 Series USB Average Power Sensors. It can also be evaluated for wireless device characterization and calibration and production testing. Exact options, interfaces, accessories, calibration scope, and regional availability depend on the ordered configuration and should be confirmed before purchase.
Key Features
- Frequency range: 50 MHz to 24 GHz; Option H26: 10 MHz to 26.5 GHz.
- Average power range: −60 to +20 dBm.
- RF connector: 3.5 mm male.
- Measurement type: average power.
- Communication: USB.
- Fastest effective measurement speed: 250 readings/s.
Technical Specifications
| frequency range | 50 MHz to 24 GHz; Option H26: 10 MHz to 26.5 GHz |
|---|---|
| average power range | −60 to +20 dBm |
| RF connector | 3.5 mm male |
| Measurement type | average power |
| communication | USB |
| Fastest effective measurement speed | 250 readings/s |
| Internal trigger/trace display | Supported |
Typical Applications
- RF and microwave power measurement
- Wireless device characterization
- Calibration and production testing
Selection Notes
Start selection of the Keysight U2002A by checking the verified frequency range (50 MHz to 24 GHz; Option H26: 10 MHz to 26.5 GHz) and average power range (−60 to +20 dBm). Then confirm frequency and power range, sensor or meter compatibility, connector type, measurement speed, and calibration coverage. Confirm regional availability, calibration scope, included items, and delivery requirements before ordering.
Frequently Asked Questions
What is the Keysight U2002A?
The Keysight U2002A is an USB average power sensor intended for professional test and measurement applications.
What are key specifications of the U2002A?
Key verified specifications include frequency range: 50 MHz to 24 GHz; Option H26: 10 MHz to 26.5 GHz and average power range: −60 to +20 dBm. Review the full table for model-specific details.
What information is needed to quote the U2002A?
Provide the intended application, configuration or options, quantity, delivery country, and any calibration or accessory requirements so the quotation can be checked accurately.
