Description
Overview

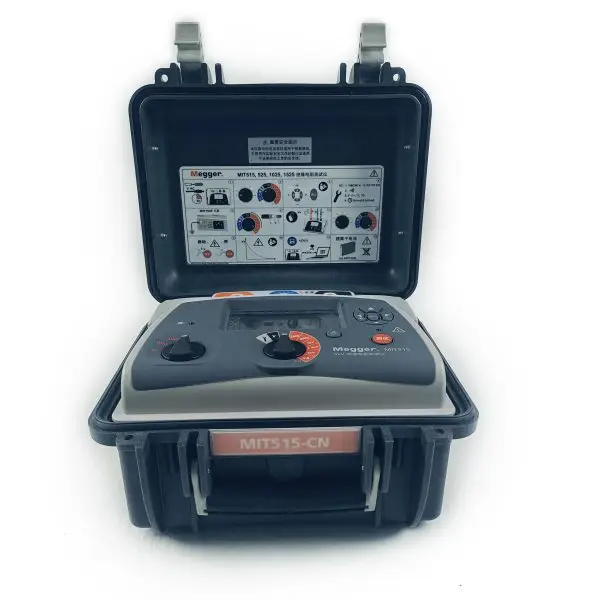

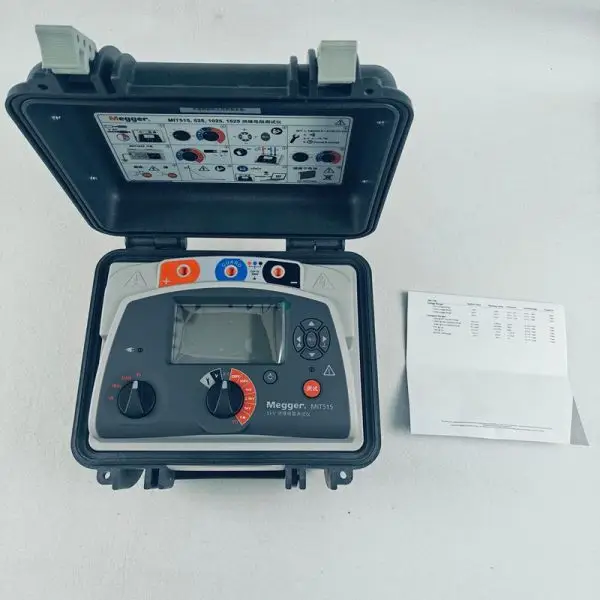

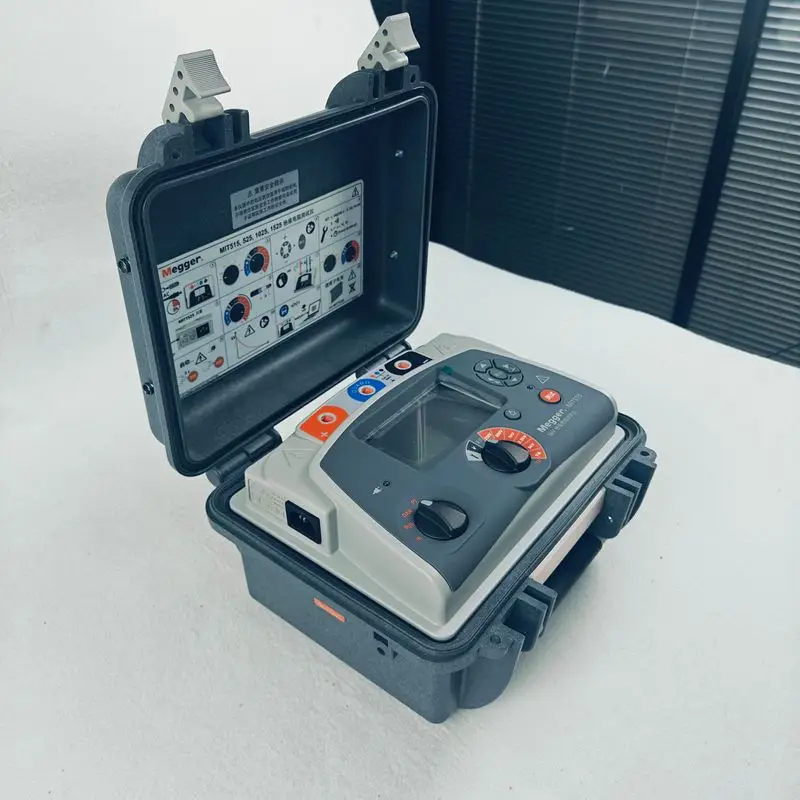

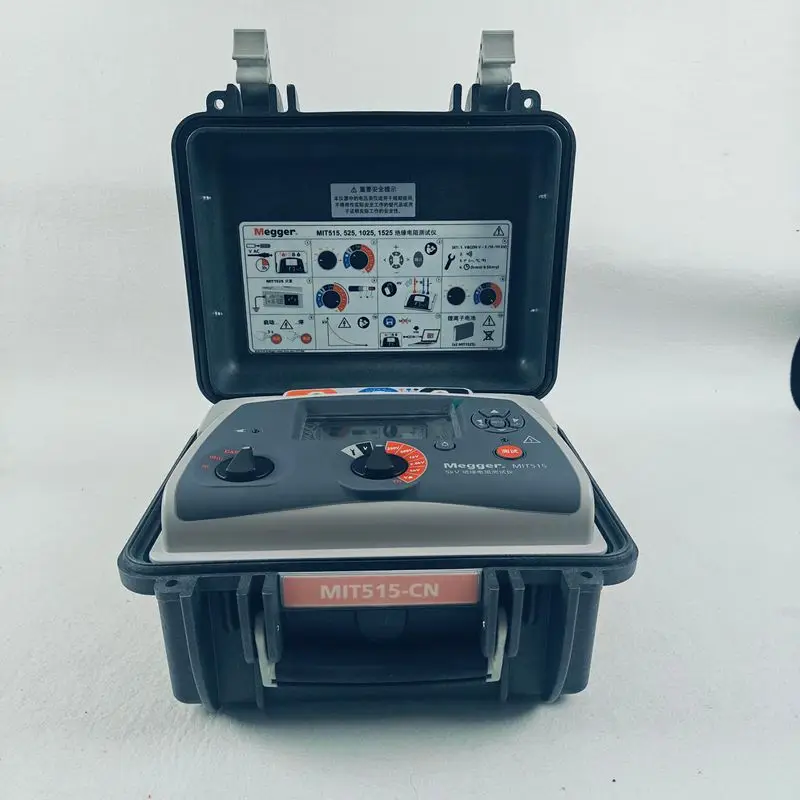

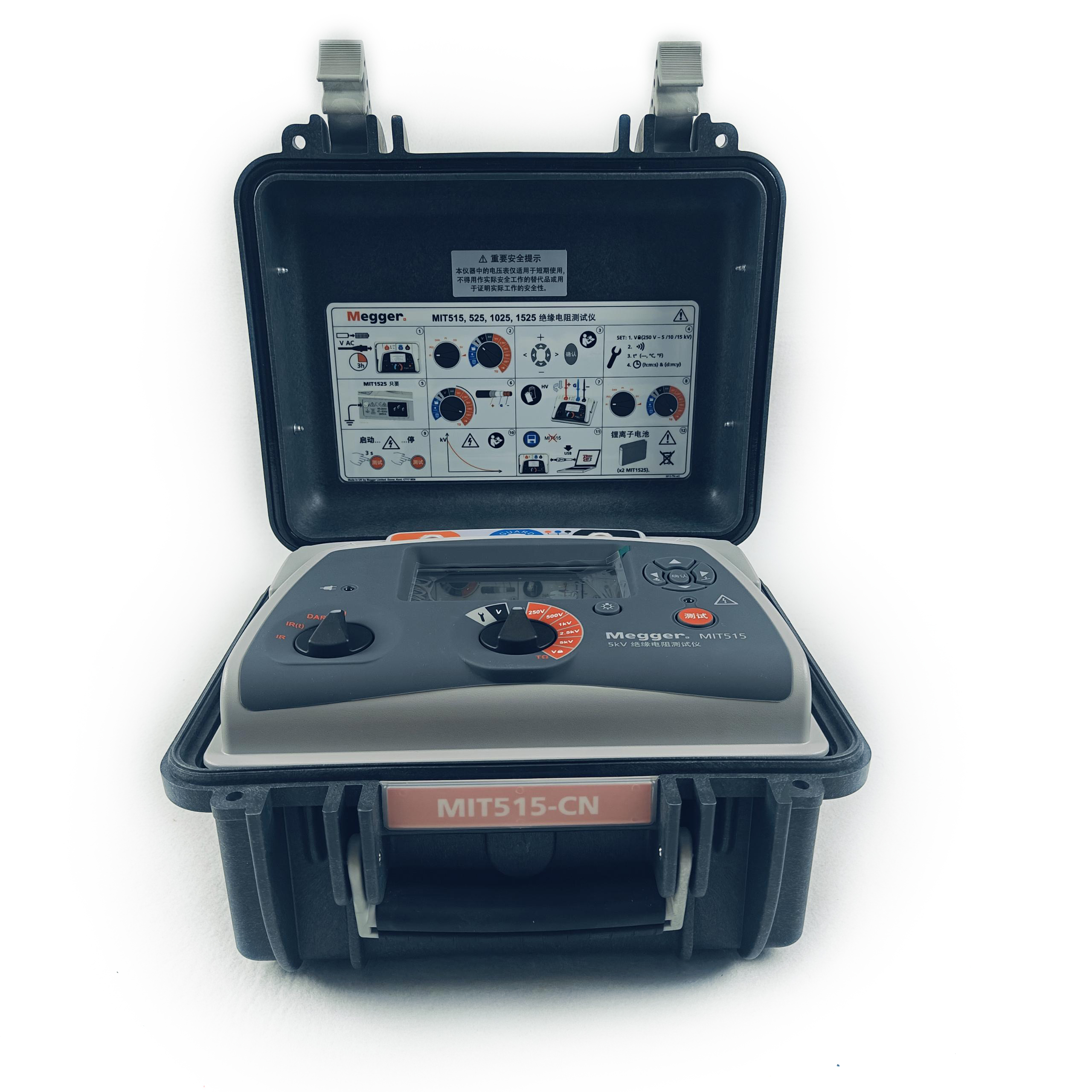

The Megger MIT515 is a rugged, high-performance 5 kV insulation resistance tester ideal for predictive maintenance and commissioning of medium- and high-voltage equipment. Built with advanced insulation diagnostic technology, it provides precise, repeatable results in demanding industrial and utility environments.
Key Features
-
Test Voltage Range: 250 V to 5 kV with 50 V increments
-
Measurement Range: Up to 10 TΩ resistance
-
Rapid Charge Technology: Fast charging with extended battery life
-
Polarization Index & Dielectric Absorption Ratio: Built-in calculations for insulation quality assessment
-
User-Friendly Interface: Large backlit display and intuitive controls
-
Safety Compliance: CAT IV 600 V for operator protection
-
Data Storage & USB Transfer: Save and download results for detailed analysis
Applications
-
High-voltage cables and transformers
-
Rotating machinery (motors, generators)
-
Switchgear and circuit breakers
-
Industrial maintenance and commissioning
-
Utilities and substations
Technical Specifications
| Parameter | Value |
|---|---|
| Test Voltage Range | 250 V – 5 kV (50 V steps) |
| Resistance Measurement | Up to 10 TΩ |
| Accuracy | ±5% to 1 TΩ |
| Short-Circuit Current | 3 mA max |
| Power Supply | Rechargeable Li-ion battery / AC |
| Display | Large backlit LCD |
| Safety Category | CAT IV 600 V |
| Operating Temperature | -20 °C to +50 °C |
| Dimensions | Approx. 315 x 285 x 181 mm |
| Weight | 4.5 kg (including battery) |

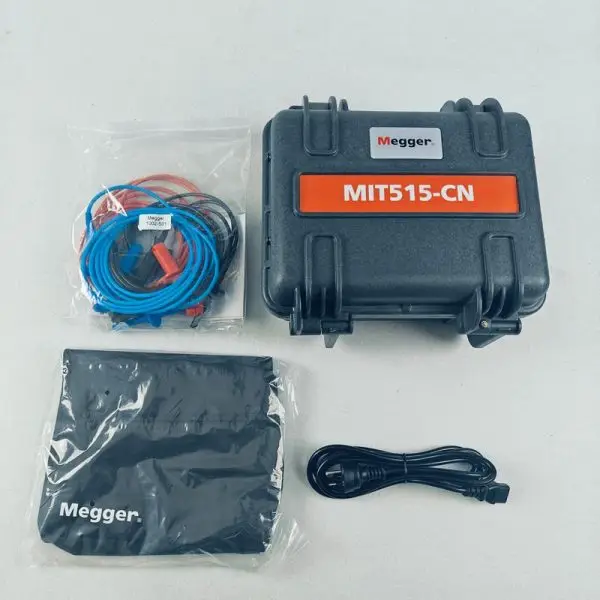

Package Contents
-
MIT515 instrument
-
Test leads and clips
-
AC charger and Li-ion battery
-
User manual and calibration certificate
-
Carrying case
Call to Action
Get accurate, professional-grade insulation testing with the Megger MIT515. Contact us today for pricing, stock availability, and fast delivery.
【FAQ】
Q1: What is the maximum insulation resistance the MIT515 can measure?
A1: Up to 10 TΩ with selectable test voltages from 250 V to 5 kV.
Q2: Can the MIT515 store test data?
A2: Yes, it features onboard storage and USB transfer for easy reporting.
Q3: Is the MIT515 suitable for outdoor testing?
A3: Yes, it is rated IP65 with the lid closed and operates from -20 °C to +50 °C.
Q4: Does the MIT515 comply with safety standards?
A4: It meets CAT IV 600 V safety standards for high-voltage applications.
Q5: What accessories are included with the MIT515?
A5: Test leads, battery, charger, carrying case, and a calibration certificate are included.
