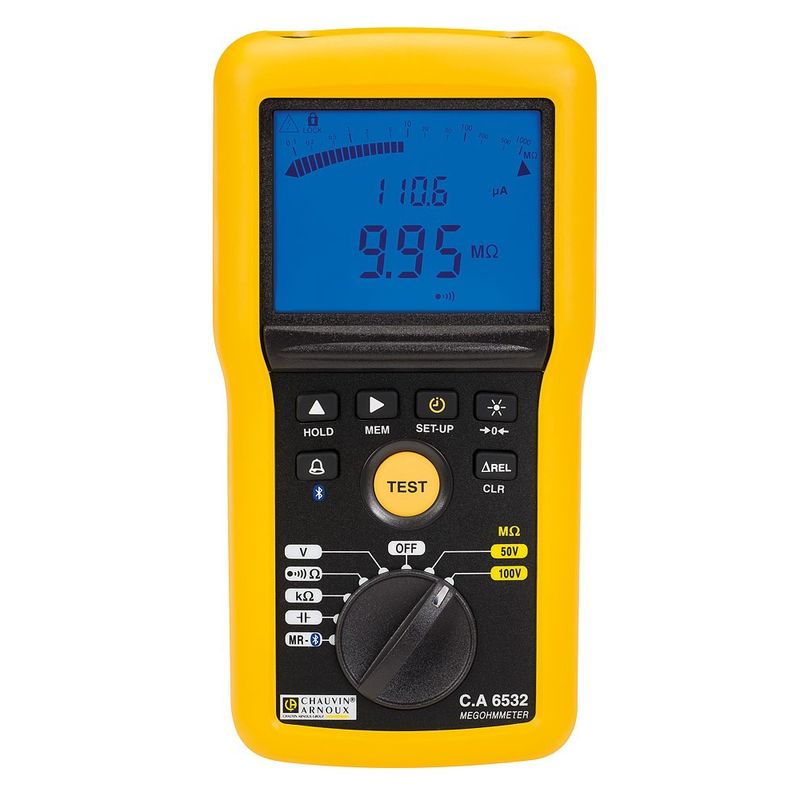

Chauvin Arnoux C.A 6532 Insulation & Continuity Tester – Telecom Grade

Overview
The C.A 6532 by Chauvin Arnoux is a high-precision insulation and continuity tester optimized for telecommunications environments. It offers dual test voltages of 50 V and 100 V, enabling insulation resistance measurements up to 20 GΩ. Designed for field accuracy and durability, it combines a rugged enclosure, ergonomic controls, extensive safety ratings, and versatile measurement functions—making it suitable for engineers, telecommunications installers, maintenance teams, and procurement of test instruments.

Key Features

• Dual insulation test voltages: 50 V & 100 V for telecom line tests

• Insulation resistance range up to 20 GΩ at maximum test voltage

• Continuity test with two current levels (200 mA & 20 mA) and fuseless protection if voltage is present

• Additional multimeter-type measurements: AC/DC voltage, frequency, resistance, capacitance

• Cable length estimation via linear capacitance setting

• Advanced test modes: Timer, Lock, Polarisation Index (PI), Dielectric Absorption Ratio (DAR)

• Dual backlit display with logarithmic bar graph and programmable alarm thresholds

• CAT IV 600 V safety rating; IP54 / IK04 enclosure; operating temperature −20 °C to +55 °C

• Up to 1,300 stored readings with communication/Bluetooth versions

Applications

• Insulation testing and maintenance of telephone lines and telecommunications cabling

• Electrical safety checks in telecom equipment and central offices

• Field service, infrastructure testing, installation verification

• Monitoring insulation degradation (using PI / DAR)

• Continuity testing and leakage current detection

• Cable length verification in long line runs

• Industrial or harsh environments requiring CAT IV safety and rugged design

Technical Specifications

• Test Voltages for Insulation: 50 V and 100 V DC

• Maximum Insulation Resistance: 20 GΩ

• Continuity Test Currents: 200 mA / 20 mA

• Resistance Measurement Range: up to approx. 1,000 kΩ

• Capacitance Range: approx. 0.1 nF to 10 µF

• Voltage Measurement (AC/DC): approx. 0.3 V to 700 V

• Frequency Measurement: approx. 15.3 Hz to 800 Hz

• Cable Length Estimation: 0-100 km (via linear capacitance)

• Display: Dual digital display with logarithmic bar-graph, backlit LCD

• Memory Capacity: up to 1,300 readings (communication/Bluetooth version)

• Safety Rating: CAT IV 600V

• Protection / Enclosure: IP54, IK04

• Operating Temperature: −20 °C to +55 °C

• Dimensions: approx. 211 × 108 × 60 mm

• Weight: approx. 850 g

• Power Supply: 6 × LR6 (AA) batteries

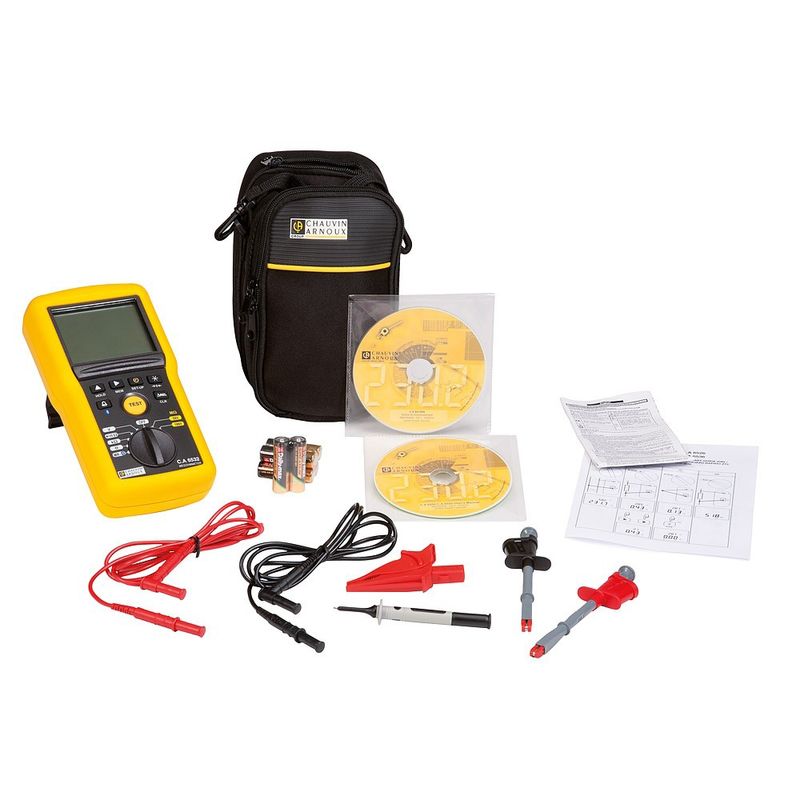

Package Contents

• C.A 6532 Instrument

• Test leads (red and black)

• Crocodile clip(s)

• Remote control probe / probe tip

• 6 × LR6 AA batteries

• Carrying case or protective bag

• Multilingual User Manual

• Software media for Megohmmeter Transfer / DataView (if included)

• Quick Start Guide

Call to Action
Order the Chauvin Arnoux C.A 6532 today to ensure reliable insulation resistance measurement, robust continuity testing, and rich data capture—perfect for engineering teams, field service, or site verification.

FAQ

1. What insulation test voltages does the C.A 6532 provide?
   It offers 50 V and 100 V DC insulation test voltages ideal for telecom line testing.

2. What are the continuity test currents?
   It provides two continuity test currents: 20 mA for low-power measurements and 200 mA for fast or demanding continuity checks.

3. Can the instrument store and export data?
   Yes, communication/Bluetooth versions store up to 1,300 measurements and allow data transfer using Megohmmeter Transfer or DataView software.

4. Is the C.A 6532 safe for outdoor use?
   Yes, it has a CAT IV 600 V safety rating and IP54/IK04 protection, resistant to dust and water splashes.

5. Can it estimate cable length?
   Yes, by programming linear capacitance and measuring cable capacitance, it can estimate lengths up to 100 km.
