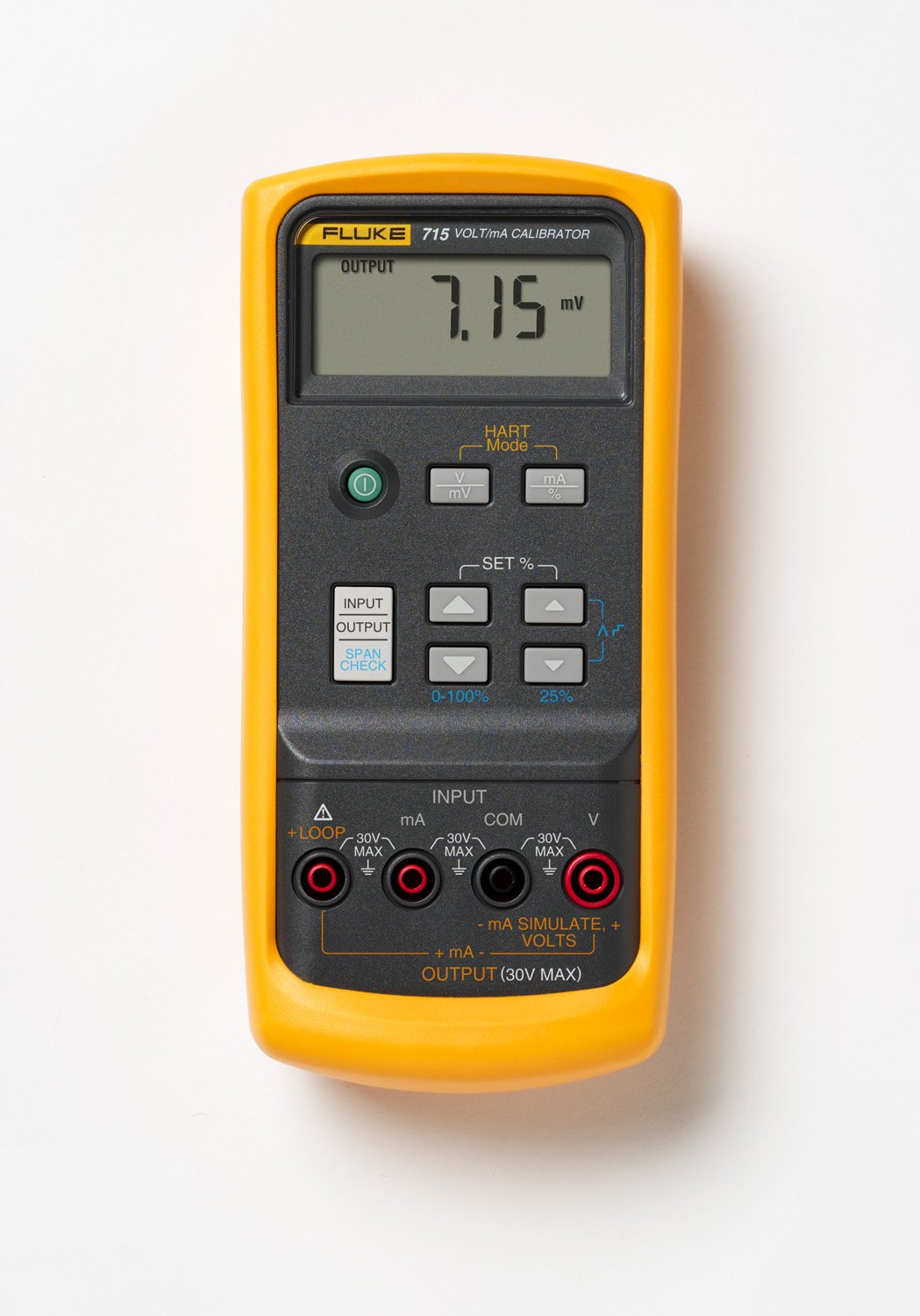

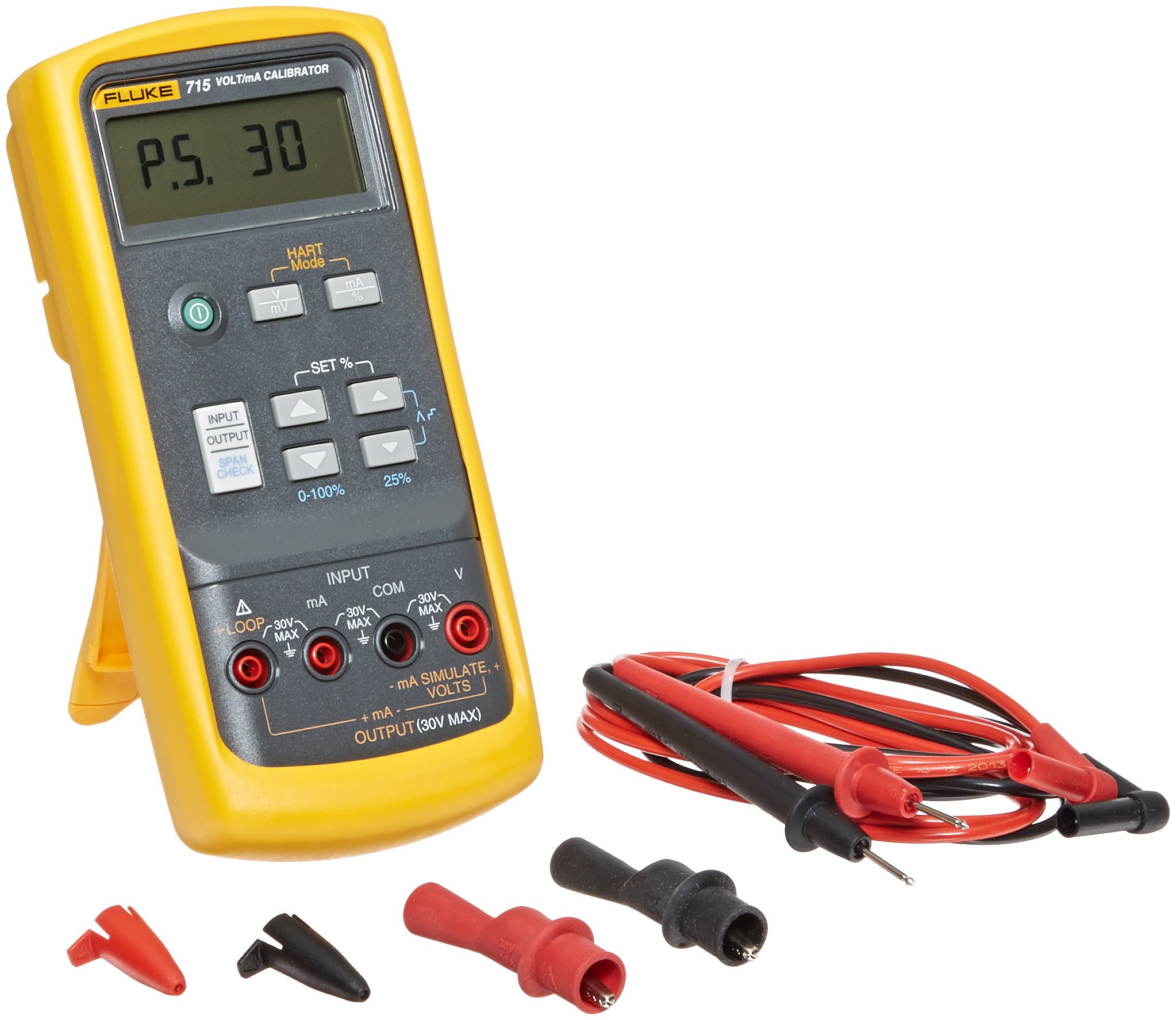

Fluke 715 Volt/mA Loop Calibrator for Process Instrumentation Testing
Fluke 715 Volt/mA Loop Calibrator for Process Instrumentation Testing
  1. Fluke 715 Volt/mA Loop Calibrator for Process Instrumentation Testing
  2. Fluke 715 Volt/mA Loop Calibrator for Process Instrumentation Testing

Fluke 715 Volt/mA Loop Calibrator for Process Instrumentation Testing

$679.99

  • Compact mA calibrator for measuring 0-20 mA or 4-20 mA signals
  • High accuracy—0.01% and 1 µA resolution
  • Measures voltage output process signals from PLCs and transmitters
  • Sources or simulates 4-20 mA loop current
  • Sources voltage to 100 mV or 10 V

    Contact Information








    WhatsApp us

    Category: Brand:

    Specifications: Fluke 715 Volt/mA Loop Calibrator

    Functional Specifications
    Measure / Source mV Range 0 to 200 mV
    Resolution 0.01 mV
    Accuracy 0.015% + 2 counts
    Measure / Source V Range 0 to 20 V
    Resolution 0.001 V
    Accuracy 0.01% + 2 counts
    Measure / Source/ Simulate mA (% of span) Range 0 to 24 mA (-25% to 125%)
    Resolution 0.001 mA
    Accuracy 0.01% + 2 counts
    Sink (simulate transmitter) display mA or % of span
    Specifications
    Loop power Range 24 V DC
    Accuracy ±10%
    Drive; 20 mA into 1000 Ω for battery > 6.8 V; 700 Ω for battery 5.8 to 6.8 V
    Display Clear 5 digit LCD
    Environmental Specifications
    Operating temperature -10°C to 55°C
    Storage temperature -40°C to 60°C
    Humidity (without condensation) 95% (10°C to 30°C)
    75% (30°C to 40°C)
    45% (40°C to 50°C)
    35% (50°C to 55°C)
    Operating altitude 3,000 m max
    Safety Specifications
    Safety CSA C22.2 No. 1010.1:1992
    Mechanical and General Specifications
    Size (L x W x D) 187 x 87 x 32 mm
    (7.93 x 3.86 x 2.06 in)
    Weight Approx. 330 g
    (21 oz)
    Warranty 3 years
    Shock and vibration Random, 2 G, 5-500 Hz
    1 m drop test
    Battery type Single 9 V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline
