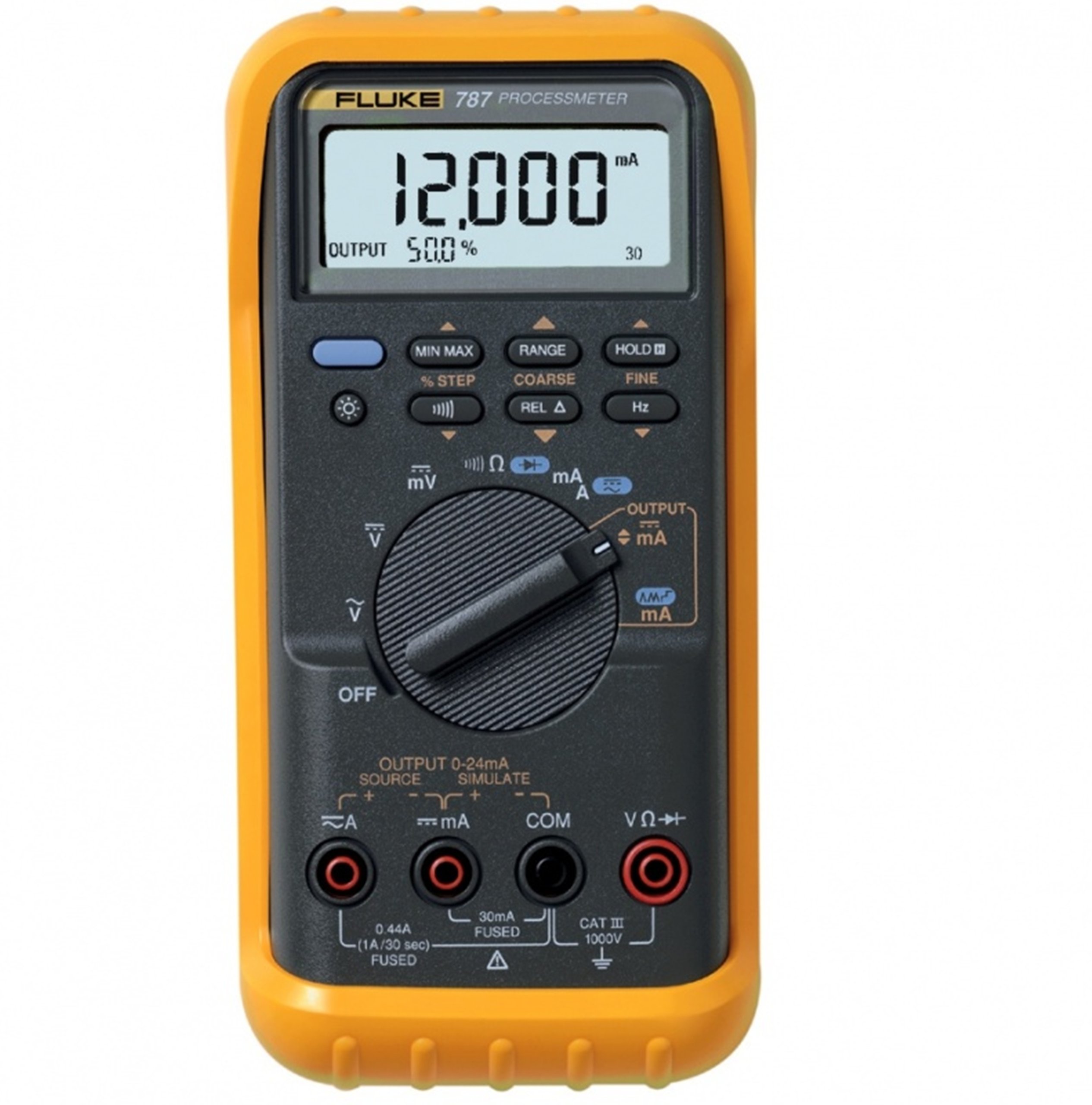

Fluke 787 Process Meter with NIST-Traceable Calibration Certificate and Data

$1,211.19

DMM and a loop calibrator in one rugged, handheld tool
Provides a precision 1000 V, 440 mA True-RMS digital multimeter designed to meet 1000 volt IEC 1010 CAT III standards
Features a clear LCD with backlight; 4,000 counts (30,000 counts for DC current)
Performs frequency measurements to 20 kHz

Description

Specifications: Fluke 787 ProcessMeter Digital Multimeter

Specifications
Current measurement	Range	0-1 A
	Resolution	1 mA
	Accuracy	0.2% + 2 LSD
	Range	0-30 mA
	Resolution	0.001 mA
	Accuracy	0.05% + 2 LSD
Current sourcing	Range	0-20 mA or 4-20 mA
	Resolution	0.05% of span
	Drive Capability	500 Ω @ 24 mA
Frequency	To 19.999 kHz, 0.005% + 1 LSD
Continuity	Beeps for resistance < 100 ohms
Voltage measurement	Range	0-1000 V AC or DC
	Resolution	0.1 mV to 1.0 V
	Accuracy	0.1% Rdg + 1 LSD (VDC)
Resistance measurement	To 40 MΩ, 0.2% + 1 LSD
Diode test	2.4 V shows diode voltage drop
Environmental Specifications
Operating temperature	-20°C to 55°C
Storage temperature	-40°C to 60°C
Humidity (without condensation)	95% up to 30°C
	75% up to 40°C
	45% up to 50°C
	35% up to 55°C
Temperature coefficient	0.05 x (specified accuracy) per °C (for temperatures < 18°C or > 28°C)
Safety Specifications
Electrical safety	Designed in accordance with IEC 1010-1, ANSI/ISA S82.01-1994 and CAN/CSA C22.2 No. 1010.1-92
Overvoltage category	IEC 1010-1 CAT III
Maximum voltage	1000 V rms
Mechanical and General Specifications
Size	32 x 87 x 187 mm
Weight	369 g
Batteries	Single 9 V Alkaline battery (ANSI/NEDA 1604A or IEC 6LR61)
Warranty	3 years
Battery life	50 hours typical (measurement), 12 hours typical (sourcing 12 mA)
Shock and vibration	Random, 2 g, 5-500 Hz
	1 meter drop test
Display current and % of span	Yes
Auto step, auto ramp	Yes
