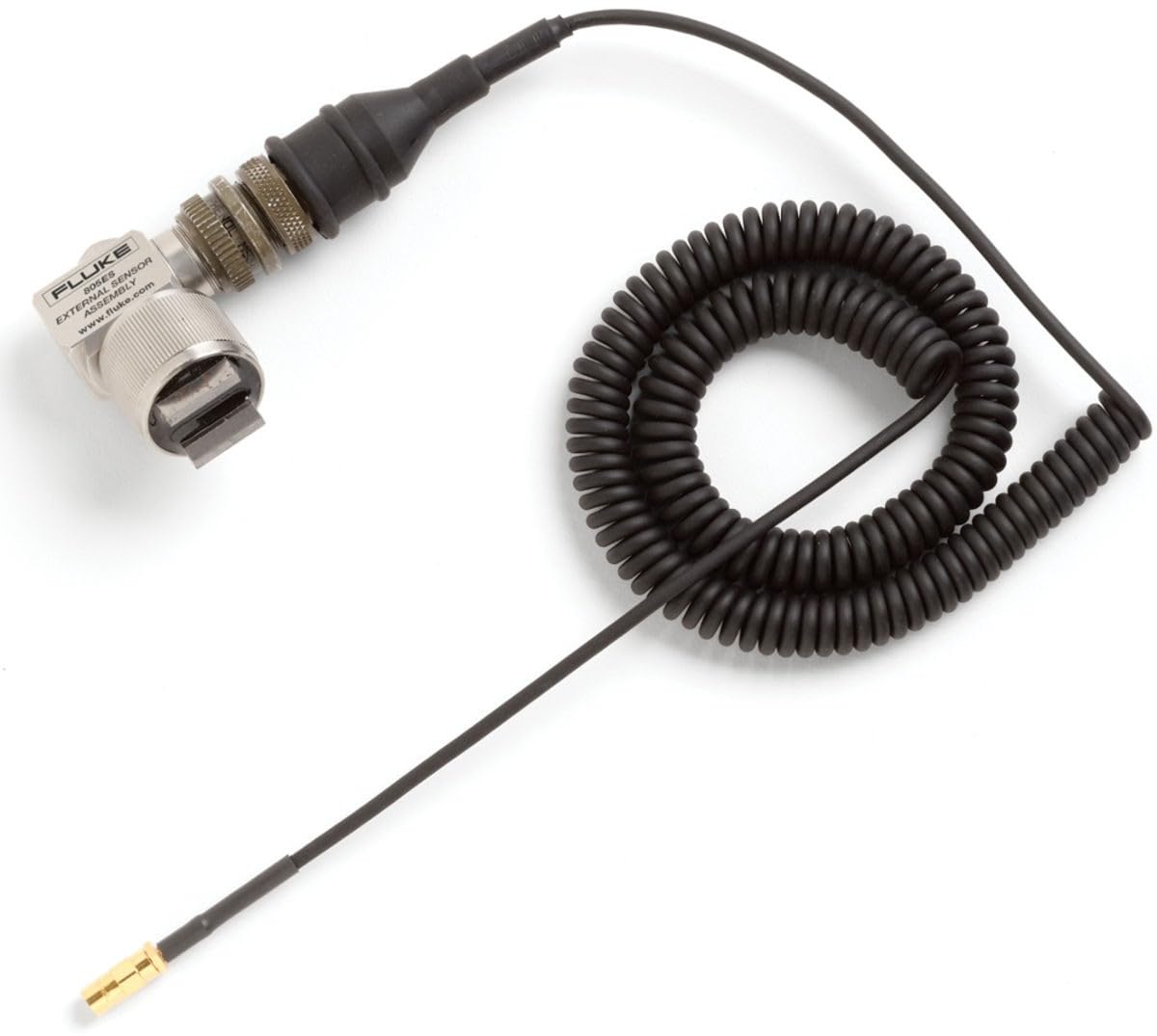

Fluke 805/ES External Vibration Sensor with 90° Head, High-Power Magnet, Mil-Spec Connector, and 7-Foot Coiled Cable

$1,433.54

  • Low-profile 90-degree sensor body allows the sensor to get into tight spots
  • Rugged, coiled cable minimizes dangling, while stretching to more than 7ft when needed
  • Powerful “U” shaped magnet mount creates a firm connection to flat, or curved measurement surfaces
  • Rugged, sealed cable connector with strain relief tail reduces cable wear
  • Removable sensor magnet to allow for direct attachment to a sensor mounting pad, or threaded hole on a piece of equipment
  • Connects directly to 805 Vibration Meter SMB connector located in the heel of the meter
Category: Brand:

Description

Specifications: Fluke 805ES

Performance
Measurement range 7 g pk (68.7 m/s² pk)
Frequency range 0 to 6000 cpm (0 to 100 Hz)
Relay 3A Form C 480 VAC
Relay (Contacts) (DPDT) Normally open / closed
Environmental
Temperature range (Operating) -13 to 140°F (-25 to 60°C)
Enclosure rating IP66
Physical
Size (Width x Height x Depth) 4.35 x 3.30 x 4.35 in (110.5 x 83.8 x 110.5 mm)
Weight 2.5 lb (1.134 kg)
Sensing element Magnet
Housing material Aluminum alloy
Electrical connector Screw terminals
Screw terminal wire size 24-14 AWG (0.2 – 2.5 mm²)
Cable input 3/4-14 NPT
Mounting hole size 0.25 in (6.4 mm)
Sensing geometry Inertial element

Additional information

Model

805/ES

Product Type

External Vibration Sensor
