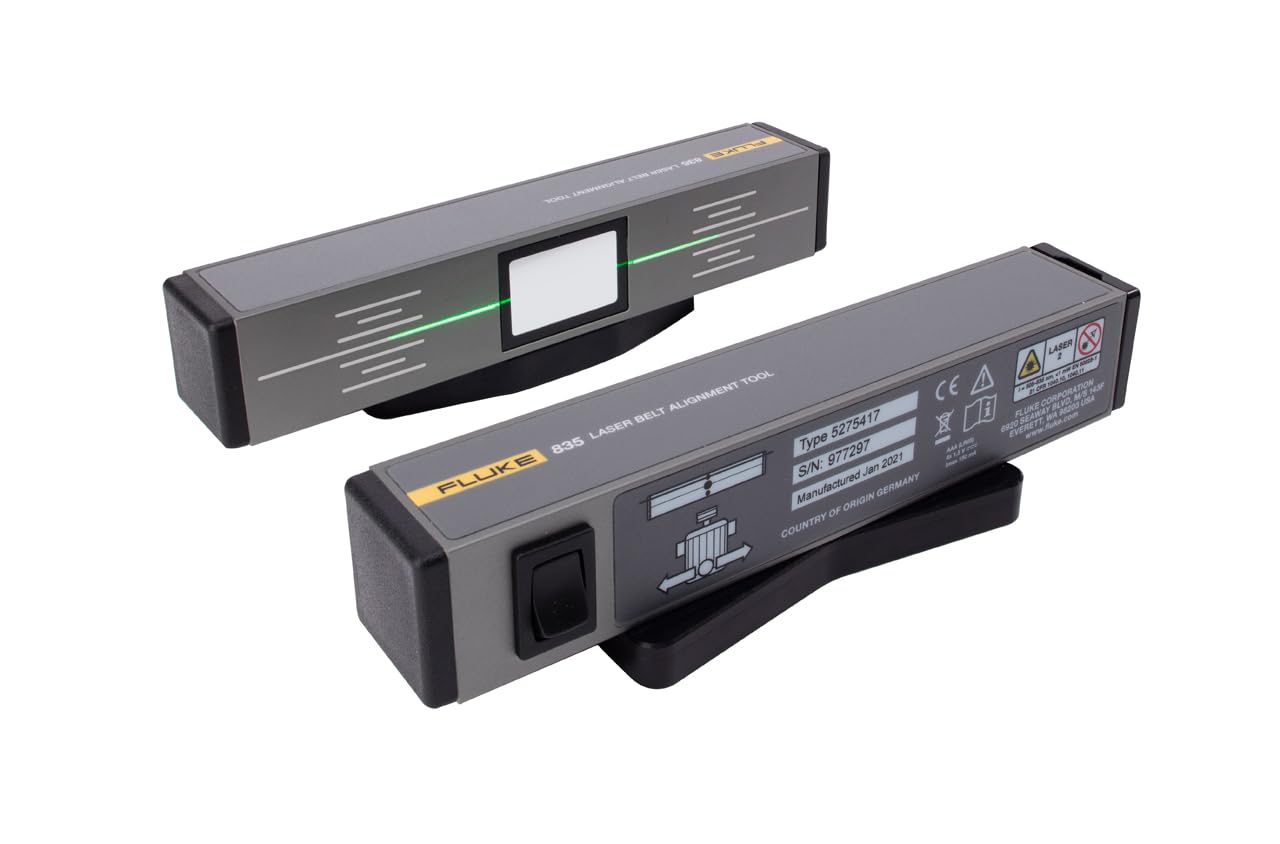

Fluke 835 Laser Belt Alignment Tool for Precision Pulley Setup

$1,501.66

  • Time-saving pulley alignment method requires no cross-check
  • Shows offset, vertical, and horizontal angles simultaneously
  • Live corrections validate when precision alignment is achieved
  • Strong magnets mount onto virtually any pulley face
  • Efficient, accurate one-person operation with no training needed
Request Quote

Send us your required configuration and quantity for FLUKE-835.

SKU: FLUKE-835 Category: Brand:

Description

Specifications: Fluke 835 Laser Belt Alignment Tool

Specifications
Fluke 835 Laser Belt Alignment Tool
Accuracy 0.2˚
Laser wavelength 505 – 535 nm (green – more visible)
Output power < 1.0 mW
Classification class 2
Measuring distance 10 m between units
Laser line length 7 m at 5 m distance
Controls Laser ON/OFF rocker switch
Battery type 4 AAA alkaline batteries
Operating time 6 hours
Operating temp -5˚C to 40˚C
Storage temp -10˚C to 70˚C
Mounting method Strong magnets
Weight 0.3 kg
Dimensions 37 x 40 x 170 mm
Housing Gray anodized aluminum
Fluke 835 Reflector
Accuracy 0.2˚
Reflector size 21 x 32 mm
Mounting method Strong magnets
Weight 0.27 kg
Dimensions 37 x 40 x 170 mm
Housing Gray anodized aluminum

Additional information

Model

835

Product Type

Laser Belt Alignment Tool
