Description
Overview

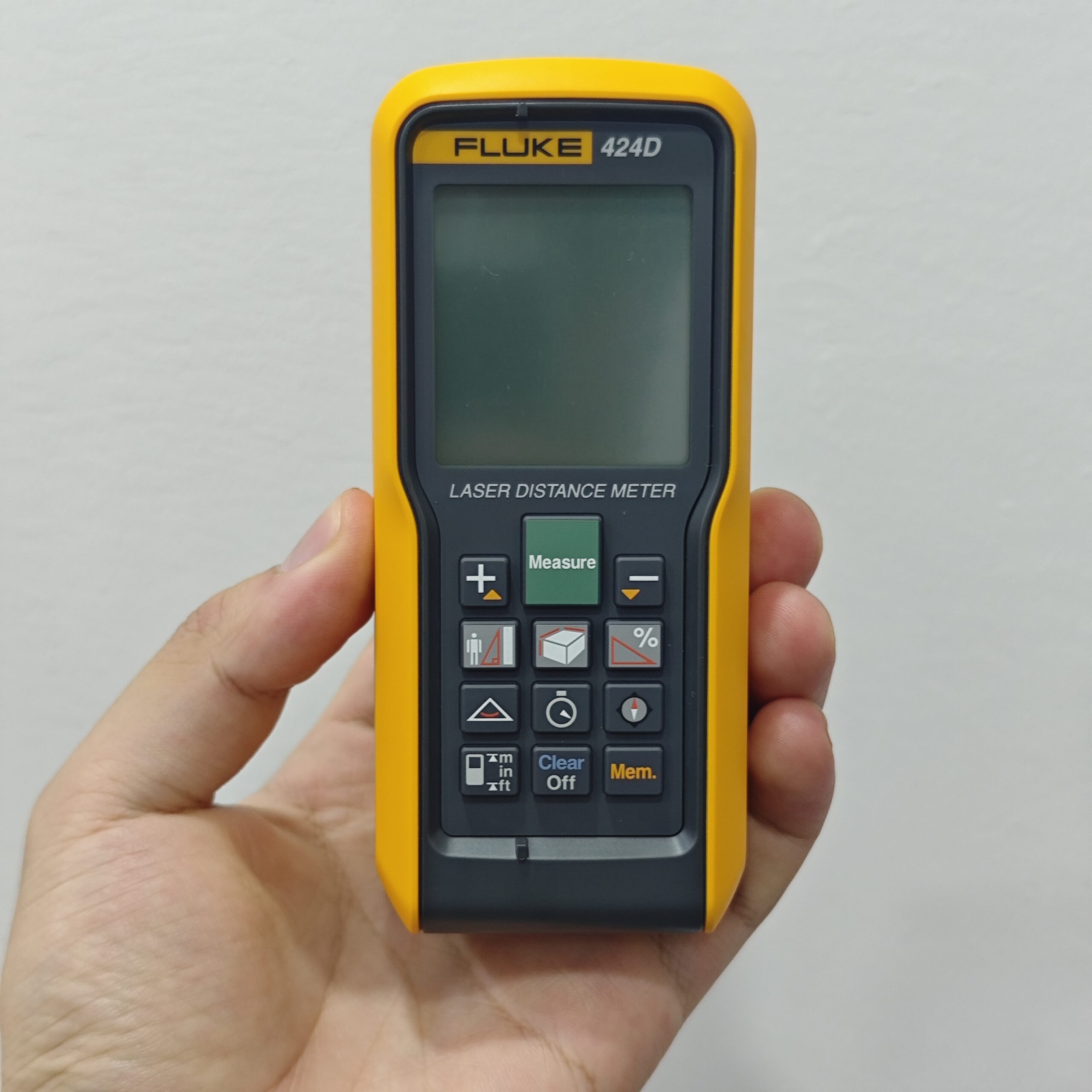

The Fluke 424D Laser Distance Meter is a professional laser distance measuring tool designed for technicians, engineers, facility teams, building inspectors, maintenance personnel, and contractors who need fast, repeatable distance measurements without relying on a tape measure. It is part of Fluke’s laser distance meter range and is identified by Fluke as model Fluke 424D. The instrument is designed for point-and-click distance measurement up to 100 m / 330 ft when used with a Leica target plate, with a typical range of 80 m / 260 ft under specified conditions.
For industrial and commercial measurement work, the Fluke 424D helps reduce manual measuring errors, especially in situations where long distances, ceilings, room diagonals, equipment clearances, building layouts, or hard-to-reach points must be measured quickly. Instead of requiring two people to hold and read a measuring tape, the user can aim the laser at the target point and capture a digital measurement. Fluke’s official product information highlights one-button point-and-click operation, area and volume calculation, a 180° inclination sensor, and enhanced Pythagoras calculation for indirect distance measurement.
The Fluke 424D is particularly useful where direct access to the measurement point is difficult. Its inclination sensor supports leveling and height tracking, while the built-in compass provides a heading reference for distance measurement. The device also includes automated end-piece correction: when measuring from an edge or corner, a sensor detects the bracket position and adjusts the reference point automatically. These functions make the meter suitable for building infrastructure, facilities work, inspection tasks, layout checks, and maintenance planning where consistent measurement documentation is important.
Key Features
- Measures up to 100 m / 330 ft with Leica target plate support, with a typical range of 80 m / 260 ft under specified conditions.
- Typical measuring tolerance of ±1.0 mm and maximum measuring tolerance of ±2.0 mm under Fluke’s stated test conditions.
- Quickly calculates area and volume for building, room, layout, and space measurement tasks.
- Includes a 180° inclination sensor for leveling and height tracking.
- Enhanced Pythagoras calculation supports indirect distance measurement from three other measurements.
- Built-in compass provides a measurement heading reference.
- Large four-line backlit display improves visibility in work environments.
- Minimum/maximum tracking supports diagonal and horizontal distance measurements from a stable point.
- Tripod mounting support helps with stable long-distance measurement.
- Stores the last twenty measurements for quick recall.
- IP54 protection provides water spray and dust protection according to Fluke’s stated specification.
- Powered by two AAA batteries with battery life up to 5,000 measurements.
Applications
The Fluke 424D laser distance meter is suitable for professional distance measurement in building infrastructure, facilities maintenance, construction support, inspection, interior measurement, equipment positioning, room layout, and project estimation. Its ability to calculate area and volume makes it useful for floor area measurement, space planning, HVAC-related room measurement, material estimation, and service documentation.
For maintenance and engineering teams, the meter can help measure high ceilings, long corridors, machine clearances, installation distances, and hard-to-access points without using ladders or requiring a second person to hold a tape. Fluke’s data sheet specifically notes that laser distance meters can speed up work in hard-to-access areas such as high ceilings and help users calculate area, volume, and height using Pythagoras functions.
The inclination sensor, height tracking, leveling function, corner angle feature, compass, stake-out function, and memory recall make the Fluke 424D a practical choice for buyers who need more than simple distance measurement. It is well suited for professional teams that need reliable measurement data for site work, building checks, installation planning, maintenance documentation, and procurement-standard tool kits.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Fluke |
| Model | Fluke 424D |
| Product Type | Laser Distance Meter |
| Distance Range with Leica Target Plate GZM26 | 100 m / 330 ft |
| Typical Range | 80 m / 260 ft |
| Range at Unfavorable Condition | 60 m / 195 ft |
| Typical Measuring Tolerance | ±1.0 mm |
| Maximum Measuring Tolerance | ±2.0 mm |
| Tilt Measurement Range | 360° |
| Tilt Measuring Tolerance to Laser Beam | ±0.2° |
| Tilt Measuring Tolerance to Housing | ±0.2° |
| Laser Class | Class 2 |
| Laser Type | 635 nm, < 1 mW |
| Protection Class | IP54 |
| Display | Large four-line backlit display |
| Automatic Laser Off | After 90 seconds |
| Automatic Power Off | After 180 seconds |
| Power Supply | 2 x AAA 1.5 V NEDA 24A / IEC LR03 |
| Battery Life | Up to 5,000 measurements |
| Dimensions | 127 x 56 x 33 mm |
| Weight | 158 g with batteries |
| Storage Temperature | -25°C to +70°C |
| Operating Temperature | -10°C to +50°C |
| Maximum Altitude | 3000 m |
| Safety | IEC 61010-1:2001; EN60825-1:2007 Class II |
| EMC | EN 55022:2010; EN 61000-4-3:2010; EN 61000-4-8:2010 |
Specifications above are based on Fluke’s official product page and official technical data sheet.
Package Contents
- Fluke 424D Laser Distance Meter
- Two AAA batteries
- User manual on CD
- Quick reference guide
- Vinyl carrying pouch
- Lanyard
- Three-year warranty
Package contents are listed on Fluke’s official product page for the Fluke 424D model.
Why Choose This Product
The Fluke 424D is a strong option for procurement teams and technical buyers who need a professional laser distance meter with advanced measurement functions rather than a basic handheld distance tool. Its combination of 100 m / 330 ft measuring capability, ±1.0 mm typical measuring tolerance, area and volume calculation, enhanced Pythagoras functions, tilt measurement, compass reference, and IP54 protection makes it suitable for demanding measurement work in building and industrial environments.
For field teams, the large backlit display, automatic shut-off, tripod support, minimum/maximum tracking, memory recall, and automated end-piece correction help simplify measurement workflows. For purchasing teams, the Fluke brand, official documentation, defined package contents, and three-year warranty support clear technical evaluation and standardized sourcing.
Call to Action
Contact us for a quotation, technical datasheet, availability confirmation, accessory options, or bulk purchasing support for the Fluke 424D Laser Distance Meter.
