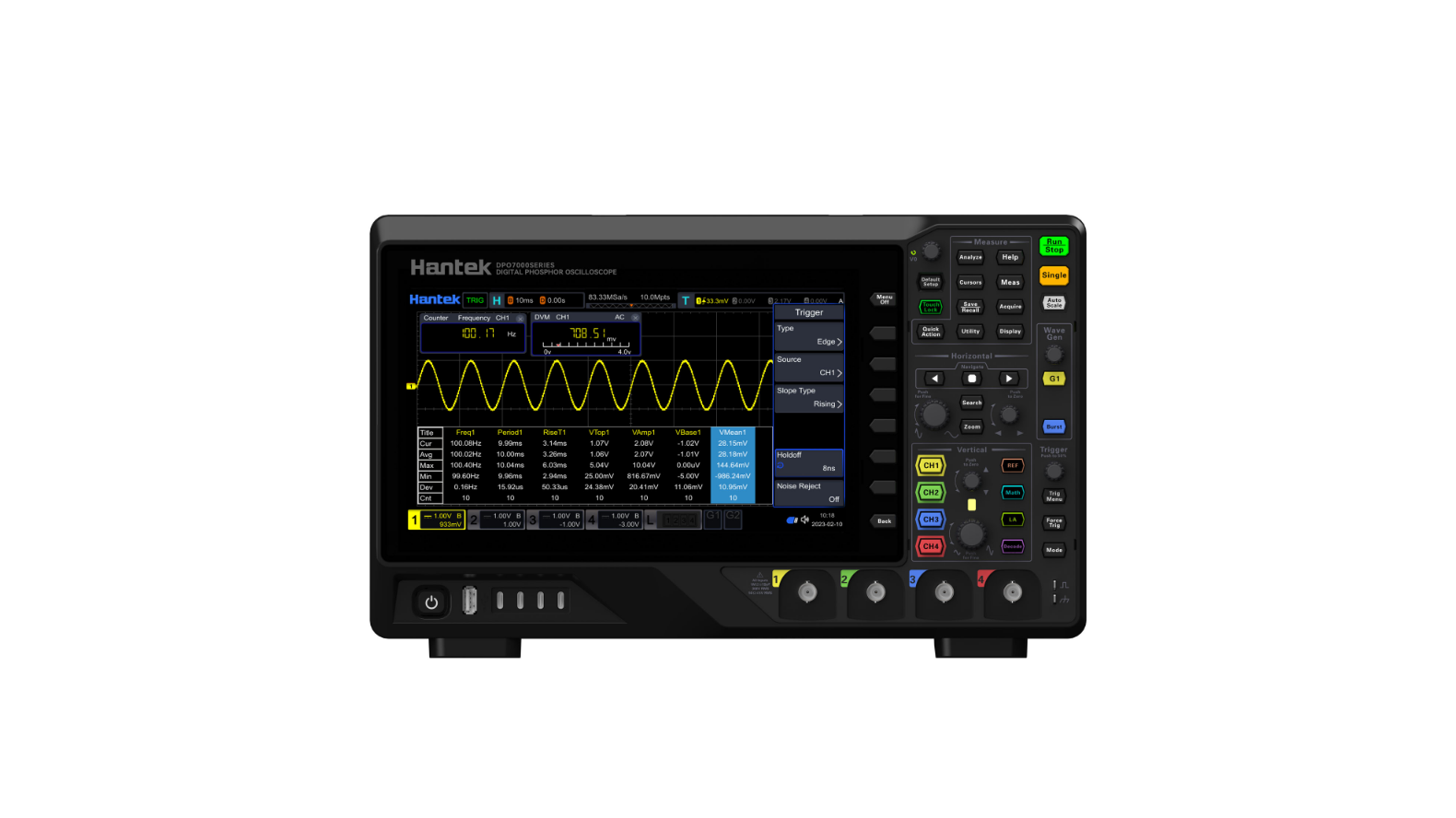

The Hantek DPO7000 Series Digital Oscilloscope is a powerful and versatile measurement instrument designed for engineers, R&D teams, and industrial testing environments. Combining multiple instruments into a single platform, the DPO7000 integrates oscilloscope, logic analyzer, spectrum analyzer, arbitrary waveform generator, digital voltmeter, frequency counter, protocol analyzer, and protocol generator functionalities.

With a maximum bandwidth of up to 500 MHz and a real-time sampling rate of 2 GSa/s, the DPO7000 enables precise capture and analysis of high-speed signals. Its ultra-deep memory depth of up to 2 Gpts ensures that long-duration waveforms can be recorded without losing critical details, making it ideal for debugging complex electronic systems.

The device features a 10.1-inch multi-touch capacitive display with 256-level waveform intensity grading, offering intuitive control and enhanced waveform visibility. Combined with a waveform capture rate exceeding 500,000 waveforms per second, the DPO7000 ensures that even rare signal anomalies are detected efficiently.

---

Key Features

• Up to 500 MHz bandwidth for high-frequency signal analysis

• Real-time sampling rate up to 2 GSa/s

• Ultra-deep memory depth of 2 Gpts for long waveform capture

• 500,000 wfms/s waveform capture rate for detecting rare events

• 8-in-1 multifunction instrument integration

• 10.1-inch multi-touch capacitive screen with high-resolution display

• Supports 16 digital channels for mixed-signal analysis

• Built-in 50 MHz arbitrary waveform generator

• Advanced serial protocol trigger and decode (UART, I2C, SPI, CAN, LIN)

• Up to 51 automatic measurements with full memory analysis

• Powerful analysis tools including histogram, power analysis, and Bode plot

These features allow engineers to significantly reduce debugging time while improving measurement accuracy and efficiency.

---

Applications

The Hantek DPO7000 is suitable for a wide range of professional applications:

• Embedded system design and debugging

• Automotive electronics testing (CAN, LIN bus analysis)

• Power electronics and power supply analysis

• Communication system testing

• Industrial automation diagnostics

• Education and research laboratories

• Mixed-signal circuit analysis

Its integrated multi-instrument design makes it especially valuable for environments requiring flexible and cost-effective test solutions.

---

Technical Specifications

Specifications may vary depending on model variant (DPO7100 / DPO7200 / DPO7500 series).

---

Package Contents

• Hantek DPO7000 Oscilloscope (main unit)

• Standard passive probes

• Power cable

• USB cable

• User manual

• Software / drivers (if applicable)

---

Call to Action

Upgrade your measurement capabilities with the Hantek DPO7000 Series. Contact us today for pricing, availability, and expert technical support tailored to your application needs.

---

【FAQ】

Q1: What is the maximum bandwidth of the Hantek DPO7000?
A: The series supports bandwidths ranging from 100 MHz up to 500 MHz depending on the model.

Q2: Does the DPO7000 support protocol decoding?
A: Yes, it supports multiple protocols including UART, I2C, SPI, CAN, and LIN.

Q3: How deep is the memory depth?
A: The oscilloscope provides up to 2 Gpts memory depth for long-duration waveform capture.

Q4: Is this a mixed-signal oscilloscope?
A: Yes, it includes 4 analog channels and 16 digital channels for mixed-signal analysis.

Q5: Does it include a waveform generator?
A: Yes, a built-in arbitrary waveform generator up to 50 MHz is included.
