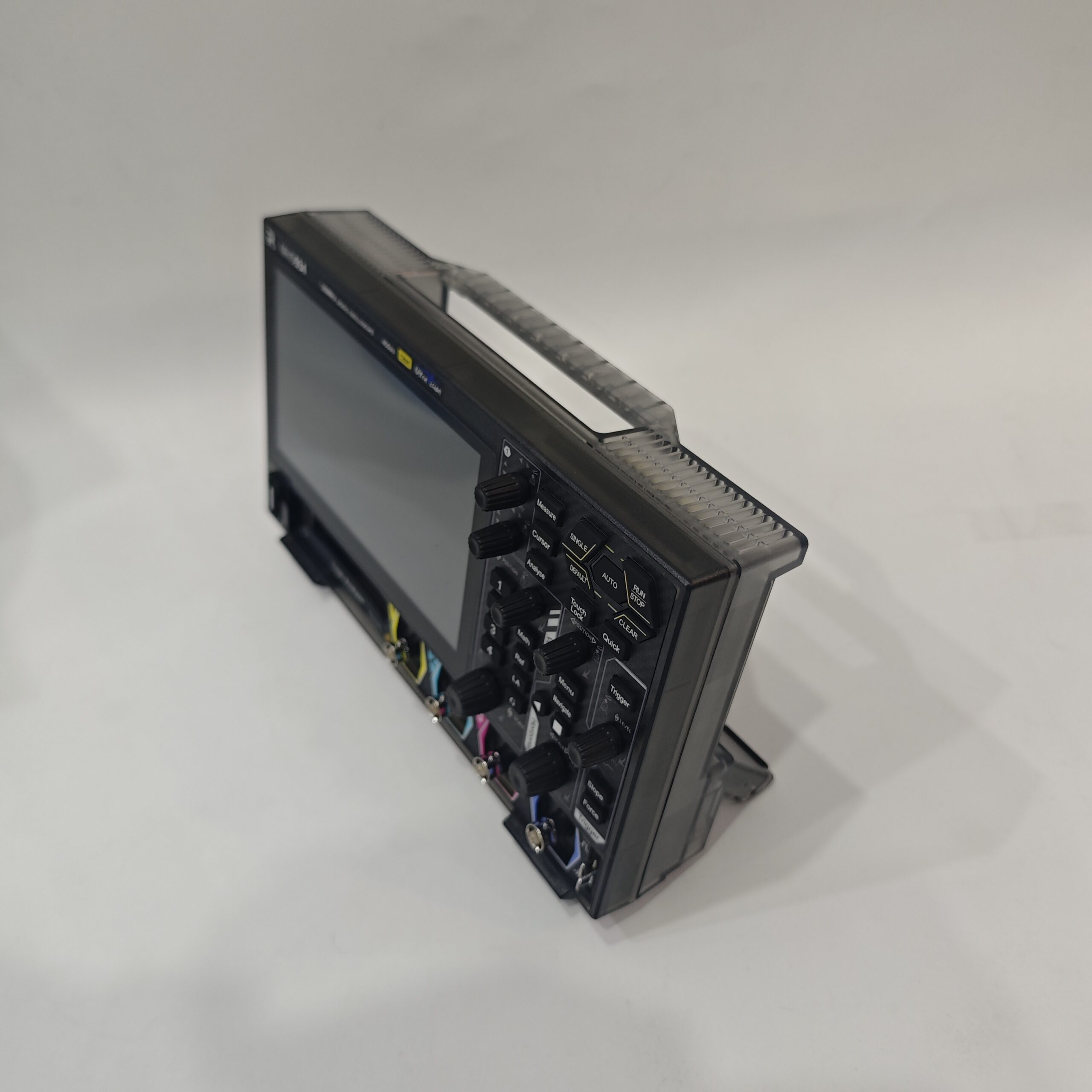

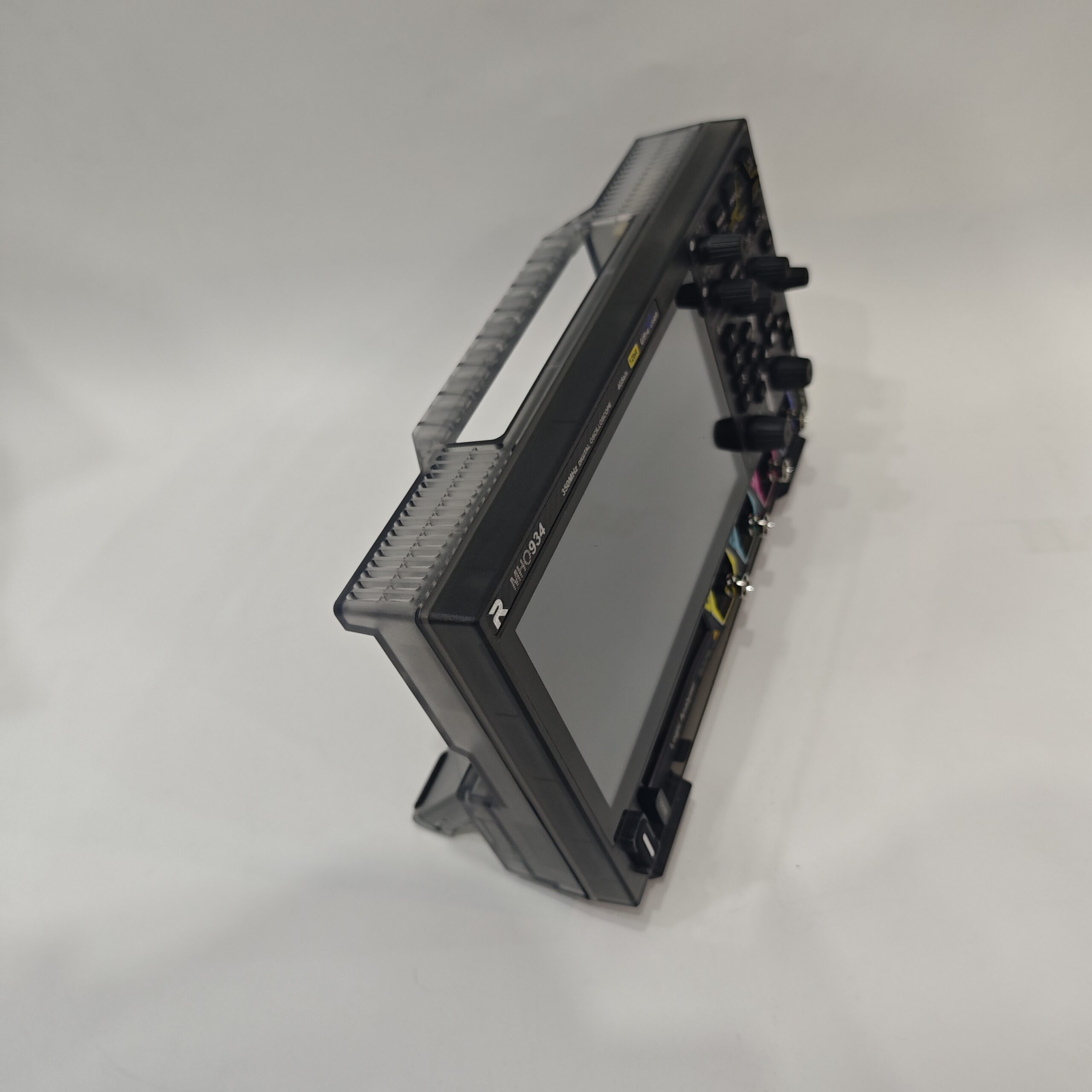

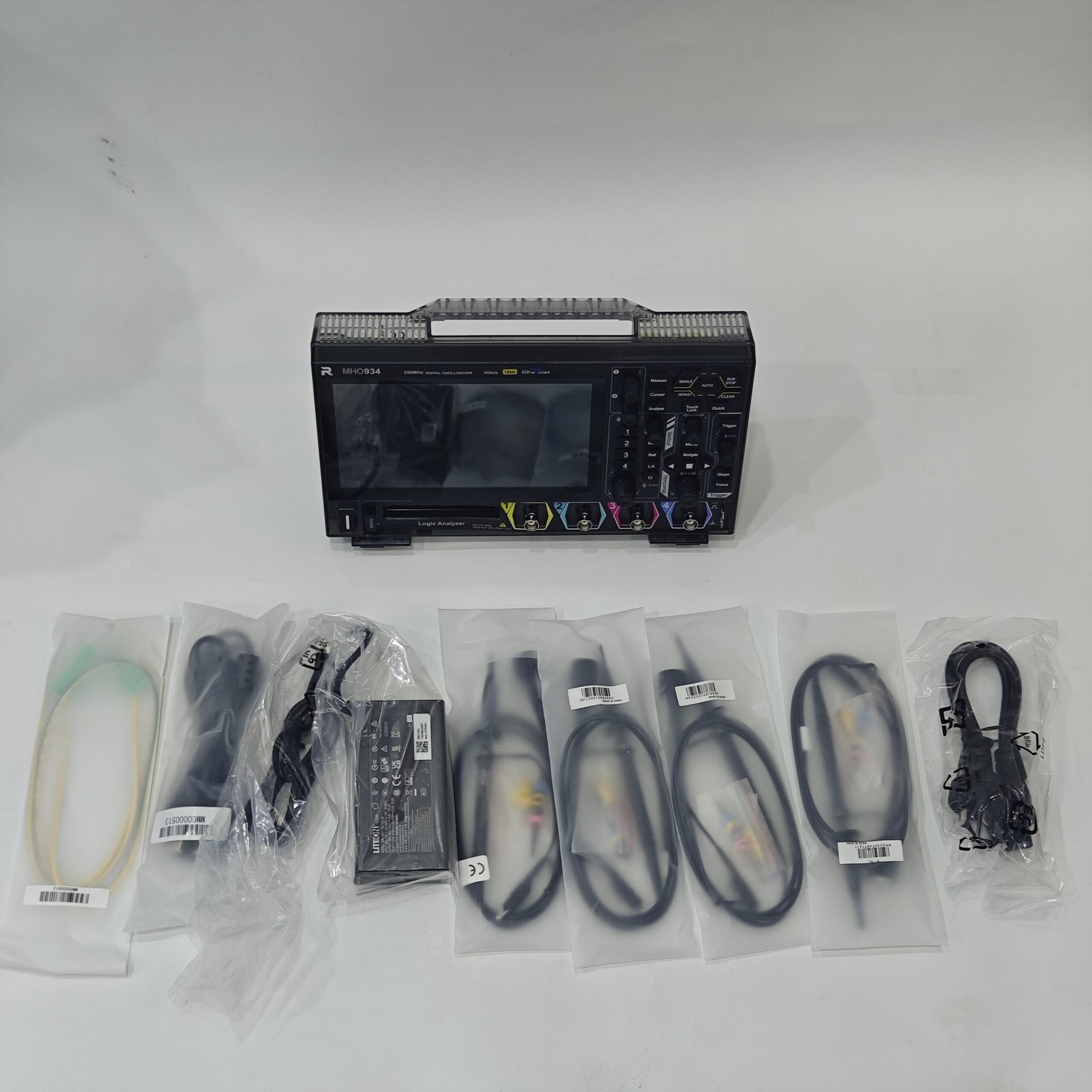

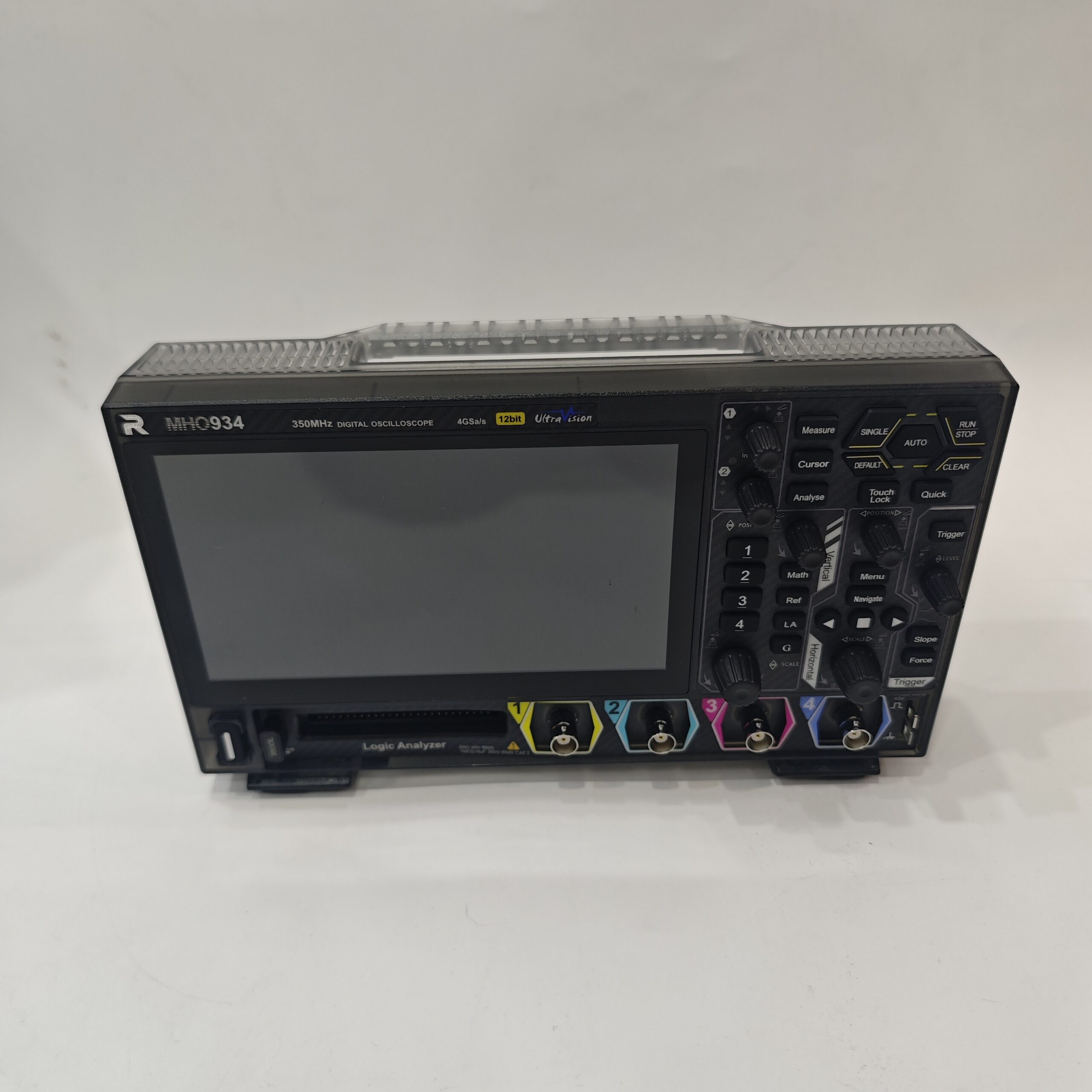

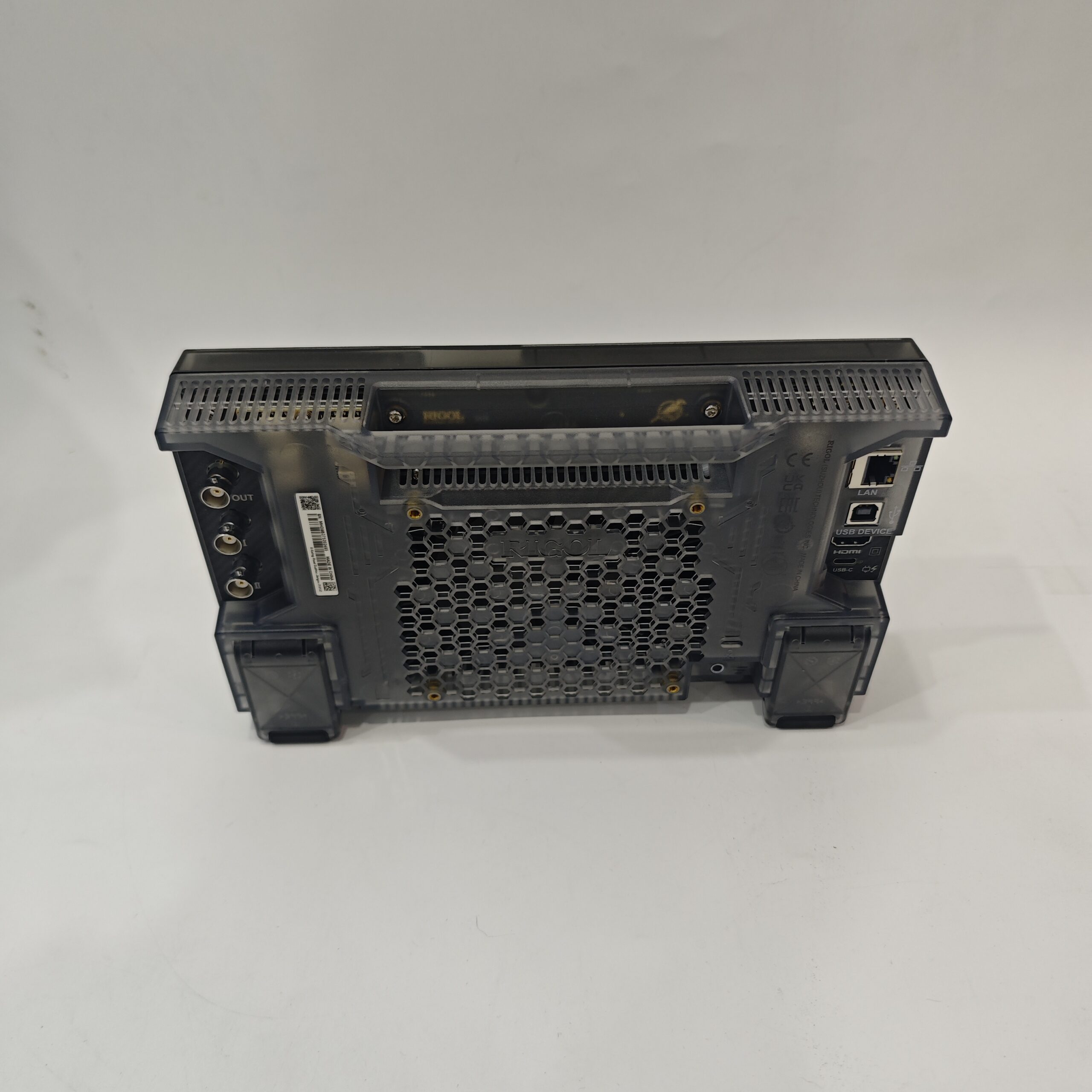

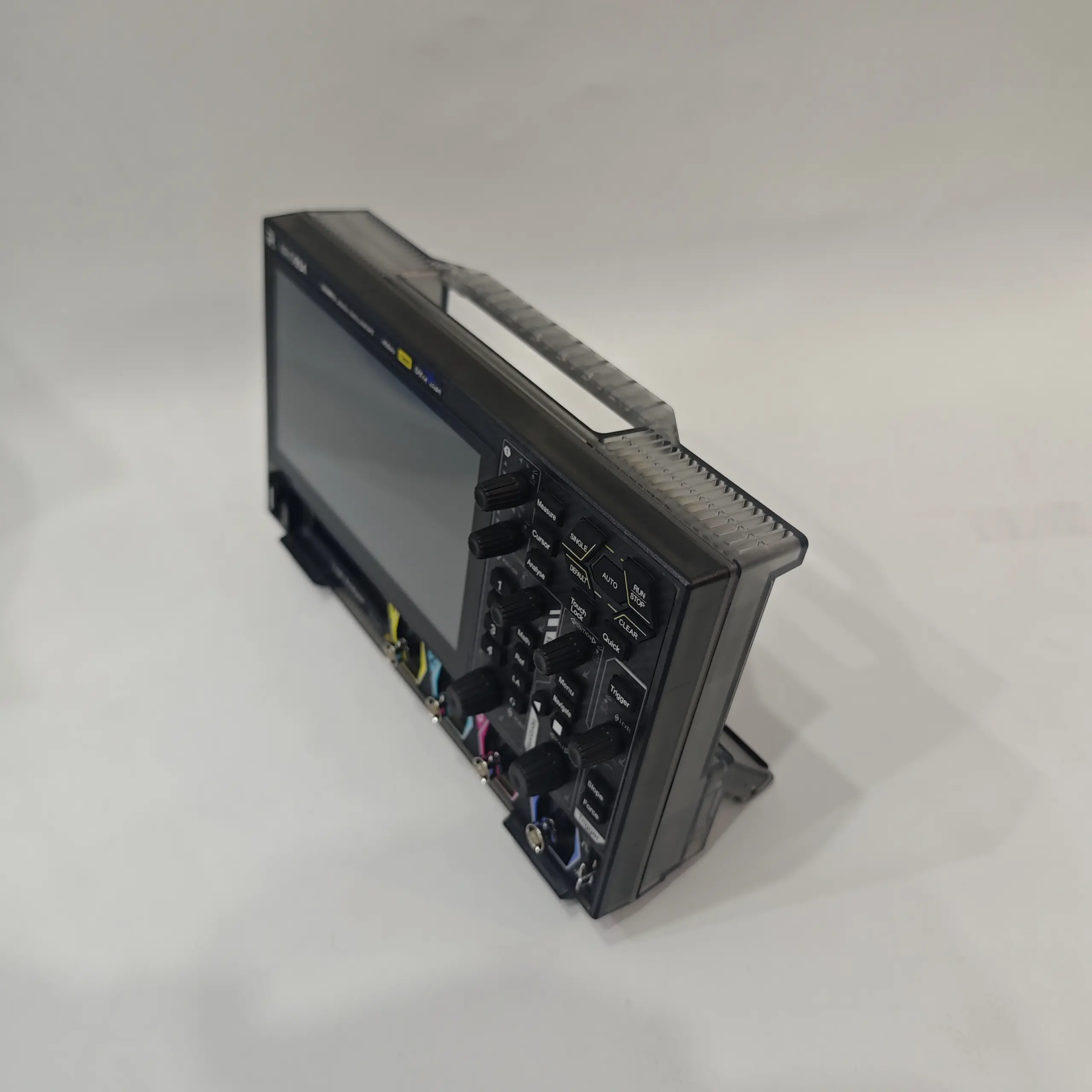

RIGOL MHO934 Digital Oscilloscope Overview
RIGOL MHO934 is a digital oscilloscope from the MHO900 series. Official RIGOL sources list Analog Bandwidth 350MHz, Memory Depth 500Mpts(opt.) pts, and Waveform Capture Rate 1,000,000 wfms/s wfms/s for this exact model. It is intended for electronic design debugging, signal integrity and waveform analysis, and education, maintenance, and production test. Use the verified specification table below to compare the required configuration, interfaces, probes, modules, and accessories before requesting a quotation.
Key Features
- Verified Analog Bandwidth: 350MHz.
- Verified Memory Depth: 500Mpts(opt.) pts.
- Verified Waveform Capture Rate: 1,000,000 wfms/s wfms/s.
- Verified Digital Channel: 16(Probe opt.).
- Verified Built-in Signal Source: 100MHz, 2CH(opt.).
- Verified Analog Channels: 4.
- Verified Real-time Sample Rate: 4GSa/s.
Technical Specifications
| Analog Bandwidth | 350MHz |
|---|---|
| Memory Depth | 500Mpts(opt.) pts |
| Waveform Capture Rate | 1,000,000 wfms/s wfms/s |
| Digital Channel | 16(Probe opt.) |
| Built-in Signal Source | 100MHz, 2CH(opt.) |
| Analog Channels | 4 |
| Real-time Sample Rate | 4GSa/s |
Typical Applications
- Electronic design debugging
- Signal integrity and waveform analysis
- Education, maintenance, and production test
Selection Guidance
For the RIGOL MHO934, confirm bandwidth, analog and digital channel count, sample rate, memory depth, probe compatibility, and required protocol or analysis options. Provide the required configuration, quantity, destination country, and application details when requesting a quote.
Frequently Asked Questions
What are the key specifications of the RIGOL MHO934?
The verified record for the RIGOL MHO934 lists Analog Bandwidth 350MHz, Memory Depth 500Mpts(opt.) pts, and Waveform Capture Rate 1,000,000 wfms/s wfms/s. Refer to the complete table on this page because options and measurement conditions may affect the final configuration.
Which applications are suitable for the RIGOL MHO934?
Typical uses include electronic design debugging, signal integrity and waveform analysis, and education, maintenance, and production test. Suitability should be confirmed against the required ranges, channels, interfaces, accessories, and test method.
What information is needed to quote the RIGOL MHO934?
Provide the full model, required options or accessories, quantity, destination country, application, and any calibration or documentation requirements. Hoyu Instruments will confirm configuration and availability before quoting.
