Description
Product Overview

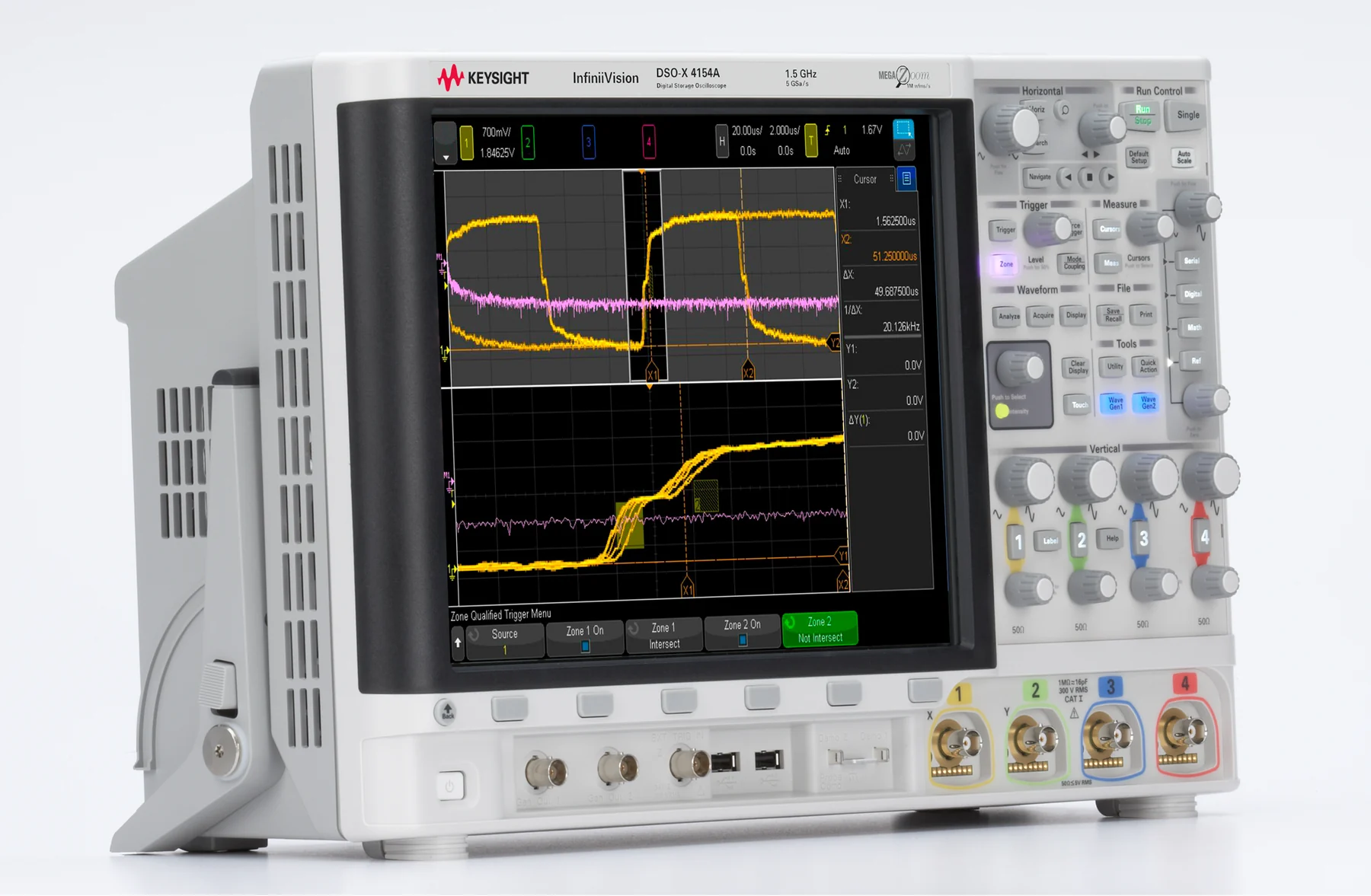

Keysight positions the DSOX4154A as a digital oscilloscope for electronic design debugging. It is part of the InfiniiVision 4000 X-Series Oscilloscopes. Model-specific evidence confirms analog bandwidth: 1.5 GHz, number of analog channels: 4, number of digital channels: 0, maximum sampling rate: 5 (interleaved); 2.5 (full channel) GSa/s, and maximum storage depth: 4 (half channel); 2 (full channel) Mpts, supporting engineering work such as signal integrity and waveform analysis and education, maintenance, and production test. Exact options, interfaces, accessories, calibration scope, and regional availability depend on the ordered configuration and should be confirmed before purchase.
Key Features
- Analog bandwidth: 1.5 GHz.
- Number of analog channels: 4.
- Number of digital channels: 0.
- Maximum sampling rate: 5 (interleaved); 2.5 (full channel) GSa/s.
- Maximum storage depth: 4 (half channel); 2 (full channel) Mpts.
- Waveform update rate: > 1,000,000 waveforms/s.
Technical Specifications
| Analog bandwidth | 1.5 GHz |
|---|---|
| Number of analog channels | 4 |
| Number of digital channels | 0 |
| Maximum sampling rate | 5 (interleaved); 2.5 (full channel) GSa/s |
| Maximum storage depth | 4 (half channel); 2 (full channel) Mpts |
| Waveform update rate | > 1,000,000 waveforms/s |
| Display | 12.1-inch capacitive touch screen |
| vertical resolution | 8 bit |
| WaveGen | Dual channel 20 MHz (optional) |
| product status | Discontinued / Still supported |
Typical Applications
- Electronic design debugging
- Signal integrity and waveform analysis
- Education, maintenance, and production test
Selection Notes
The first configuration checks for the Keysight DSOX4154A are analog bandwidth (1.5 GHz) and number of analog channels (4). For a complete selection, confirm bandwidth, analog and digital channel count, sample rate, memory depth, probe compatibility, and required analysis options. Confirm regional availability, calibration scope, included items, and delivery requirements before ordering.
Frequently Asked Questions
What is the Keysight DSOX4154A?
The Keysight DSOX4154A is a digital oscilloscope intended for professional test and measurement applications.
What are key specifications of the DSOX4154A?
Key verified specifications include analog bandwidth: 1.5 GHz and number of analog channels: 4. Review the full table for model-specific details.
How should I specify the Keysight DSOX4154A for quotation?
State the measurement requirement, selected options, quantity, destination, and calibration or accessory needs. Hoyu Instruments will use those details to confirm the configuration before quoting.
