Description
Product Overview

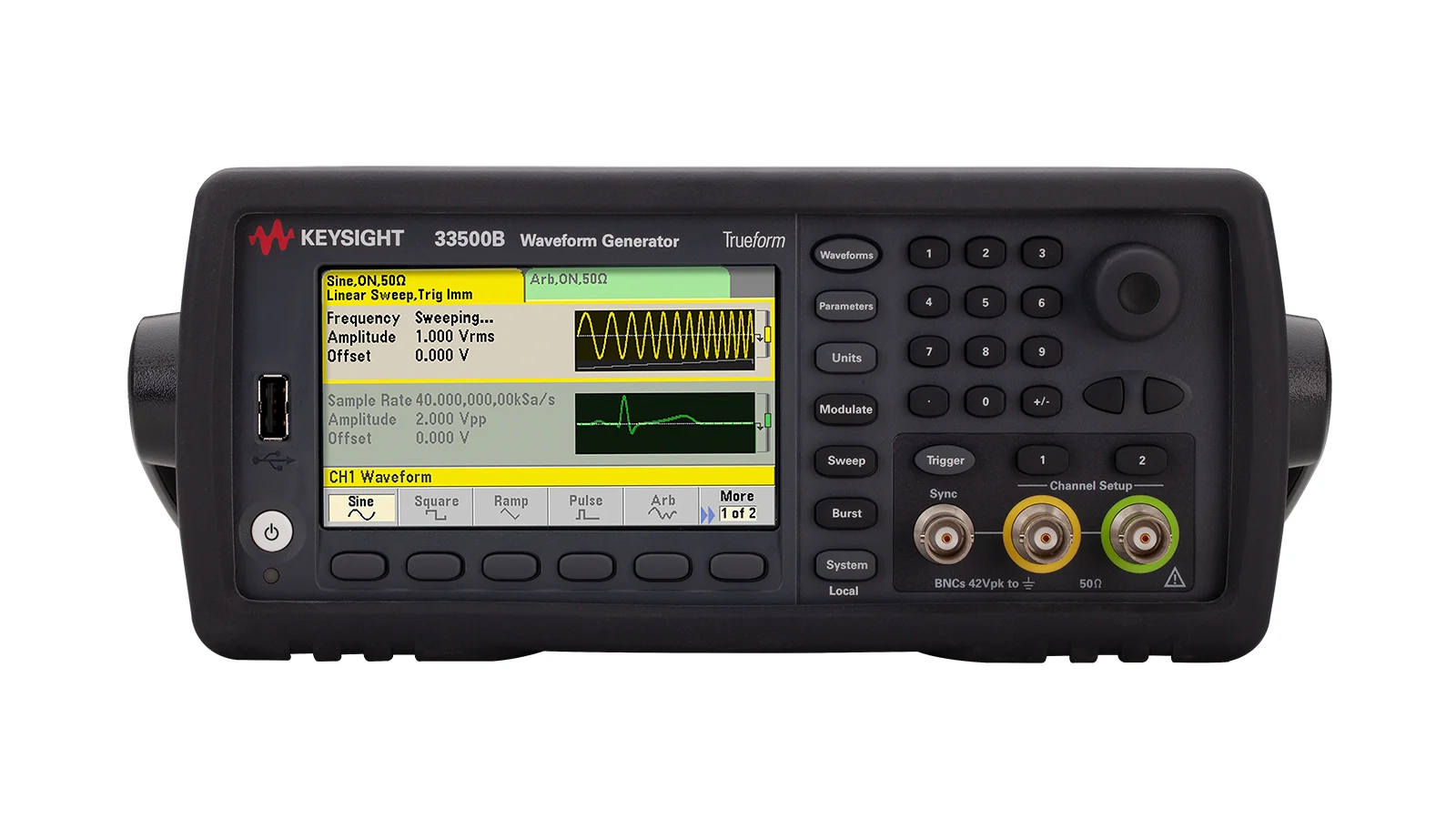

For electronic design verification, the Keysight 33522B combines highest sine wave frequency: 30 MHz, output channel: 2 channels, maximum sampling rate: 250 MSa/s, amplitude resolution: 16 bit, and arbitrary waveform: Supported in a function/arbitrary waveform generator platform. It is part of the 33500B Series Waveform Generators. It can also be evaluated for component and circuit characterization and laboratory signal simulation. Exact options, interfaces, accessories, calibration scope, and regional availability depend on the ordered configuration and should be confirmed before purchase.
Key Features
- Highest sine wave frequency: 30 MHz.
- Output channel: 2 channels.
- Maximum sampling rate: 250 MSa/s.
- Amplitude resolution: 16 bit.
- Arbitrary waveform: Supported.
- Waveform storage: 1 MSa/channel standard, 16 MSa/channel option.
Technical Specifications
| highest sine wave frequency | 30 MHz |
|---|---|
| Output channel | 2 channels |
| Maximum sampling rate | 250 MSa/s |
| Amplitude resolution | 16 bit |
| arbitrary waveform | Supported |
| Waveform storage | 1 MSa/channel standard, 16 MSa/channel option |
| Jitter | < 40 ps |
| Communication interface | USB, LAN, GPIB |
Typical Applications
- Electronic design verification
- Component and circuit characterization
- Laboratory signal simulation
Selection Notes
Start selection of the Keysight 33522B by checking the verified highest sine wave frequency (30 MHz) and output channel (2 channels). Then compare bandwidth, sample rate, memory, channel count, output amplitude, waveform functions, and synchronization needs. Confirm regional availability, calibration scope, included items, and delivery requirements before ordering.
Frequently Asked Questions
What is the Keysight 33522B?
The Keysight 33522B is a function/arbitrary waveform generator intended for professional test and measurement applications.
What are key specifications of the 33522B?
Key verified specifications include highest sine wave frequency: 30 MHz and output channel: 2 channels. Review the full table for model-specific details.
What information is needed to quote the 33522B?
Provide the intended application, configuration or options, quantity, delivery country, and any calibration or accessory requirements so the quotation can be checked accurately.
