Description
Product Overview

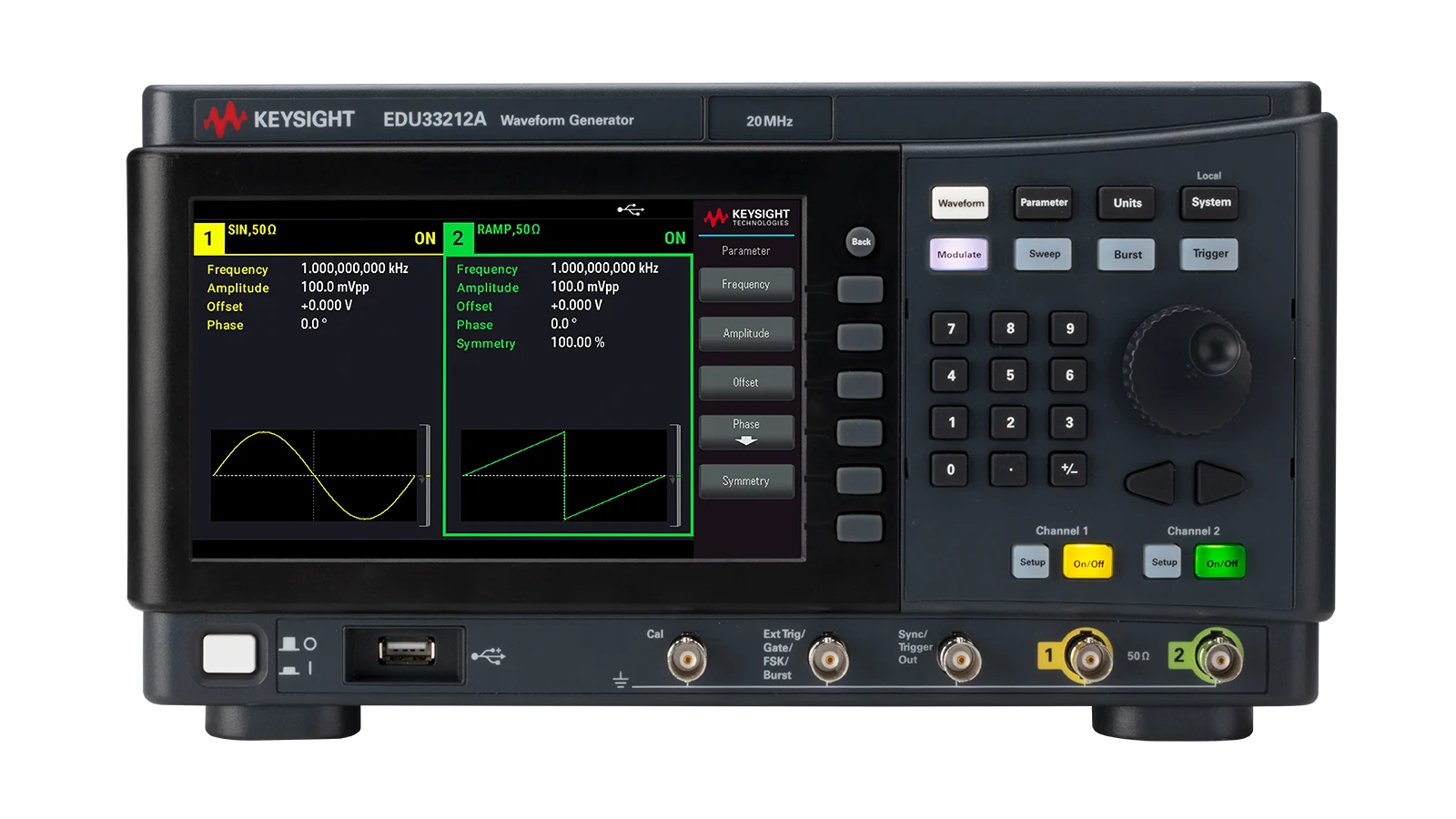

For electronic design verification, the Keysight EDU33212A combines highest sine wave frequency: 20 MHz, output channel: 2 channels, maximum sampling rate: 250 MSa/s, amplitude resolution: 16 bit, and arbitrary waveform: Supported in a function/arbitrary waveform generator platform. It is part of the Smart Bench Essentials Series. It can also be evaluated for component and circuit characterization and laboratory signal simulation. Exact options, interfaces, accessories, calibration scope, and regional availability depend on the ordered configuration and should be confirmed before purchase.
Key Features
- Highest sine wave frequency: 20 MHz.
- Output channel: 2 channels.
- Maximum sampling rate: 250 MSa/s.
- Amplitude resolution: 16 bit.
- Arbitrary waveform: Supported.
- Waveform storage: Up to 8 MSa/channel, up to 1 MSa per waveform.
Technical Specifications
| highest sine wave frequency | 20 MHz |
|---|---|
| Output channel | 2 channels |
| Maximum sampling rate | 250 MSa/s |
| Amplitude resolution | 16 bit |
| arbitrary waveform | Supported |
| Waveform storage | Up to 8 MSa/channel, up to 1 MSa per waveform |
| Jitter | 100 ps (>5 MHz summary) |
| Communication interface | USB, LAN |
Typical Applications
- Electronic design verification
- Component and circuit characterization
- Laboratory signal simulation
Selection Notes
Start selection of the Keysight EDU33212A by checking the verified highest sine wave frequency (20 MHz) and output channel (2 channels). Then compare bandwidth, sample rate, memory, channel count, output amplitude, waveform functions, and synchronization needs. Confirm regional availability, calibration scope, included items, and delivery requirements before ordering.
Frequently Asked Questions
What is the Keysight EDU33212A?
The Keysight EDU33212A is a function/arbitrary waveform generator intended for professional test and measurement applications.
What are key specifications of the EDU33212A?
Key verified specifications include highest sine wave frequency: 20 MHz and output channel: 2 channels. Review the full table for model-specific details.
What information is needed to quote the EDU33212A?
Provide the intended application, configuration or options, quantity, delivery country, and any calibration or accessory requirements so the quotation can be checked accurately.
