Description
Product Overview

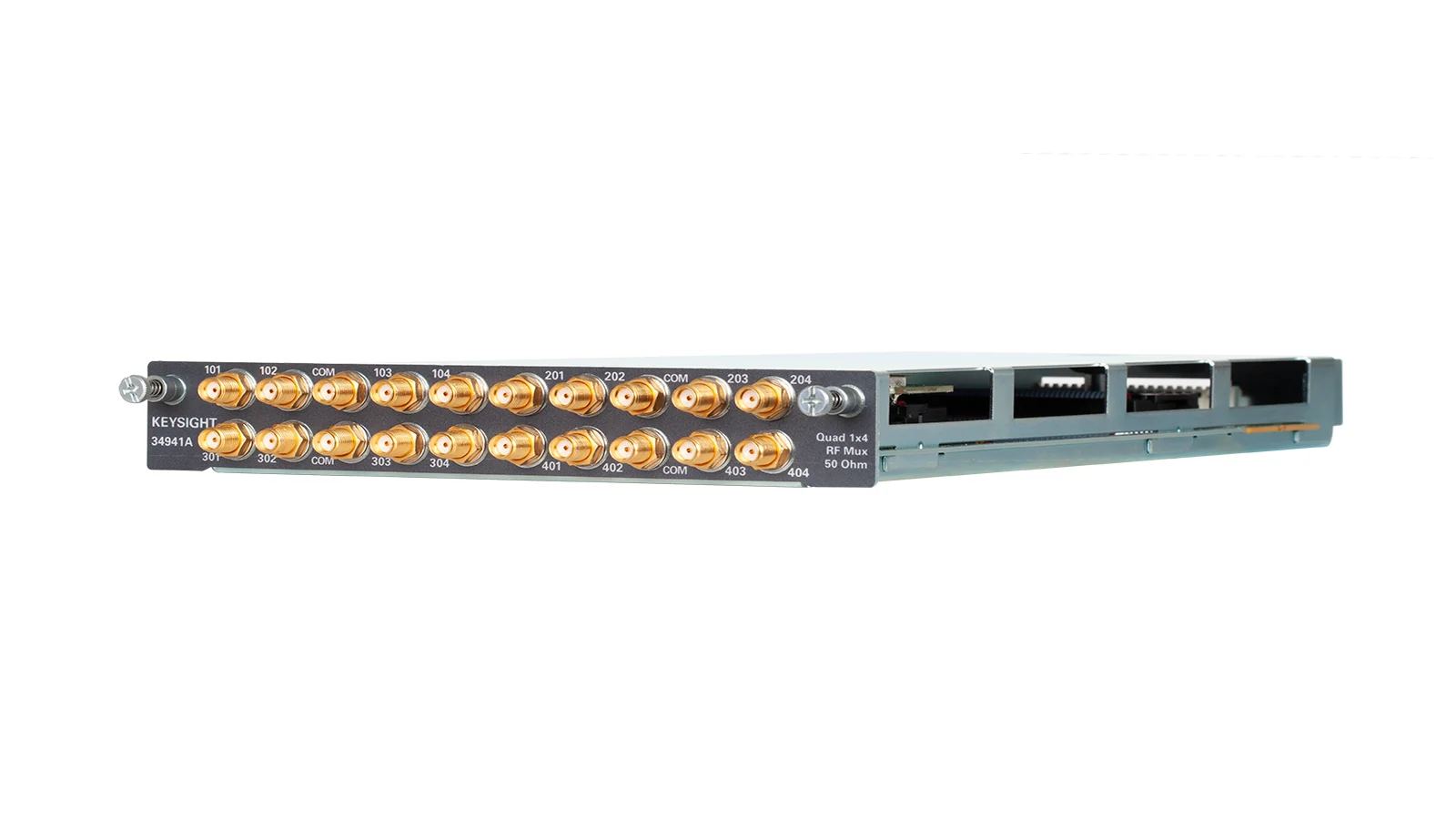

The Keysight 34941A is an RF multiplexing module specified for automated test system switching. It is part of the 34980A Multifunction Switch/Measure Modules. Verified model data includes channels/crosspoints: 4 independent 1×4 channel groups (16 paths), topology: Bidirectional 50 Ω RF multiplexing, SMA connections, key performance: DC to 3 GHz; insertion loss <0.6 dB, isolation >58 dB, VSWR <1.25 at 1 GHz, rated capacity: 30 V, 0.5 A, 10 W, and mainframe compatibility: Keysight 34980A. The same capabilities support multi-channel data acquisition and production test signal routing. Exact options, interfaces, accessories, calibration scope, and regional availability depend on the ordered configuration and should be confirmed before purchase.
Key Features
- Channels/crosspoints: 4 independent 1×4 channel groups (16 paths).
- Topology: Bidirectional 50 Ω RF multiplexing, SMA connections.
- Key performance: DC to 3 GHz; insertion loss <0.6 dB, isolation >58 dB, VSWR <1.25 at 1 GHz.
- Rated capacity: 30 V, 0.5 A, 10 W.
- Mainframe compatibility: Keysight 34980A.
- Module type: RF multiplexing module.
Technical Specifications
| Channels/crosspoints | 4 independent 1×4 channel groups (16 paths) |
|---|---|
| Topology | Bidirectional 50 Ω RF multiplexing, SMA connections |
| key performance | DC to 3 GHz; insertion loss <0.6 dB, isolation >58 dB, VSWR <1.25 at 1 GHz |
| Rated capacity | 30 V, 0.5 A, 10 W |
| Mainframe compatibility | Keysight 34980A |
| module type | RF multiplexing module |
Typical Applications
- Automated test system switching
- Multi-channel data acquisition
- Production test signal routing
Selection Notes
For the Keysight 34941A, verify mainframe compatibility, channel topology, voltage and current limits, switching speed, terminal blocks, and wiring accessories. Use the verified channels/crosspoints (4 independent 1×4 channel groups (16 paths)) and topology (Bidirectional 50 Ω RF multiplexing, SMA connections) as initial selection checks. Confirm regional availability, calibration scope, included items, and delivery requirements before ordering.
Frequently Asked Questions
What is the Keysight 34941A?
The Keysight 34941A is an RF multiplexing module intended for professional test and measurement applications.
What are key specifications of the 34941A?
Key verified specifications include channels/crosspoints: 4 independent 1×4 channel groups (16 paths) and topology: Bidirectional 50 Ω RF multiplexing, SMA connections. Review the full table for model-specific details.
How can I request a quote for the Keysight 34941A?
Send the required configuration, quantity, destination, and calibration or accessory requirements to Hoyu Instruments for a detailed quotation.
