Description
Product Overview

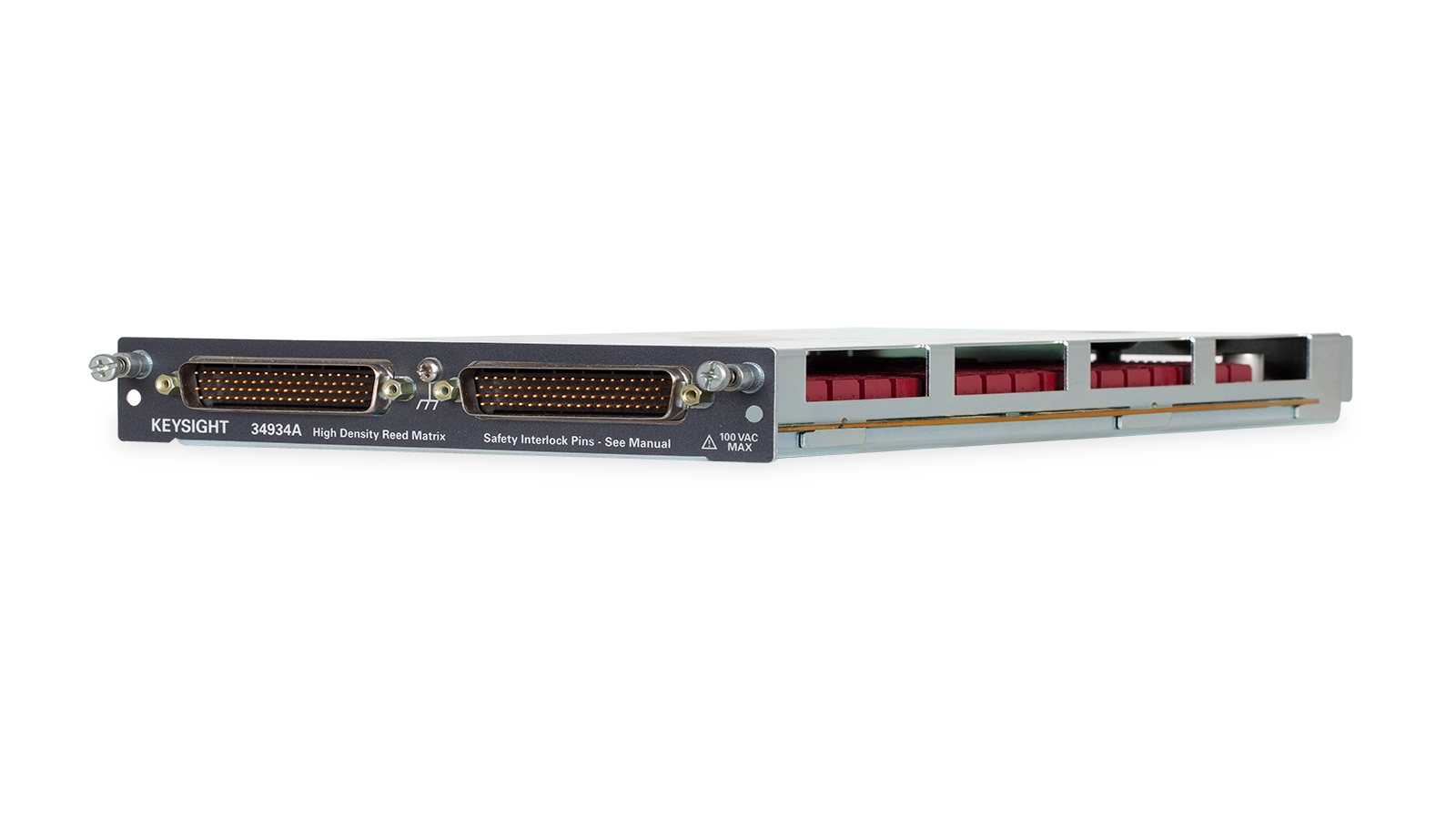

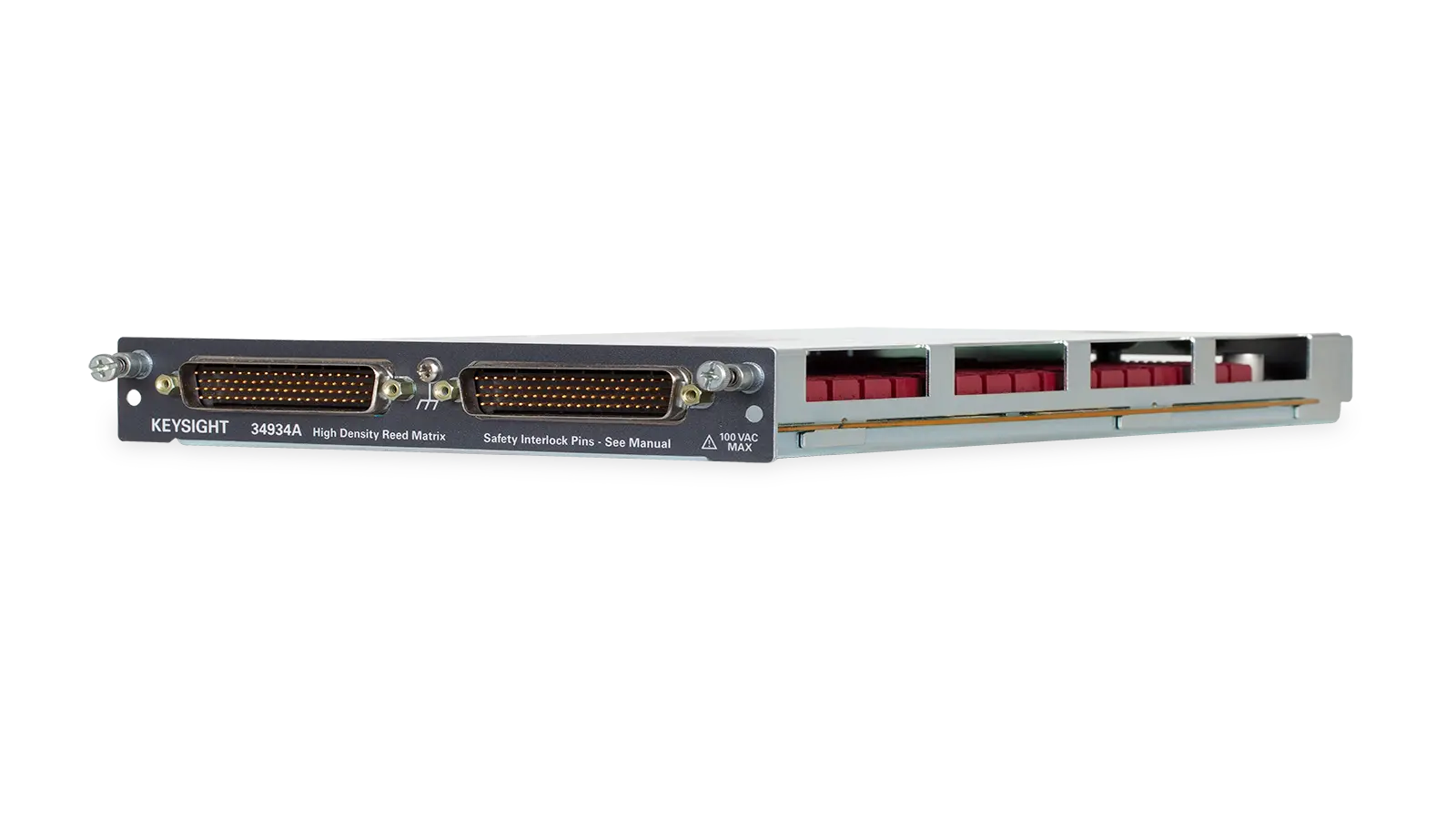

For automated test system switching, the Keysight 34934A combines channels/crosspoints: 512 intersections, topology: Configurable as 4×128, 8×64, or 16×32 1-wire matrices, or 4×64 or 8×32 2-wire matrices, key performance: Up to 500 channels/s; 20 MHz path bandwidth, rated capacity: 100 V, 0.5 A, and mainframe compatibility: Keysight 34980A in a high density matrix switch module platform. It is part of the 34980A Multifunction Switch/Measure System. It can also be evaluated for multi-channel data acquisition and production test signal routing. Exact options, interfaces, accessories, calibration scope, and regional availability depend on the ordered configuration and should be confirmed before purchase.
Key Features
- Channels/crosspoints: 512 intersections.
- Topology: Configurable as 4×128, 8×64, or 16×32 1-wire matrices, or 4×64 or 8×32 2-wire matrices.
- Key performance: Up to 500 channels/s; 20 MHz path bandwidth.
- Rated capacity: 100 V, 0.5 A.
- Mainframe compatibility: Keysight 34980A.
- Module type: High Density Matrix Switch Module.
Technical Specifications
| Channels/crosspoints | 512 intersections |
|---|---|
| Topology | Configurable as 4×128, 8×64, or 16×32 1-wire matrices, or 4×64 or 8×32 2-wire matrices |
| key performance | Up to 500 channels/s; 20 MHz path bandwidth |
| Rated capacity | 100 V, 0.5 A |
| Mainframe compatibility | Keysight 34980A |
| module type | High Density Matrix Switch Module |
Typical Applications
- Automated test system switching
- Multi-channel data acquisition
- Production test signal routing
Selection Notes
Start selection of the Keysight 34934A by checking the verified channels/crosspoints (512 intersections) and topology (Configurable as 4×128, 8×64, or 16×32 1-wire matrices, or 4×64 or 8×32 2-wire matrices). Then verify mainframe compatibility, channel topology, voltage and current limits, switching speed, terminal blocks, and wiring accessories. Confirm regional availability, calibration scope, included items, and delivery requirements before ordering.
Frequently Asked Questions
What is the Keysight 34934A?
The Keysight 34934A is a high density matrix switch module intended for professional test and measurement applications.
What are key specifications of the 34934A?
Key verified specifications include channels/crosspoints: 512 intersections and topology: Configurable as 4×128, 8×64, or 16×32 1-wire matrices, or 4×64 or 8×32 2-wire matrices. Review the full table for model-specific details.
What information is needed to quote the 34934A?
Provide the intended application, configuration or options, quantity, delivery country, and any calibration or accessory requirements so the quotation can be checked accurately.
