Description
Product Overview

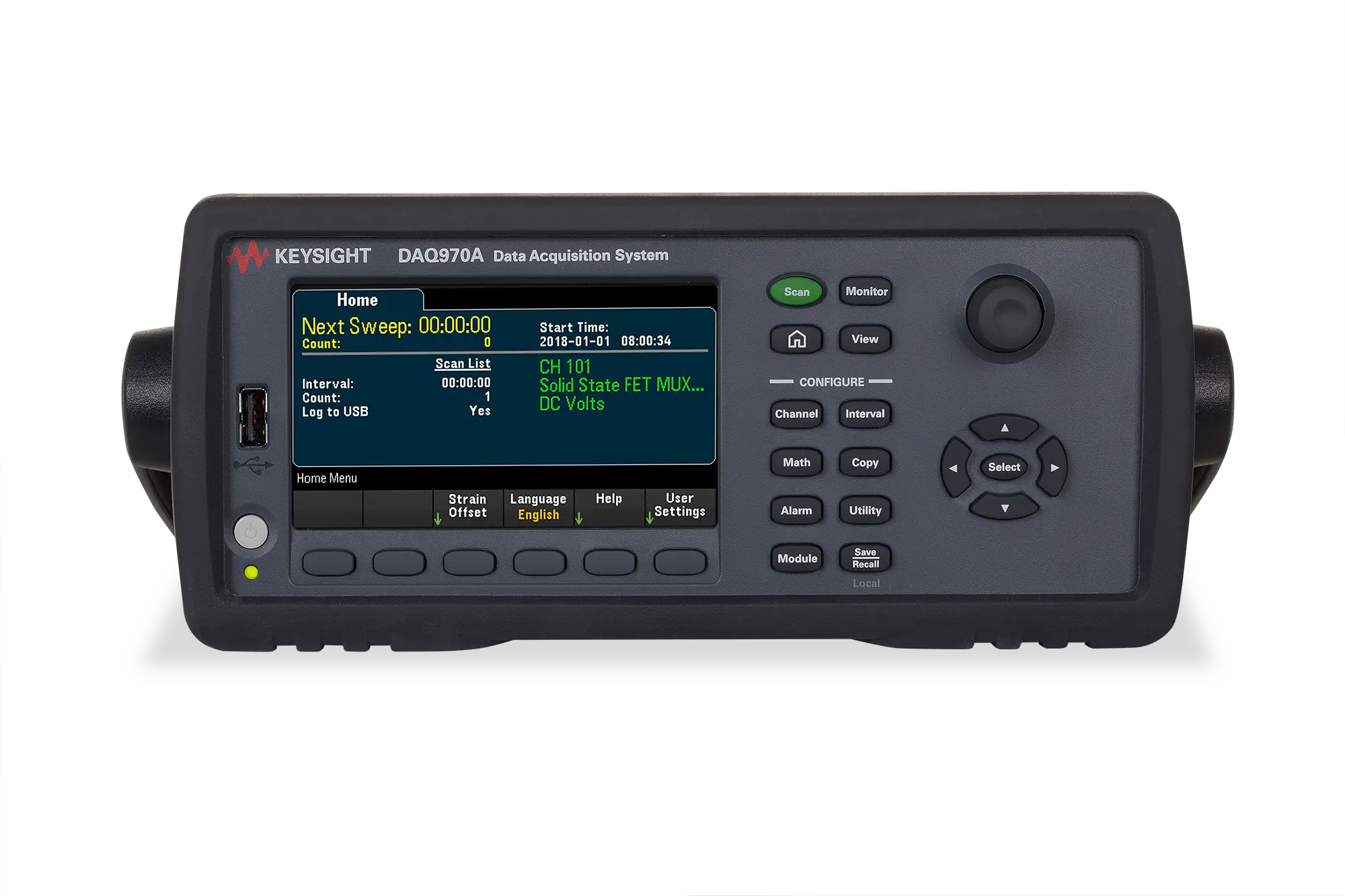

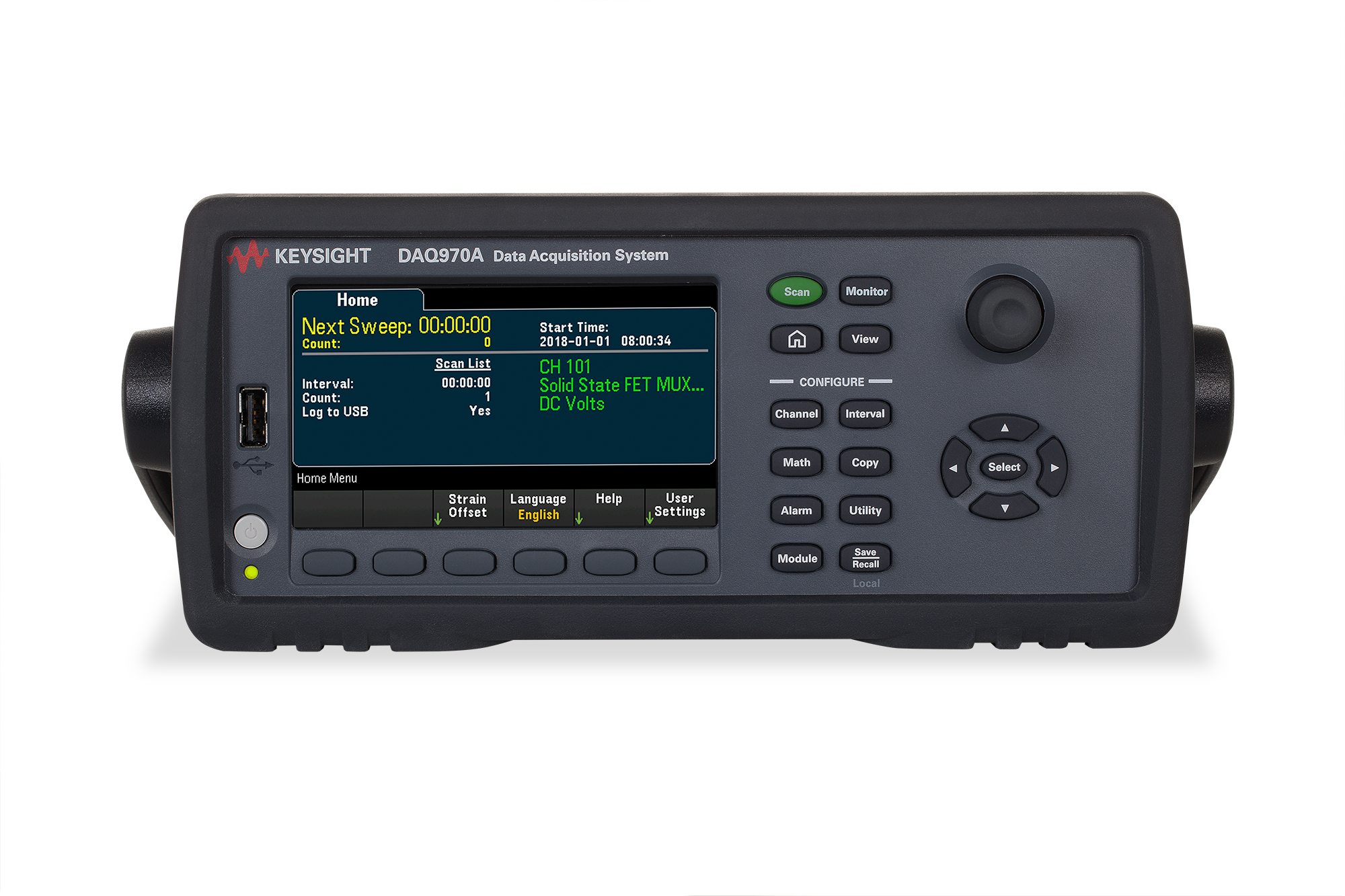

The verified specification set for the Keysight DAQ970A covers module slot: 3 slots, built-in DMM resolution: 6½ bits (22 bits), maximum channel scan speed: 450 channels/s, maximum channel capacity: Up to 120 channels, and communication interface: LAN, USB. As a data acquisition system, it is suited to long-term measurement logging, with related use in environmental and process monitoring and multi-channel laboratory data acquisition. It is part of the DAQ970A and DAQ973A Data Acquisition Systems. Exact options, interfaces, accessories, calibration scope, and regional availability depend on the ordered configuration and should be confirmed before purchase.
Key Features
- Module slot: 3 slots.
- Built-in DMM resolution: 6½ bits (22 bits).
- Maximum channel scan speed: 450 channels/s.
- Maximum channel capacity: Up to 120 channels.
- Communication interface: LAN, USB.
- Module selection: 10 switch and control plug-in modules.
Technical Specifications
| Module slot | 3 slots |
|---|---|
| Built-in DMM resolution | 6½ bits (22 bits) |
| Maximum channel scan speed | 450 channels/s |
| Maximum channel capacity | Up to 120 channels |
| Communication interface | LAN, USB |
| Module selection | 10 switch and control plug-in modules |
| data storage | 100,000 readings (non-volatile) |
| product status | Current product |
| DAQM909A sampling capability | 4 channels synchronized, 24 bit, up to 800 kSa/s |
Typical Applications
- Long-term measurement logging
- Environmental and process monitoring
- Multi-channel laboratory data acquisition
Selection Notes
Evaluate whether the Keysight DAQ970A meets the application by comparing module slot (3 slots) and built-in DMM resolution (6½ bits (22 bits)). In addition, check channel capacity, scan rate, supported sensor types, measurement accuracy, storage, and remote connectivity. Confirm regional availability, calibration scope, included items, and delivery requirements before ordering.
Frequently Asked Questions
What is the Keysight DAQ970A?
The Keysight DAQ970A is a data acquisition system intended for professional test and measurement applications.
What are key specifications of the DAQ970A?
Key verified specifications include module slot: 3 slots and built-in DMM resolution: 6½ bits (22 bits). Review the full table for model-specific details.
Can Hoyu Instruments quote a configured Keysight DAQ970A?
Yes. Supply the required options, interfaces, accessories, calibration scope, quantity, and destination so Hoyu Instruments can prepare a configuration-specific quotation.
