Description
Product Overview

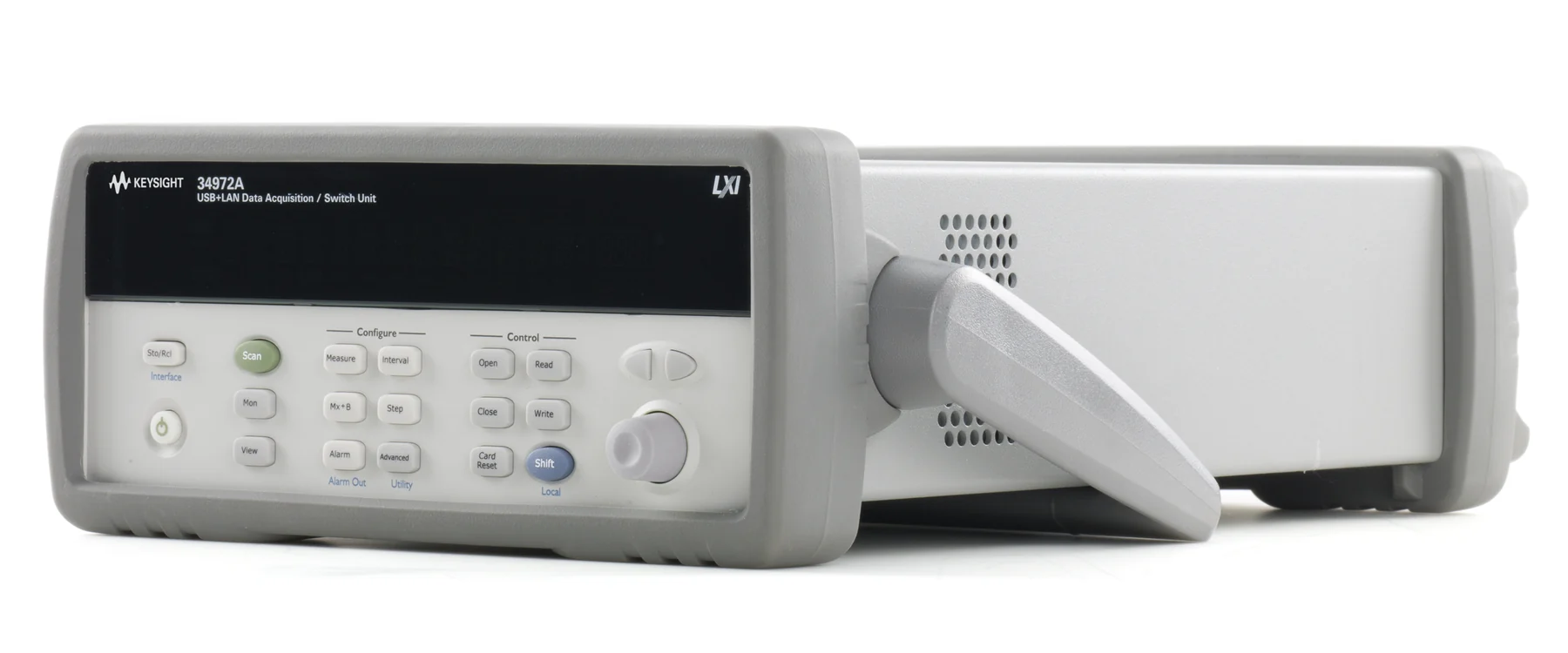

Keysight positions the 34972A as an LXI data acquisition/switch unit for long-term measurement logging. It is part of the 34970A and 34972A Data Acquisition Systems. Model-specific evidence confirms module slot: 3 slots, built-in DMM resolution: 6½ bits (22 bits), maximum channel scan speed: 250 channels/s, maximum channel capacity: Up to 60 2-wire channels, and communication interface: LAN, USB, supporting engineering work such as environmental and process monitoring and multi-channel laboratory data acquisition. Exact options, interfaces, accessories, calibration scope, and regional availability depend on the ordered configuration and should be confirmed before purchase.
Key Features

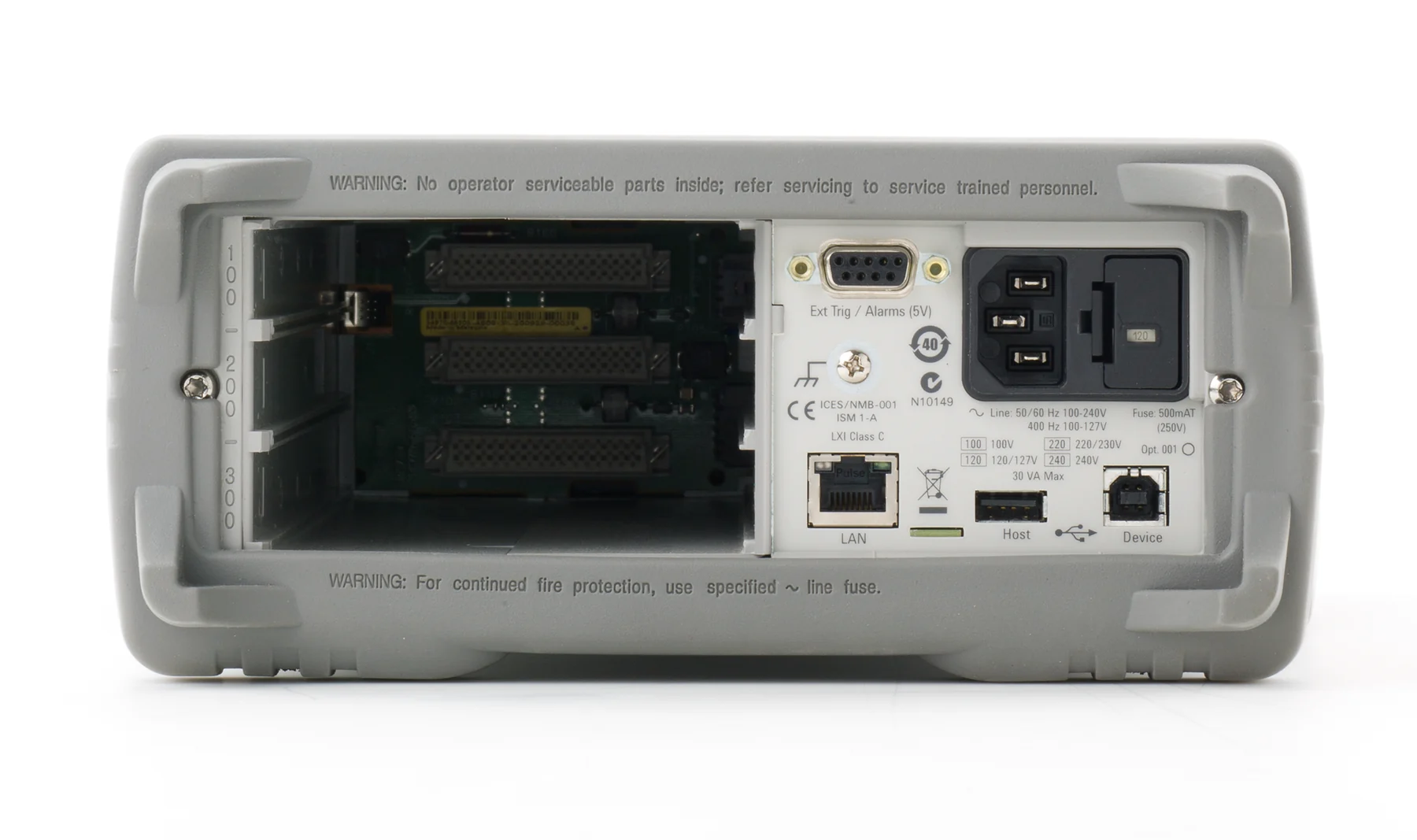

- Module slot: 3 slots.
- Built-in DMM resolution: 6½ bits (22 bits).
- Maximum channel scan speed: 250 channels/s.
- Maximum channel capacity: Up to 60 2-wire channels.
- Communication interface: LAN, USB.
- Module selection: 8 3490xA plug-in modules.
Technical Specifications
| Module slot | 3 slots |
|---|---|
| Built-in DMM resolution | 6½ bits (22 bits) |
| Maximum channel scan speed | 250 channels/s |
| Maximum channel capacity | Up to 60 2-wire channels |
| Communication interface | LAN, USB |
| Module selection | 8 3490xA plug-in modules |
| data storage | 50,000 readings (recording expandable with USB flash drive) |
| product status | Discontinued |
Typical Applications
- Long-term measurement logging
- Environmental and process monitoring
- Multi-channel laboratory data acquisition
Selection Notes
The first configuration checks for the Keysight 34972A are module slot (3 slots) and built-in DMM resolution (6½ bits (22 bits)). For a complete selection, check channel capacity, scan rate, supported sensor types, measurement accuracy, storage, and remote connectivity. Confirm regional availability, calibration scope, included items, and delivery requirements before ordering.
Frequently Asked Questions
What is the Keysight 34972A?
The Keysight 34972A is an LXI data acquisition/switch unit intended for professional test and measurement applications.
What are key specifications of the 34972A?
Key verified specifications include module slot: 3 slots and built-in DMM resolution: 6½ bits (22 bits). Review the full table for model-specific details.
How should I specify the Keysight 34972A for quotation?
State the measurement requirement, selected options, quantity, destination, and calibration or accessory needs. Hoyu Instruments will use those details to confirm the configuration before quoting.
