Description
Product Overview

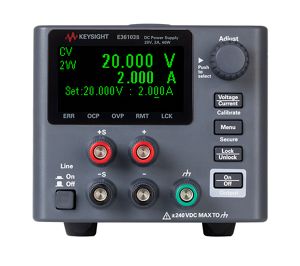

The verified specification set for the Keysight E36103B covers output channel: 1, maximum output voltage: 20 V, maximum output current: 2 A, maximum output power: 40 W, and chassis size: 2U, 1/4 rack width. As a single-output programmable benchtop DC power supply, it is suited to laboratory circuit development, with related use in component and device testing and bench and production power delivery. It is part of the E36100B Series Programmable Bench DC Power Supplies. Exact options, interfaces, accessories, calibration scope, and regional availability depend on the ordered configuration and should be confirmed before purchase.
Key Features
- Output channel: 1.
- Maximum output voltage: 20 V.
- Maximum output current: 2 A.
- Maximum output power: 40 W.
- Chassis size: 2U, 1/4 rack width.

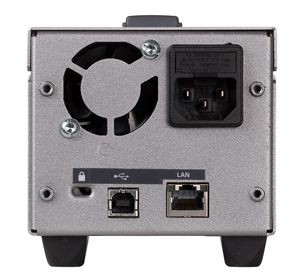

- Remote interface: LAN(LXI Core), USB.
Technical Specifications
| Output channel | 1 |
|---|---|
| Maximum output voltage | 20 V |
| Maximum output current | 2 A |
| Maximum output power | 40 W |
| Chassis size | 2U, 1/4 rack width |
| remote interface | LAN(LXI Core), USB |
| Display | OLED |
Typical Applications
- Laboratory circuit development
- Component and device testing
- Bench and production power delivery
Selection Notes
Evaluate whether the Keysight E36103B meets the application by comparing output channel (1) and maximum output voltage (20 V). In addition, confirm the required output voltage, current, power, channel count, transient response, remote sensing, and control interfaces. Confirm regional availability, calibration scope, included items, and delivery requirements before ordering.
Frequently Asked Questions
What is the Keysight E36103B?
The Keysight E36103B is a single-output programmable benchtop DC power supply intended for professional test and measurement applications.
What are key specifications of the E36103B?
Key verified specifications include output channel: 1 and maximum output voltage: 20 V. Review the full table for model-specific details.
Can Hoyu Instruments quote a configured Keysight E36103B?
Yes. Supply the required options, interfaces, accessories, calibration scope, quantity, and destination so Hoyu Instruments can prepare a configuration-specific quotation.
