Description
Product Overview

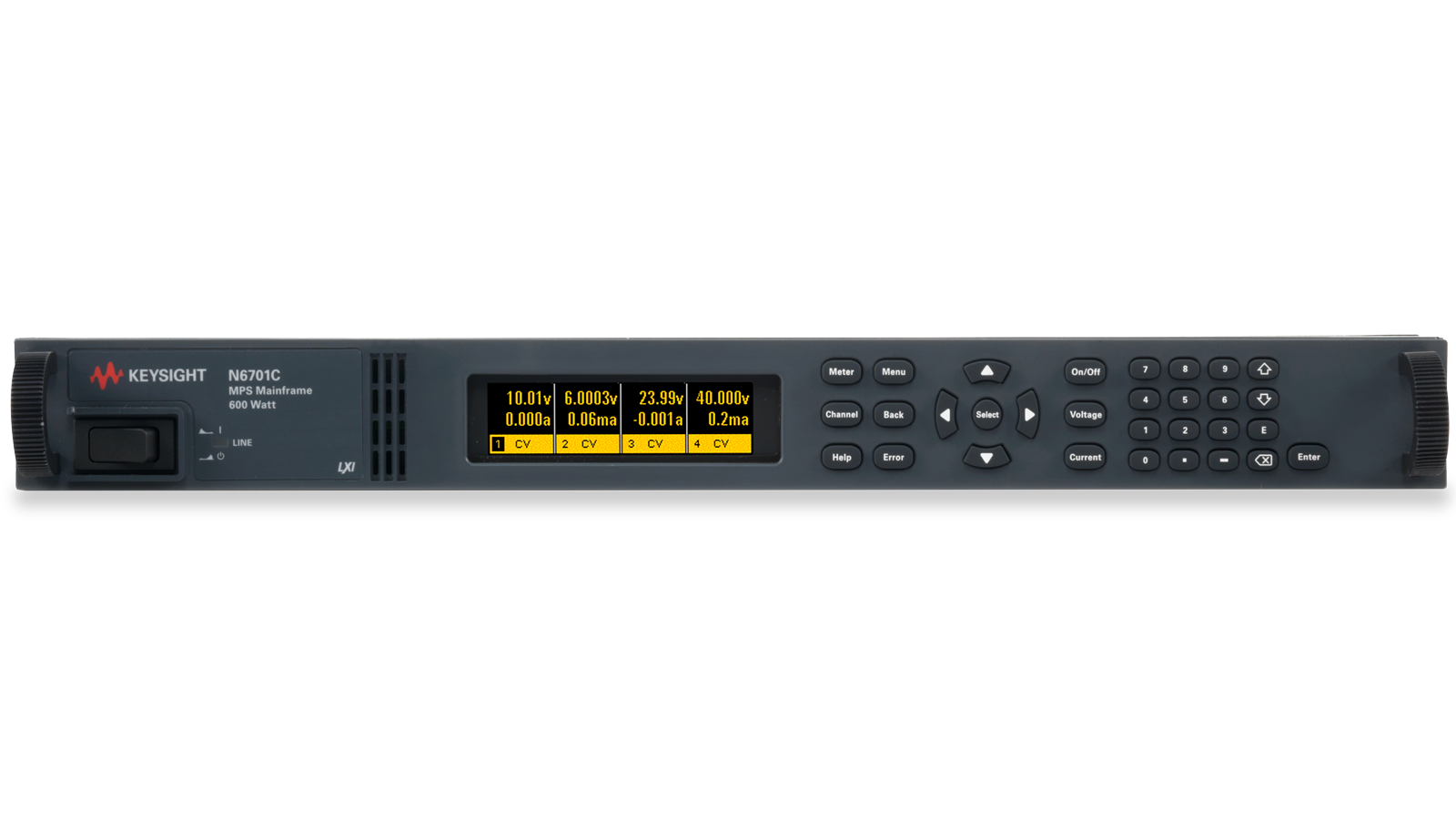

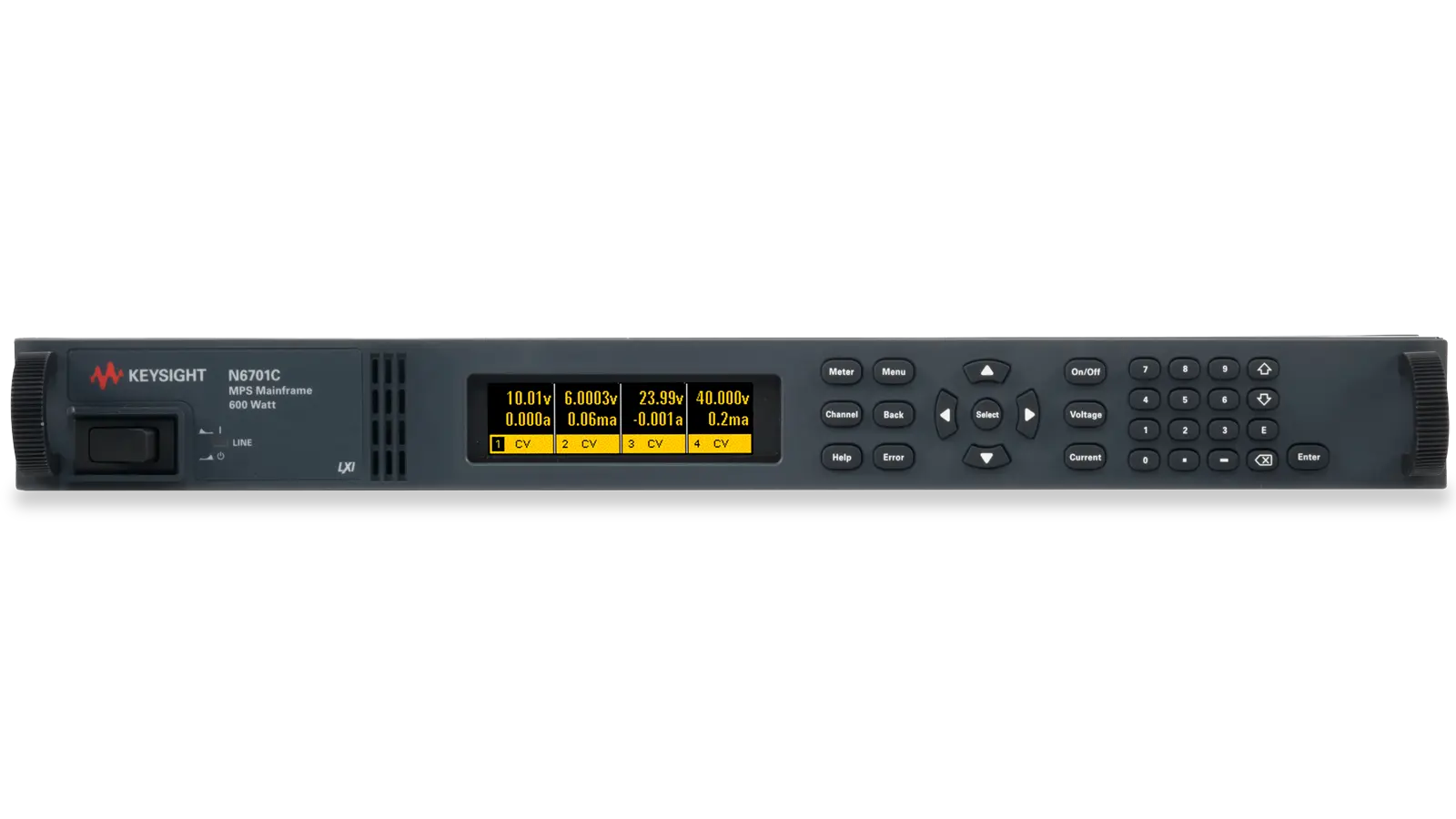

For multi-channel power system integration, the Keysight N6701C combines chassis form: 1U, 4 slots, total module power: 600 W, AC input power description: 600 W total module power available from 100 to 240 VAC inputs, number of compatible modules: 1 to 4 N6700 series modules, and remote interface: GPIB, LAN, USB; LXI in a low-profile modular power system mainframe platform. It is part of the N6700 Modular Power System. It can also be evaluated for automated device validation and modular laboratory and production testing. Exact options, interfaces, accessories, calibration scope, and regional availability depend on the ordered configuration and should be confirmed before purchase.
Key Features
- Chassis form: 1U, 4 slots.
- Total module power: 600 W.
- AC input power description: 600 W total module power available from 100 to 240 VAC inputs.
- Number of compatible modules: 1 to 4 N6700 series modules.
- Remote interface: GPIB, LAN, USB; LXI.
Technical Specifications
| Chassis form | 1U, 4 slots |
|---|---|
| Total module power | 600 W |
| AC input power description | 600 W total module power available from 100 to 240 VAC inputs |
| Number of compatible modules | 1 to 4 N6700 series modules |
| remote interface | GPIB, LAN, USB; LXI |
Typical Applications
- Multi-channel power system integration
- Automated device validation
- Modular laboratory and production testing
Selection Notes
Start selection of the Keysight N6701C by checking the verified chassis form (1U, 4 slots) and total module power (600 W). Then verify mainframe compatibility, module combinations, channel isolation, aggregate power, sequencing, and trigger or control requirements. Confirm regional availability, calibration scope, included items, and delivery requirements before ordering.
Frequently Asked Questions
What is the Keysight N6701C?
The Keysight N6701C is a low-profile modular power system mainframe intended for professional test and measurement applications.
What are key specifications of the N6701C?
Key verified specifications include chassis form: 1U, 4 slots and total module power: 600 W. Review the full table for model-specific details.
What information is needed to quote the N6701C?
Provide the intended application, configuration or options, quantity, delivery country, and any calibration or accessory requirements so the quotation can be checked accurately.
