Description
Product Overview

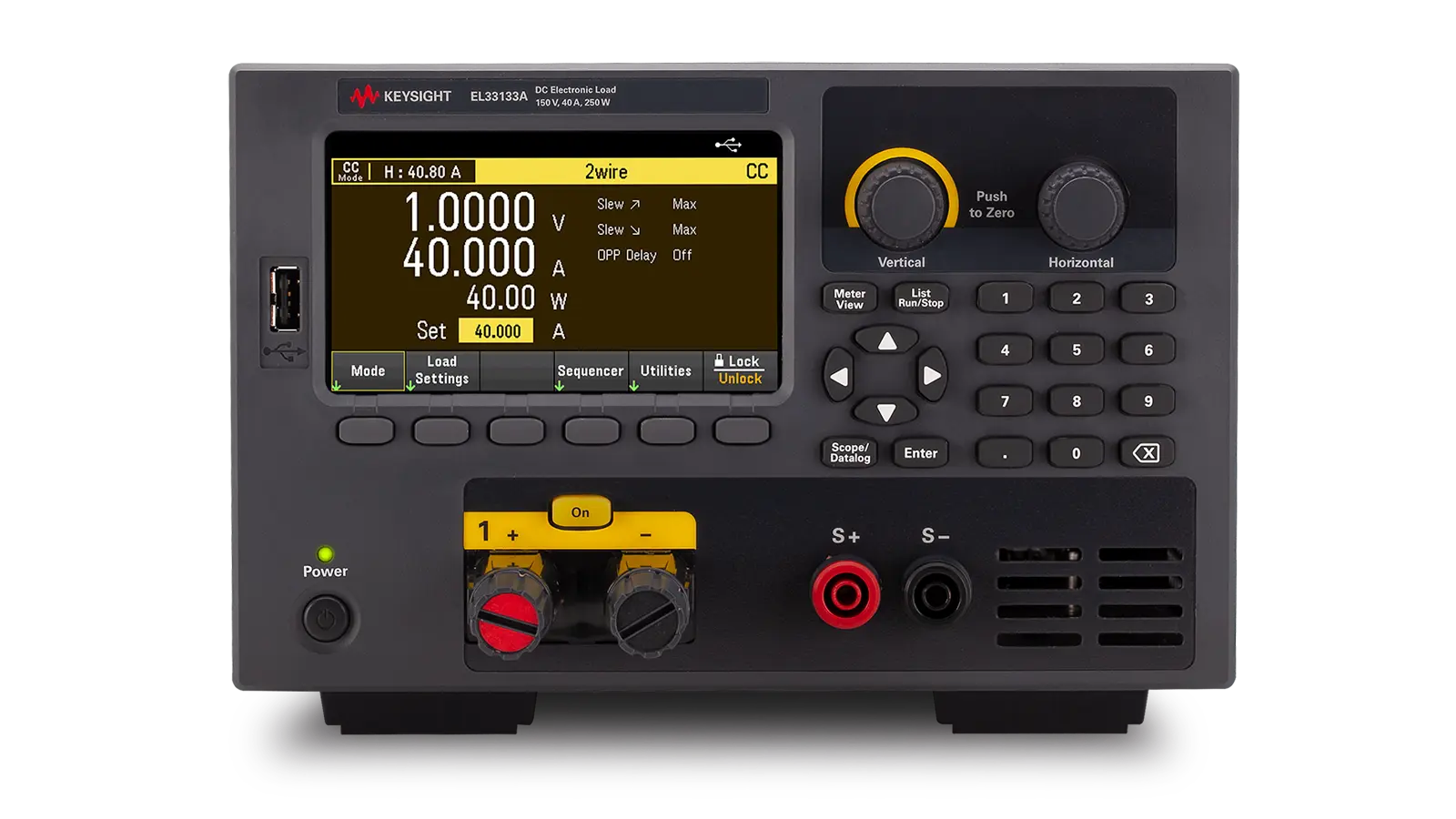

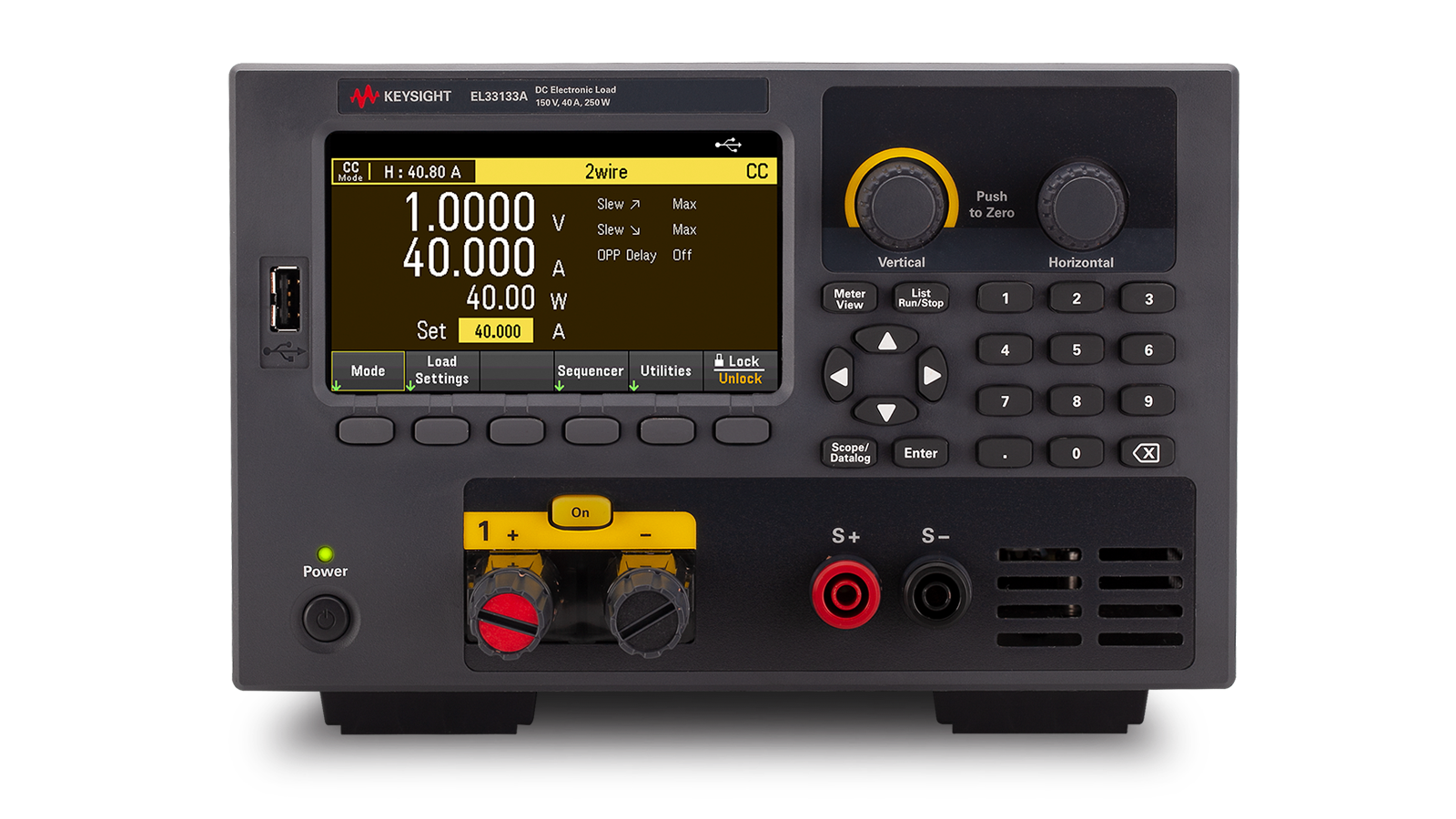

The Keysight EL33133A is a benchtop DC electronic load specified for power supply and converter testing. It is part of the EL30000 Series Bench DC Electronic Loads. Verified model data includes input channel: 1, maximum input voltage: 150 V, maximum input current: 40 A, maximum absorbed power: 250 W, and form factor: Benchtop. The same capabilities support battery and energy storage evaluation and automated power test systems. Exact options, interfaces, accessories, calibration scope, and regional availability depend on the ordered configuration and should be confirmed before purchase.
Key Features
- Input channel: 1.
- Maximum input voltage: 150 V.
- Maximum input current: 40 A.
- Maximum absorbed power: 250 W.
- Form factor: Benchtop.
- Load mode: CC, CV, CR, CP, etc..
Technical Specifications
| Input channel | 1 |
|---|---|
| Maximum input voltage | 150 V |
| Maximum input current | 40 A |
| Maximum absorbed power | 250 W |
| Form factor | Benchtop |
| load mode | CC, CV, CR, CP, etc. |
| energy processing | Internal dissipation, no feedback |
Typical Applications
- Power supply and converter testing
- Battery and energy storage evaluation
- Automated power test systems
Selection Notes
For the Keysight EL33133A, match the voltage, current and power envelope, operating modes, transient capability, channel configuration, and protection limits. Use the verified input channel (1) and maximum input voltage (150 V) as initial selection checks. Confirm regional availability, calibration scope, included items, and delivery requirements before ordering.
Frequently Asked Questions
What is the Keysight EL33133A?
The Keysight EL33133A is a benchtop DC electronic load intended for professional test and measurement applications.
What are key specifications of the EL33133A?
Key verified specifications include input channel: 1 and maximum input voltage: 150 V. Review the full table for model-specific details.
How can I request a quote for the Keysight EL33133A?
Send the required configuration, quantity, destination, and calibration or accessory requirements to Hoyu Instruments for a detailed quotation.
