Description
Product Overview

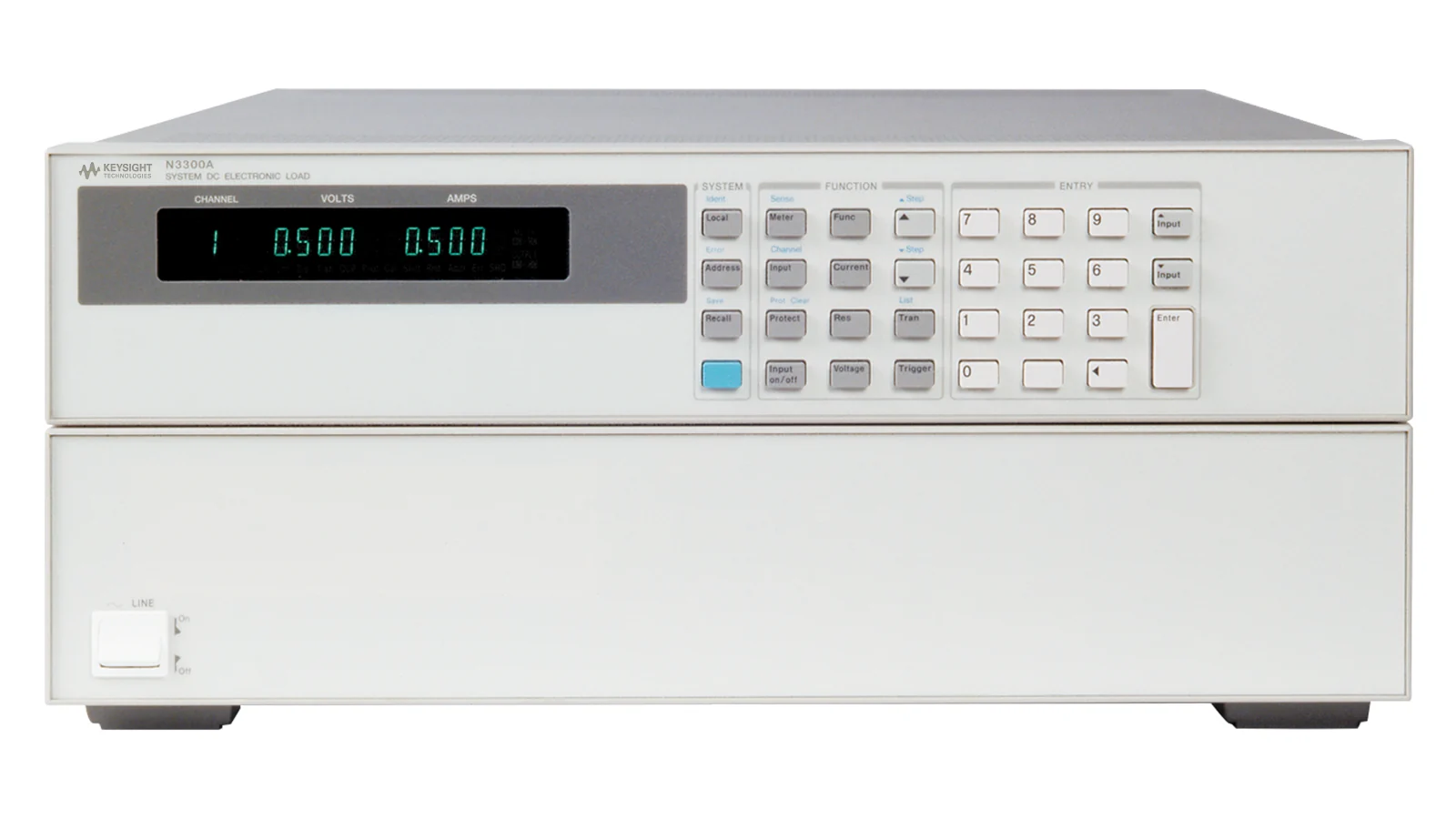

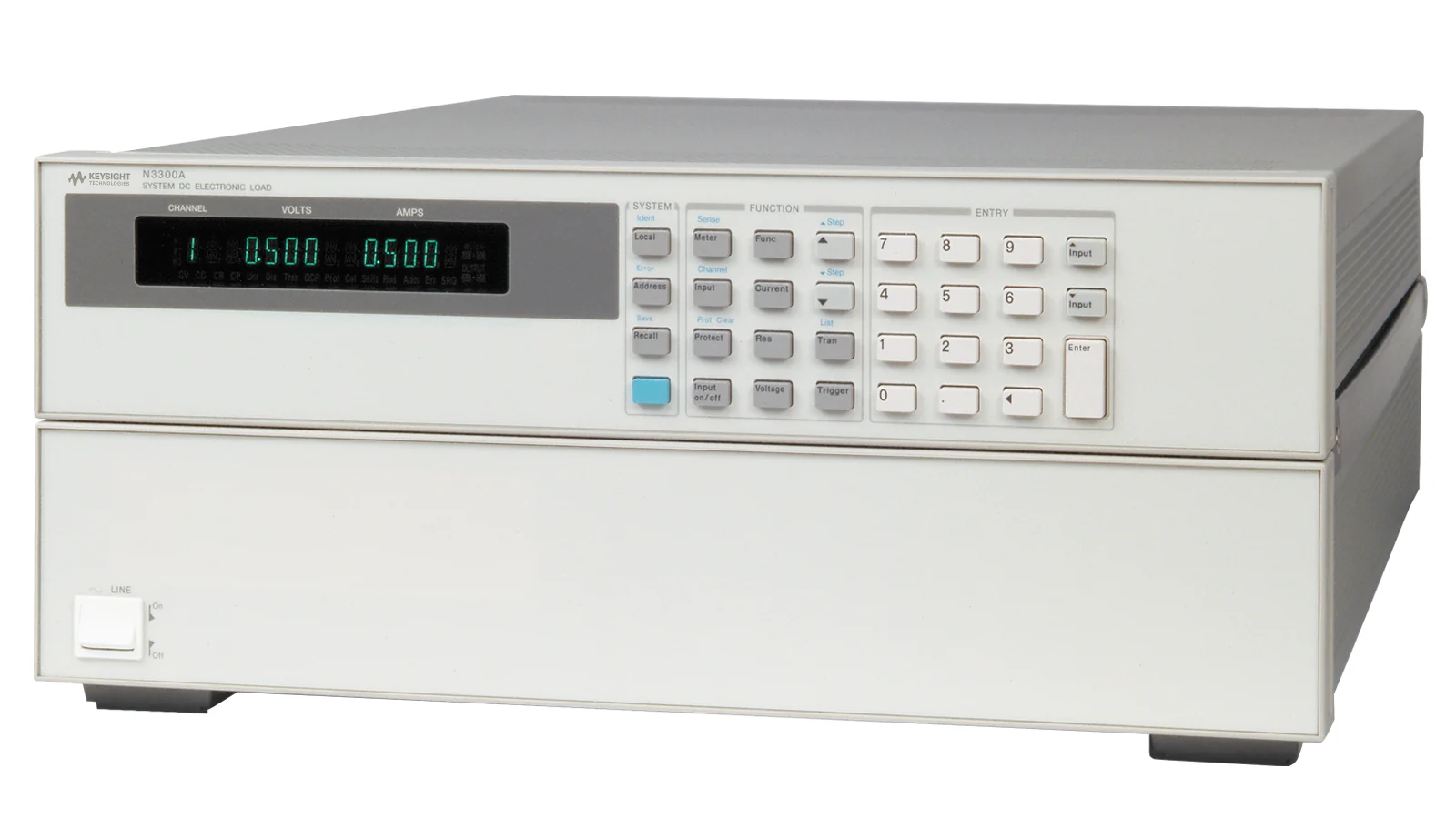

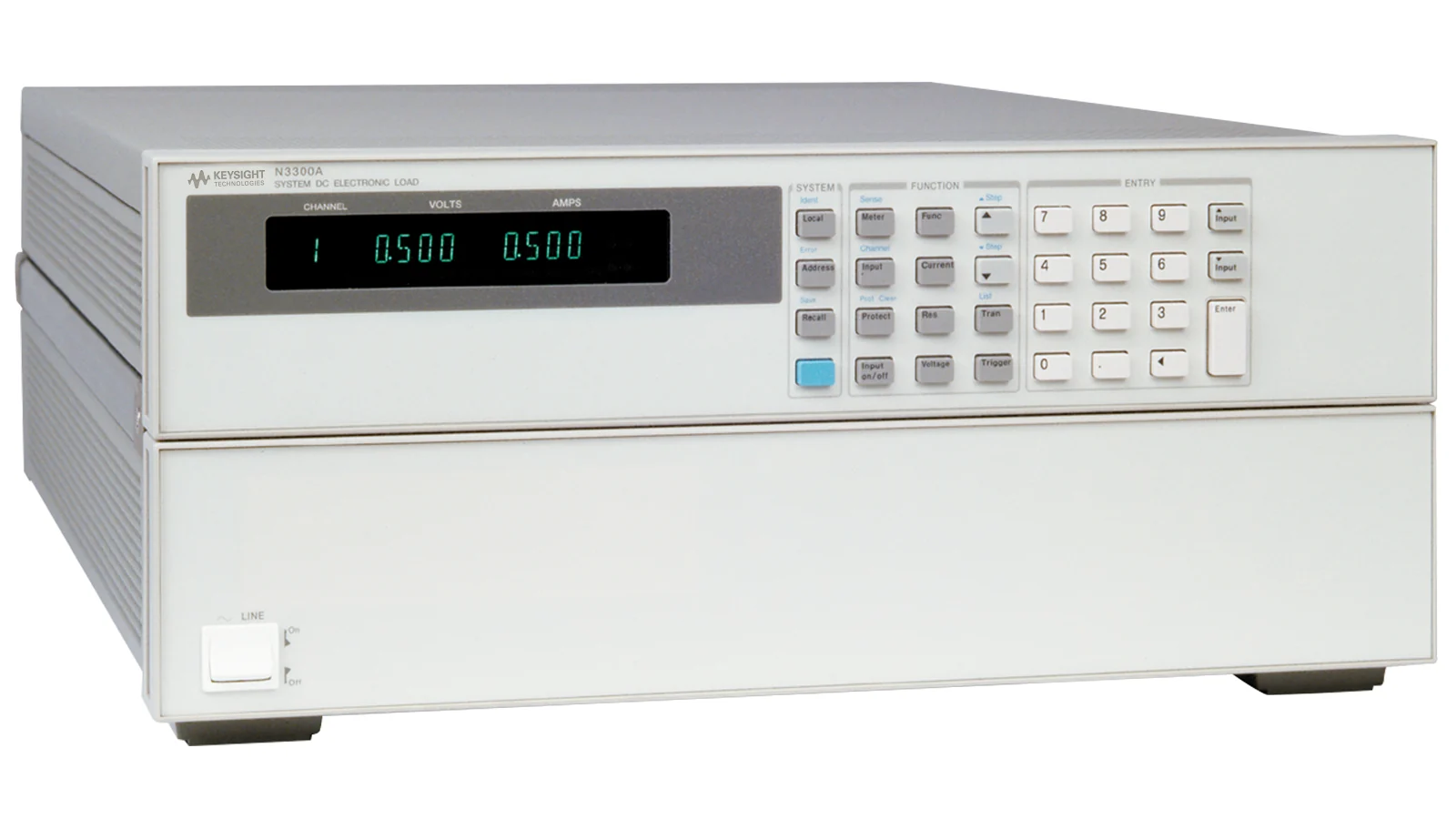

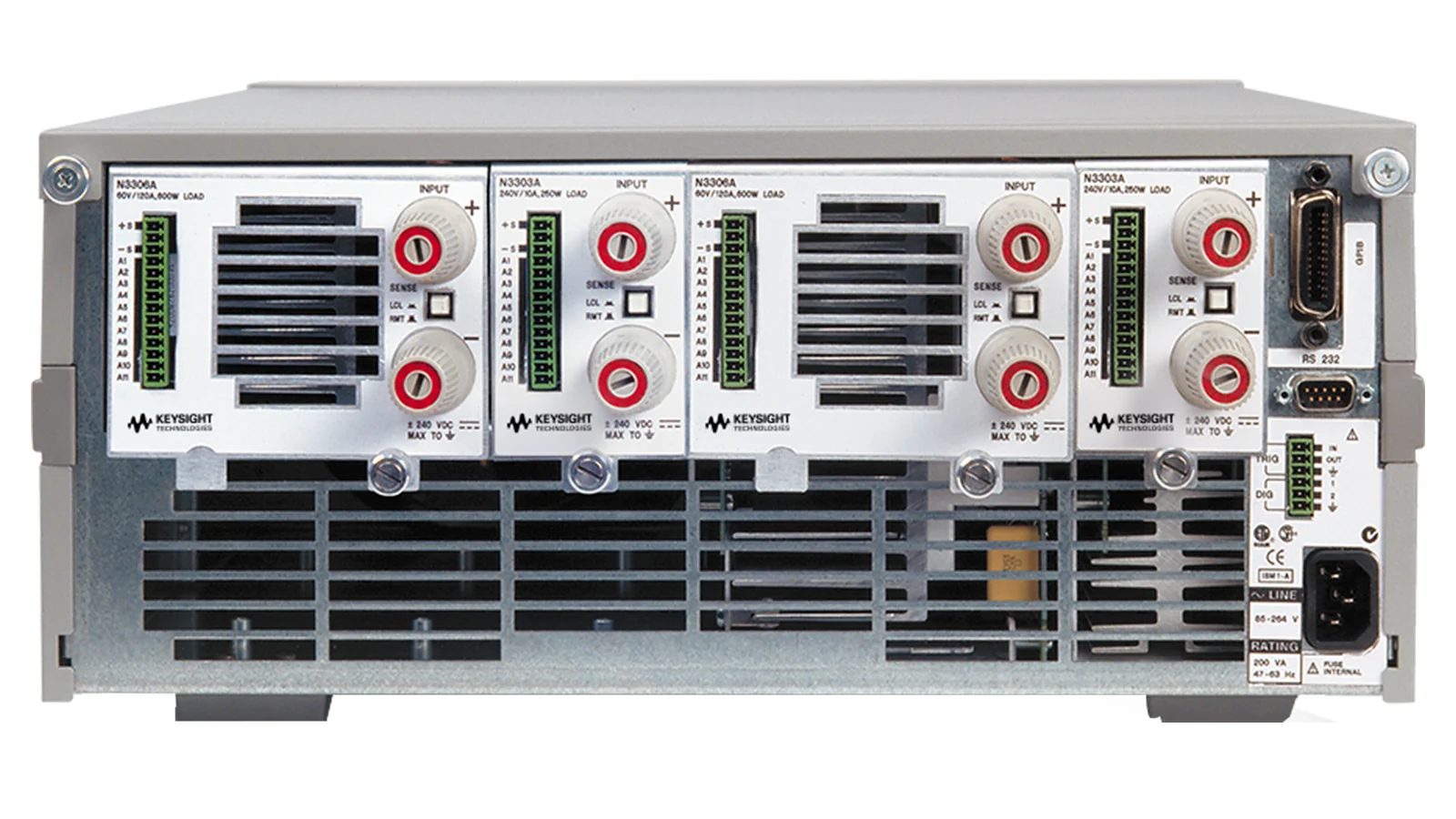

Keysight positions the N3305A as a modular DC electronic load for power supply and converter testing. It is part of the N3300 Series Modular DC Electronic Loads. Model-specific evidence confirms input channel: 1, maximum input voltage: 150 V, maximum input current: 60 A, maximum absorbed power: 500 W, and form factor: plug-in module, supporting engineering work such as battery and energy storage evaluation and automated power test systems. Exact options, interfaces, accessories, calibration scope, and regional availability depend on the ordered configuration and should be confirmed before purchase.
Key Features
- Input channel: 1.
- Maximum input voltage: 150 V.
- Maximum input current: 60 A.
- Maximum absorbed power: 500 W.
- Form factor: plug-in module.
- Load mode: CC, CV, CR, CP, etc..
Technical Specifications
| Input channel | 1 |
|---|---|
| Maximum input voltage | 150 V |
| Maximum input current | 60 A |
| Maximum absorbed power | 500 W |
| Form factor | plug-in module |
| load mode | CC, CV, CR, CP, etc. |
| energy processing | Internal dissipation, no feedback |
Typical Applications
- Power supply and converter testing
- Battery and energy storage evaluation
- Automated power test systems
Selection Notes
The first configuration checks for the Keysight N3305A are input channel (1) and maximum input voltage (150 V). For a complete selection, match the voltage, current and power envelope, operating modes, transient capability, channel configuration, and protection limits. Confirm regional availability, calibration scope, included items, and delivery requirements before ordering.
Frequently Asked Questions
What is the Keysight N3305A?
The Keysight N3305A is a modular DC electronic load intended for professional test and measurement applications.
What are key specifications of the N3305A?
Key verified specifications include input channel: 1 and maximum input voltage: 150 V. Review the full table for model-specific details.
How should I specify the Keysight N3305A for quotation?
State the measurement requirement, selected options, quantity, destination, and calibration or accessory needs. Hoyu Instruments will use those details to confirm the configuration before quoting.
