Description
Product Overview

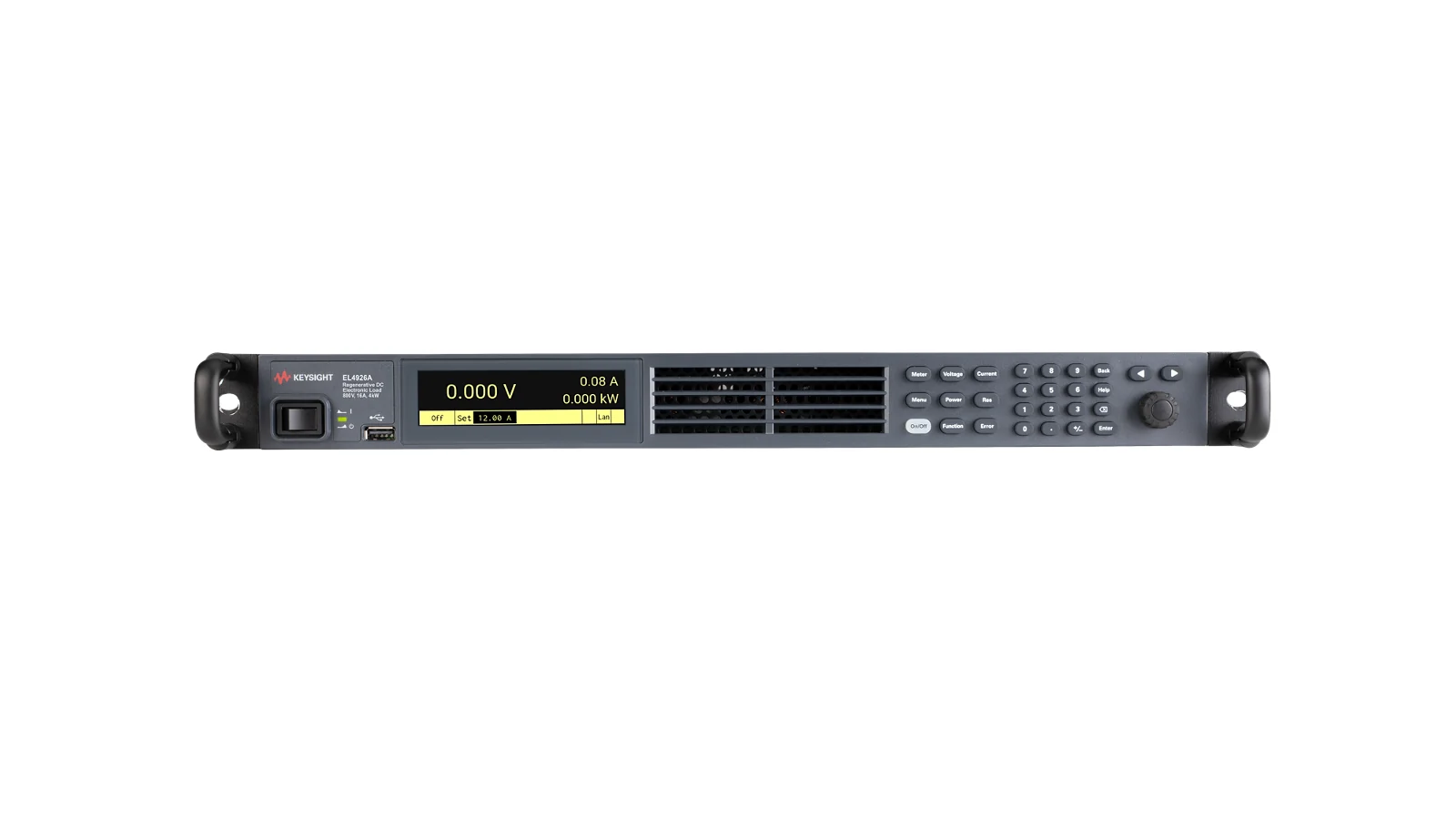

For power supply and converter testing, the Keysight EL4926A combines input channel: 1, maximum input voltage: 800 V, maximum input current: 16 A, maximum absorbed power: 4 kW, and form factor: 1U in a regenerative DC electronic load platform. It is part of the EL4900 Series Regenerative DC Electronic Loads. It can also be evaluated for battery and energy storage evaluation and automated power test systems. Exact options, interfaces, accessories, calibration scope, and regional availability depend on the ordered configuration and should be confirmed before purchase.
Key Features
- Input channel: 1.
- Maximum input voltage: 800 V.
- Maximum input current: 16 A.
- Maximum absorbed power: 4 kW.
- Form factor: 1U.
- Load mode: CC, CV, CR, CP, etc..
Technical Specifications
| Input channel | 1 |
|---|---|
| Maximum input voltage | 800 V |
| Maximum input current | 16 A |
| Maximum absorbed power | 4 kW |
| Form factor | 1U |
| load mode | CC, CV, CR, CP, etc. |
| energy processing | Feedback to the AC grid |
Typical Applications
- Power supply and converter testing
- Battery and energy storage evaluation
- Automated power test systems
Selection Notes
Start selection of the Keysight EL4926A by checking the verified input channel (1) and maximum input voltage (800 V). Then match the voltage, current and power envelope, operating modes, transient capability, channel configuration, and protection limits. Confirm regional availability, calibration scope, included items, and delivery requirements before ordering.
Frequently Asked Questions
What is the Keysight EL4926A?
The Keysight EL4926A is a regenerative DC electronic load intended for professional test and measurement applications.
What are key specifications of the EL4926A?
Key verified specifications include input channel: 1 and maximum input voltage: 800 V. Review the full table for model-specific details.
What information is needed to quote the EL4926A?
Provide the intended application, configuration or options, quantity, delivery country, and any calibration or accessory requirements so the quotation can be checked accurately.
