Description
Product Overview

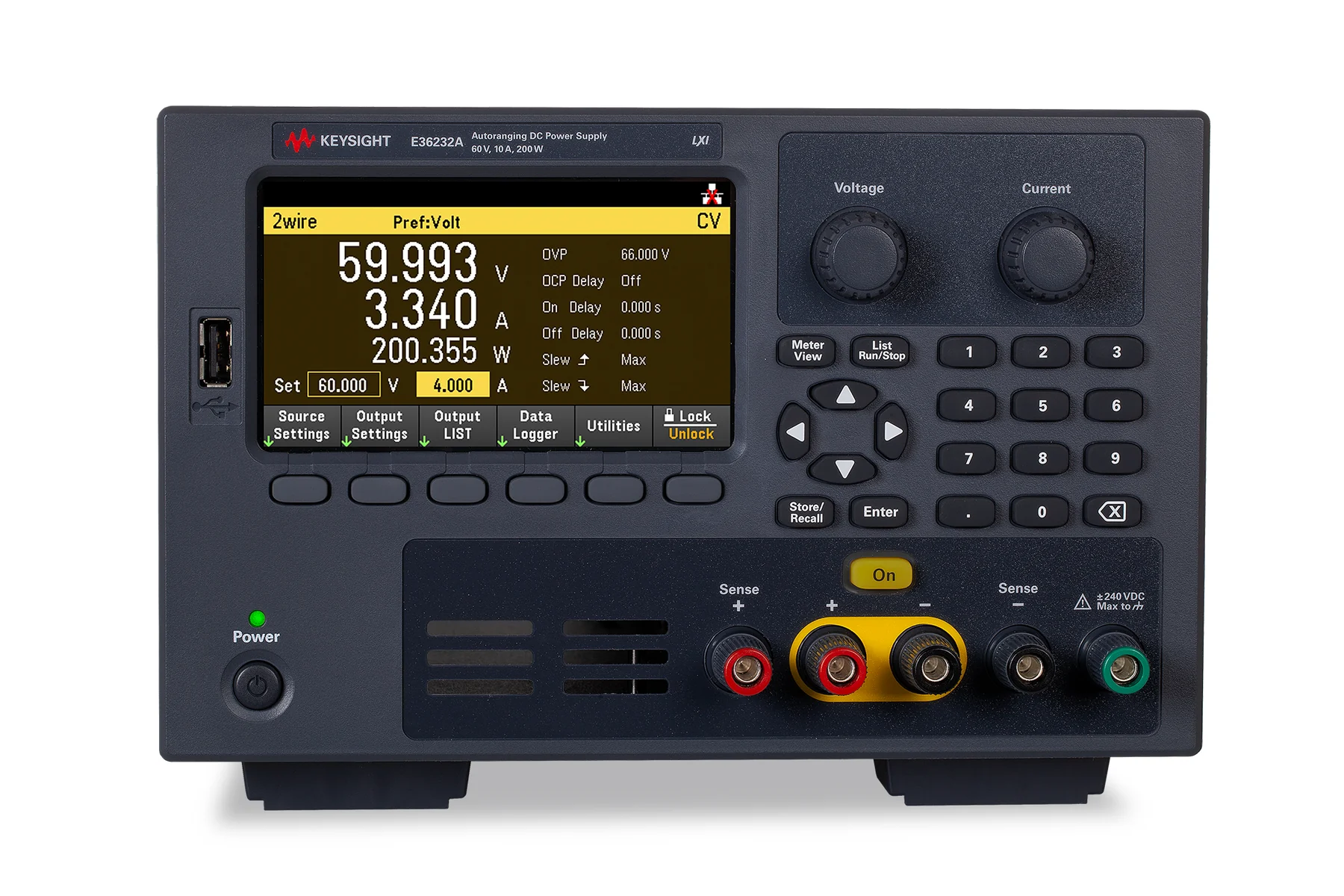

Keysight positions the E36232A as a single-channel auto-ranging DC power supply for laboratory circuit development. It is part of the E36200 Series Autoranging Bench DC Power Supplies. Model-specific evidence confirms output channel: 1, rated output: 60 V, 10 A, 200 W, channel combination: Not applicable, display: 4.3-inch color LCD, and remote interface: LAN/LXI, USB; GPIB option, supporting engineering work such as component and device testing and bench and production power delivery. Exact options, interfaces, accessories, calibration scope, and regional availability depend on the ordered configuration and should be confirmed before purchase.
Key Features
- Output channel: 1.
- Rated output: 60 V, 10 A, 200 W.
- Channel combination: Not applicable.
- Display: 4.3-inch color LCD.
- Remote interface: LAN/LXI, USB; GPIB option.
- Advanced features: Data logging, LIST, output timing, adjustable slew rate, and four-wire remote sensing.
Technical Specifications
| Output channel | 1 |
|---|---|
| Rated output | 60 V, 10 A, 200 W |
| Channel combination | Not applicable |
| Display | 4.3-inch color LCD |
| remote interface | LAN/LXI, USB; GPIB option |
| Advanced features | Data logging, LIST, output timing, adjustable slew rate, and four-wire remote sensing |
Typical Applications
- Laboratory circuit development
- Component and device testing
- Bench and production power delivery
Selection Notes
The first configuration checks for the Keysight E36232A are output channel (1) and rated output (60 V, 10 A, 200 W). For a complete selection, confirm the required output voltage, current, power, channel count, transient response, remote sensing, and control interfaces. Confirm regional availability, calibration scope, included items, and delivery requirements before ordering.
Frequently Asked Questions
What is the Keysight E36232A?
The Keysight E36232A is a single-channel auto-ranging DC power supply intended for professional test and measurement applications.
What are key specifications of the E36232A?
Key verified specifications include output channel: 1 and rated output: 60 V, 10 A, 200 W. Review the full table for model-specific details.
How should I specify the Keysight E36232A for quotation?
State the measurement requirement, selected options, quantity, destination, and calibration or accessory needs. Hoyu Instruments will use those details to confirm the configuration before quoting.
