Description
Product Overview

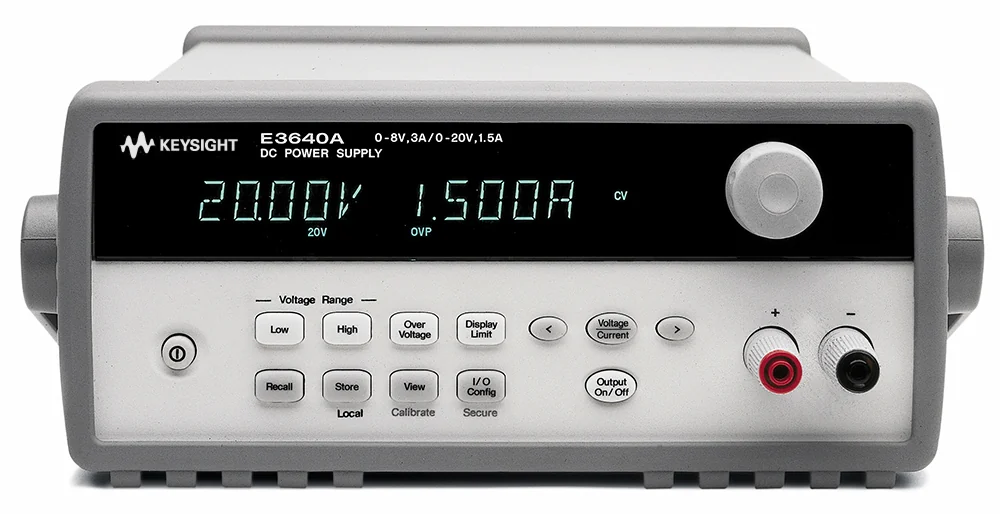

The verified specification set for the Keysight E3640A covers output channel: 1, rated output: 0–8 V, 0–3 A or 0–20 V, 0–1.5 A, 30 W, range/channel characteristics: Each channel provides two ranges: low voltage and large current and high voltage and small current; the maximum voltage and maximum current of the two ranges cannot be cross-combined, remote interface: GPIB (IEEE-488) and RS-232, and ripple and Noise: Low ripple, low noise linear output. As a single-channel programmable dual-range DC power supply, it is suited to laboratory circuit development, with related use in component and device testing and bench and production power delivery. It is part of the E3640 Series Bench DC Power Supplies. Exact options, interfaces, accessories, calibration scope, and regional availability depend on the ordered configuration and should be confirmed before purchase.
Key Features
- Output channel: 1.
- Rated output: 0–8 V, 0–3 A or 0–20 V, 0–1.5 A, 30 W.
- Range/channel characteristics: Each channel provides two ranges: low voltage and large current and high voltage and small current; the maximum voltage and maximum current of the two ranges cannot be cross-combined..
- Remote interface: GPIB (IEEE-488) and RS-232.
- Ripple and Noise: Low ripple, low noise linear output.
- Control and readback: Setup and readback via front panel or GPIB/RS-232, suitable for repetitive testing and legacy ATE system integration.
Technical Specifications
| Output channel | 1 |
|---|---|
| Rated output | 0–8 V, 0–3 A or 0–20 V, 0–1.5 A, 30 W |
| Range/channel characteristics | Each channel provides two ranges: low voltage and large current and high voltage and small current; the maximum voltage and maximum current of the two ranges cannot be cross-combined. |
| remote interface | GPIB (IEEE-488) and RS-232 |
| Ripple and Noise | Low ripple, low noise linear output |
| Control and readback | Setup and readback via front panel or GPIB/RS-232, suitable for repetitive testing and legacy ATE system integration |
Typical Applications
- Laboratory circuit development
- Component and device testing
- Bench and production power delivery
Selection Notes
Evaluate whether the Keysight E3640A meets the application by comparing output channel (1) and rated output (0–8 V, 0–3 A or 0–20 V, 0–1.5 A, 30 W). In addition, confirm the required output voltage, current, power, channel count, transient response, remote sensing, and control interfaces. Confirm regional availability, calibration scope, included items, and delivery requirements before ordering.
Frequently Asked Questions
What is the Keysight E3640A?
The Keysight E3640A is a single-channel programmable dual-range DC power supply intended for professional test and measurement applications.
What are key specifications of the E3640A?
Key verified specifications include output channel: 1 and rated output: 0–8 V, 0–3 A or 0–20 V, 0–1.5 A, 30 W. Review the full table for model-specific details.
Can Hoyu Instruments quote a configured Keysight E3640A?
Yes. Supply the required options, interfaces, accessories, calibration scope, quantity, and destination so Hoyu Instruments can prepare a configuration-specific quotation.
