Description
Product Overview

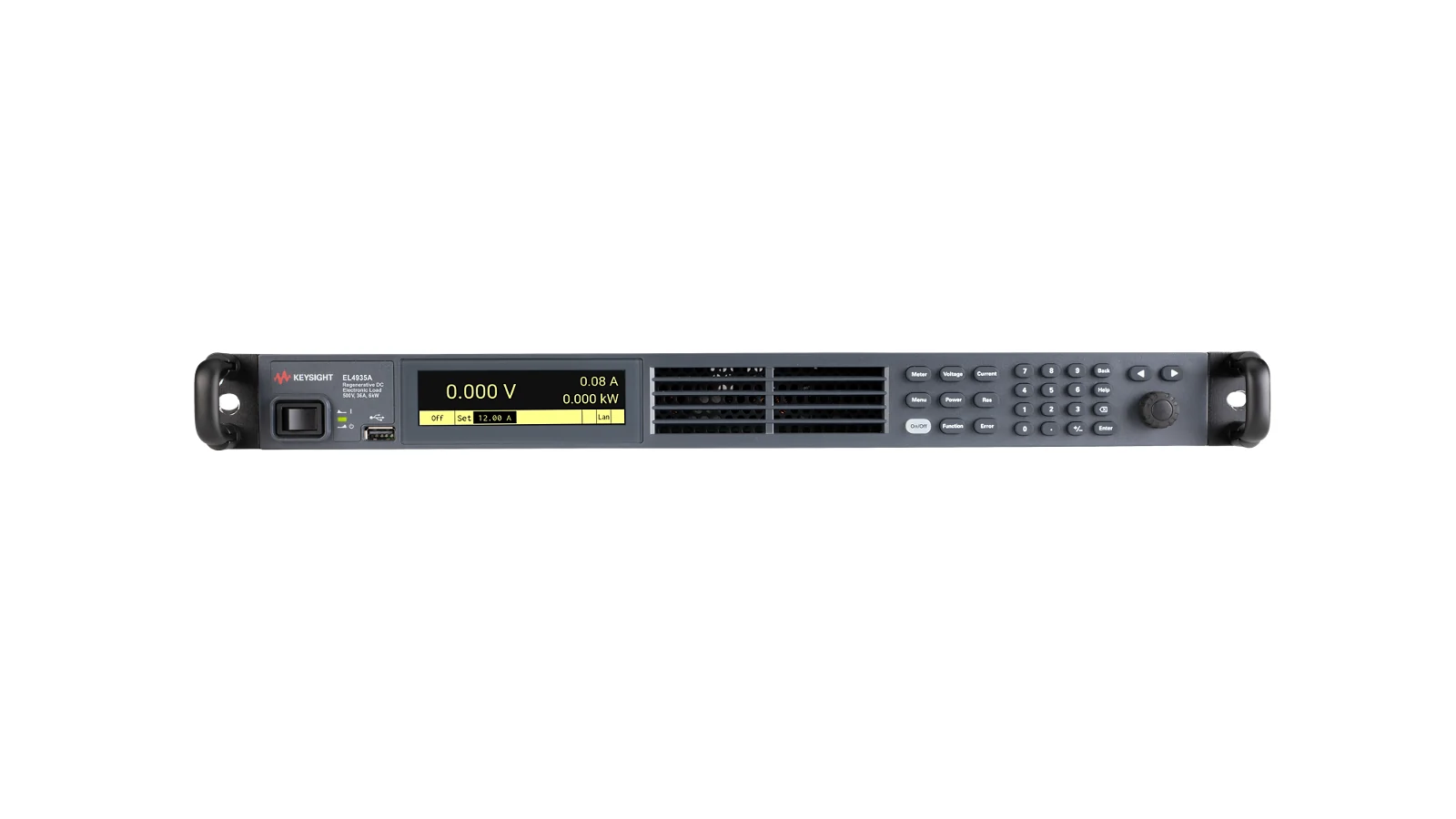

The verified specification set for the Keysight EL4935A covers input channel: 1, maximum input voltage: 500 V, maximum input current: 36 A, maximum absorbed power: 6 kW, and form factor: 1U. As a regenerative DC electronic load, it is suited to power supply and converter testing, with related use in battery and energy storage evaluation and automated power test systems. It is part of the EL4900 Series Regenerative DC Electronic Loads. Exact options, interfaces, accessories, calibration scope, and regional availability depend on the ordered configuration and should be confirmed before purchase.
Key Features
- Input channel: 1.
- Maximum input voltage: 500 V.
- Maximum input current: 36 A.
- Maximum absorbed power: 6 kW.
- Form factor: 1U.
- Load mode: CC, CV, CR, CP, etc..
Technical Specifications
| Input channel | 1 |
|---|---|
| Maximum input voltage | 500 V |
| Maximum input current | 36 A |
| Maximum absorbed power | 6 kW |
| Form factor | 1U |
| load mode | CC, CV, CR, CP, etc. |
| energy processing | Feedback to the AC grid |
Typical Applications
- Power supply and converter testing
- Battery and energy storage evaluation
- Automated power test systems
Selection Notes
Evaluate whether the Keysight EL4935A meets the application by comparing input channel (1) and maximum input voltage (500 V). In addition, match the voltage, current and power envelope, operating modes, transient capability, channel configuration, and protection limits. Confirm regional availability, calibration scope, included items, and delivery requirements before ordering.
Frequently Asked Questions
What is the Keysight EL4935A?
The Keysight EL4935A is a regenerative DC electronic load intended for professional test and measurement applications.
What are key specifications of the EL4935A?
Key verified specifications include input channel: 1 and maximum input voltage: 500 V. Review the full table for model-specific details.
Can Hoyu Instruments quote a configured Keysight EL4935A?
Yes. Supply the required options, interfaces, accessories, calibration scope, quantity, and destination so Hoyu Instruments can prepare a configuration-specific quotation.
