Description
Product Overview

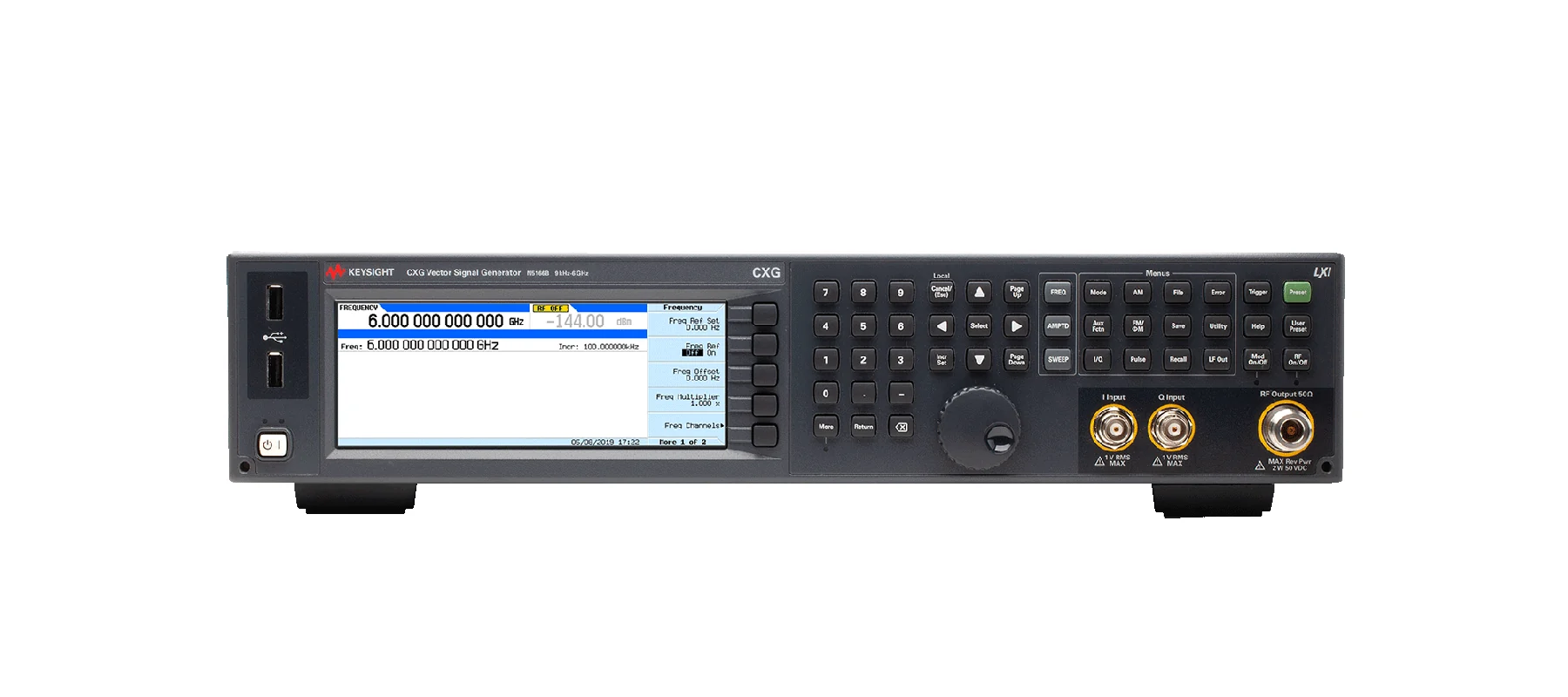

The Keysight N5166B is an RF vector signal generator specified for RF receiver and component testing. It is part of the X-Series Signal Generators. Verified model data includes frequency range: 9 kHz to 6 GHz, optional highest frequency: 3 or 6 GHz (by frequency option), 1 GHz output power: +18 dBm, 1 GHz, 20 kHz offset phase noise: −119 dBc/Hz, and 1 GHz harmonics: −35 dBc. The same capabilities support wireless design verification and production test stimulus generation. Exact options, interfaces, accessories, calibration scope, and regional availability depend on the ordered configuration and should be confirmed before purchase.
Key Features
- Frequency range: 9 kHz to 6 GHz.
- Optional highest frequency: 3 or 6 GHz (by frequency option).
- 1 GHz output power: +18 dBm.
- 1 GHz, 20 kHz offset phase noise: −119 dBc/Hz.
- 1 GHz harmonics: −35 dBc.
- Frequency switching speed: 5 ms.
Technical Specifications
| frequency range | 9 kHz to 6 GHz |
|---|---|
| Optional highest frequency | 3 or 6 GHz (by frequency option) |
| 1 GHz output power | +18 dBm |
| 1 GHz, 20 kHz offset phase noise | −119 dBc/Hz |
| 1 GHz harmonics | −35 dBc |
| Frequency switching speed | 5 ms |
| Number of outputs | 1 channel |
| Maximum RF modulation bandwidth | 120 MHz |
Typical Applications
- RF receiver and component testing
- Wireless design verification
- Production test stimulus generation
Selection Notes
For the Keysight N5166B, confirm frequency and output range, modulation bandwidth, phase noise, switching speed, reference options, and required software. Use the verified frequency range (9 kHz to 6 GHz) and optional highest frequency (3 or 6 GHz (by frequency option)) as initial selection checks. Confirm regional availability, calibration scope, included items, and delivery requirements before ordering.
Frequently Asked Questions
What is the Keysight N5166B?
The Keysight N5166B is an RF vector signal generator intended for professional test and measurement applications.
What are key specifications of the N5166B?
Key verified specifications include frequency range: 9 kHz to 6 GHz and optional highest frequency: 3 or 6 GHz (by frequency option). Review the full table for model-specific details.
How can I request a quote for the Keysight N5166B?
Send the required configuration, quantity, destination, and calibration or accessory requirements to Hoyu Instruments for a detailed quotation.
