Description
Product Overview

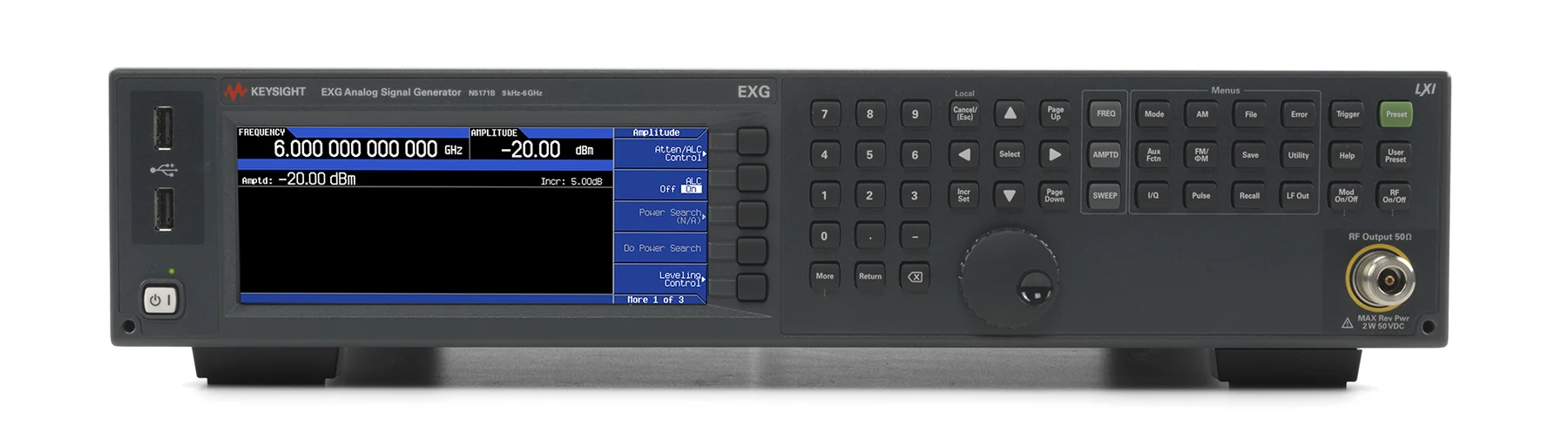

Keysight positions the N5171B as an RF analog signal generator for RF receiver and component testing. It is part of the X-Series Signal Generators. Model-specific evidence confirms frequency range: 9 kHz to 6 GHz, optional highest frequency: 1, 3 or 6 GHz (by frequency option), 1 GHz output power: +21 dBm, 1 GHz, 20 kHz offset phase noise: −122 dBc/Hz, and 1 GHz harmonics: −35 dBc, supporting engineering work such as wireless design verification and production test stimulus generation. Exact options, interfaces, accessories, calibration scope, and regional availability depend on the ordered configuration and should be confirmed before purchase.
Key Features
- Frequency range: 9 kHz to 6 GHz.
- Optional highest frequency: 1, 3 or 6 GHz (by frequency option).
- 1 GHz output power: +21 dBm.
- 1 GHz, 20 kHz offset phase noise: −122 dBc/Hz.
- 1 GHz harmonics: −35 dBc.
- Frequency switching speed: 800 µs.
Technical Specifications
| frequency range | 9 kHz to 6 GHz |
|---|---|
| Optional highest frequency | 1, 3 or 6 GHz (by frequency option) |
| 1 GHz output power | +21 dBm |
| 1 GHz, 20 kHz offset phase noise | −122 dBc/Hz |
| 1 GHz harmonics | −35 dBc |
| Frequency switching speed | 800 µs |
| Number of outputs | 1 channel |
Typical Applications
- RF receiver and component testing
- Wireless design verification
- Production test stimulus generation
Selection Notes
The first configuration checks for the Keysight N5171B are frequency range (9 kHz to 6 GHz) and optional highest frequency (1, 3 or 6 GHz (by frequency option)). For a complete selection, confirm frequency and output range, modulation bandwidth, phase noise, switching speed, reference options, and required software. Confirm regional availability, calibration scope, included items, and delivery requirements before ordering.
Frequently Asked Questions
What is the Keysight N5171B?
The Keysight N5171B is an RF analog signal generator intended for professional test and measurement applications.
What are key specifications of the N5171B?
Key verified specifications include frequency range: 9 kHz to 6 GHz and optional highest frequency: 1, 3 or 6 GHz (by frequency option). Review the full table for model-specific details.
How should I specify the Keysight N5171B for quotation?
State the measurement requirement, selected options, quantity, destination, and calibration or accessory needs. Hoyu Instruments will use those details to confirm the configuration before quoting.
